As global infrastructure investment continues to surge, the demand for reliable and efficient ground support systems has never been higher. Tunneling, mining, and slope stabilization projects increasingly encounter complex geological conditions—fractured rock, weak soils, and high groundwater pressure—where traditional anchoring methods often struggle with installation delays and inadequate load transfer. In response, SupAnchor, a leading manufacturer of self drilling anchor systems, has officially introduced the SupShell Expansion Rock Bolt System, an innovative geotechnical reinforcement system designed to deliver immediate anchorage, integrated grouting, and long-term corrosion protection in a single, cost-effective package.
The new system is engineered around a hollow bar anchor concept, incorporating a steel expansion shell that provides immediate mechanical anchorage upon installation. This feature is particularly valuable in tunneling and mining operations where early ground support is critical to maintaining excavation stability and ensuring crew safety. According to SupAnchor's technical team, the SupShell system has already been deployed in several international infrastructure projects, receiving positive feedback for its rapid installation and robust performance under demanding conditions.
The SupShell Expansion Rock Bolt System is available in five configurations to match a wide range of drilling diameters and ground conditions. The table below summarizes the key specifications for each model, all of which comply with the EN 10083 standard for steel quality and are manufactured from CK45 steel, a high-strength carbon steel known for its excellent toughness and wear resistance. Threads are cut to the ISO 10208 standard, ensuring compatibility with standard drilling and grouting equipment.
| Model | Specification | Outside Diameter (mm) | Drilling Hole Diameter (mm) | Length (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| R25 | R25/EX36 | 36 | Φ40-Φ42 | 132 | 0.62 |
| R28 | R28/EX40 | 40 | Φ44-Φ46 | 136 | 0.84 |
| R32 | R32/EX44 | 44 | Φ48-Φ50 | 135 | 0.82 |
| R32 | R32/EX46 | 46 | Φ50-Φ52 | 176 | 1.20 |
| R32 | R32/EX48 | 48 | Φ52-Φ54 | 165 | 1.45 |
The expansion shell design enables immediate anchorage without the need for curing time, drastically reducing installation time and allowing subsequent excavation phases to proceed without delay. In addition to mechanical interlock, the system supports both pre-grouting and post-grouting through a central hollow channel. Grout is injected from the bottom of the borehole and flows upward, completely filling the annular space and encapsulating the bolt. A plastic sealing element at the collar prevents grout or resin leakage, ensuring a full column of grout and enhancing the bond between the bolt and surrounding rock or soil. This combination of mechanical and chemical anchorage delivers superior load-bearing capacity and long-term durability.
All SupShell expansion shells are manufactured from CK45 steel, which offers an optimal balance of strength and ductility. For projects in aggressive environments, SupAnchor provides a galvanized option compliant with ISO 1461, offering robust corrosion protection that extends the service life of the anchor system. The threaded connection conforms to ISO 10208, allowing seamless integration with standard drilling equipment and facilitating the use of a self drilling anchor bolt as part of a larger ground support scheme.
The SupShell Expansion Rock Bolt System is ideally suited for a variety of geotechnical applications, including tunnel construction, underground mining, slope stabilization, and foundation support. In tunneling, the immediate anchorage provided by the expansion shell allows for rapid installation of initial support, which is crucial in squeezing ground or blocky rock masses where time-dependent deformation can endanger the excavation. The ability to inject grout through the hollow bar anchor further enhances the system's effectiveness in water-bearing strata, where complete sealing is essential to prevent water ingress and maintain long-term stability.
In mining operations, the SupShell system contributes to improved advance cycles and fortification cycles, reducing downtime and increasing productivity. The lightweight design and simple installation procedure require less manpower and equipment, translating into significant cost savings over the life of a project. For slope stabilization and soil nailing, the system can be used as a drill-and-grout bolt, providing both tension and compression reinforcement in loose or weathered ground. As a result, the SupShell system is a versatile geotechnical reinforcement system that meets the rigorous demands of modern civil engineering and resource extraction.
The growing global focus on infrastructure resilience and sustainable construction has increased the demand for high-performance anchoring solutions. The SupShell system addresses this need by offering a reliable, fast, and cost-effective alternative to traditional rock bolts and cable anchors. Its compatibility with standard drilling methods and its ability to be installed in a single pass make it an attractive option for contractors seeking to optimize schedules and reduce overall project risk.
SupAnchor has established itself as a trusted soil nail system manufacturer and ground anchor bolt factory, with a proven track record in delivering self drilling anchor systems to projects across Europe, North America, Australia, and beyond. The company's commitment to research and development is reflected in the continuous improvement of its product lines, including the SupShell Expansion Rock Bolt System. Adherence to international standards such as EN 10083, ISO 10208, and ISO 1461 underscores SupAnchor's dedication to quality and reliability.
By integrating mechanical expansion with efficient grouting, SupAnchor has created a solution that directly addresses the challenges faced by engineers and contractors in complex ground conditions. The SupShell system not only improves safety and performance but also supports the industry's drive toward faster, more economical construction methods. As infrastructure projects become larger and more technically demanding, the role of advanced anchoring technologies like the SupShell system will continue to grow.
Looking ahead, SupAnchor plans to expand its global distribution network and continue collaborating with engineering partners to develop customized solutions for specific project requirements. With a focus on professionalism, innovation, and collaboration, SupAnchor is well-positioned to meet the evolving needs of the geotechnical engineering community.
The SupShell Expansion Rock Bolt System is now available for order. For more information on technical specifications, project references, or to request a quotation, visit www.supanchor.com or contact the SupAnchor sales team.

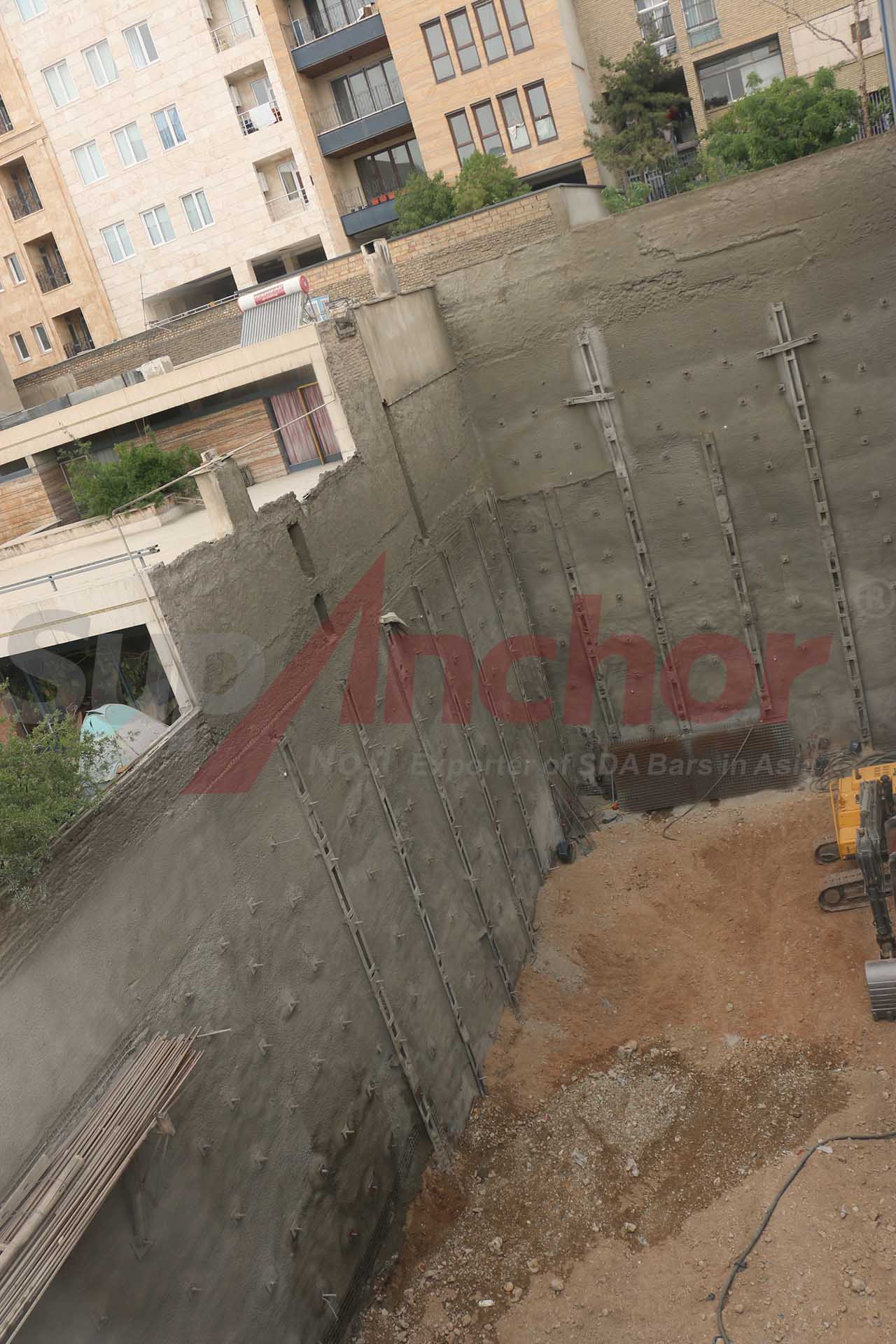

SupAnchor's self drilling anchor system proves critical in stabilizing slopes and foundations on a major construction site, showcasing advanced geotechnical reinforcement technology.
