SupAnchor Self Drilling Anchor System Tackles Challenging Alpine Geology in Landmark Infrastructure Project

Deep in the heart of the European Alps, a transformative highway scheme is pushing the boundaries of modern geotechnical engineering. The project involves twin three-lane tunnels—each approximately 8.5 kilometers in length—and extensive cut-and-cover sections traversing mixed geological units. From the preliminary site investigation, it became evident that the alignment would encounter highly variable conditions: fractured limestone with karstic voids, bands of graphitic schist prone to squeezing under stress, and a thick mantle of glacial till on the slopes above the portals. This geological complexity, coupled with a tight construction schedule and strict environmental constraints, demanded a ground stabilization anchor system that could combine drilling, grouting, and anchoring into a single, efficient process.

The design–build consortium, after rigorous technical evaluation, specified the SupAnchor self drilling anchor system as the primary soil and rock support method. The decision was influenced by SupAnchor’s track record as a leading ground anchor bolt factory with extensive references across challenging ground conditions worldwide. The system’s hollow bar anchor technology allows a striker bar with a sacrificial bit to be rotated and hammered into the ground while cement grout is injected through the hollow core, immediately filling and reinforcing the surrounding formation.

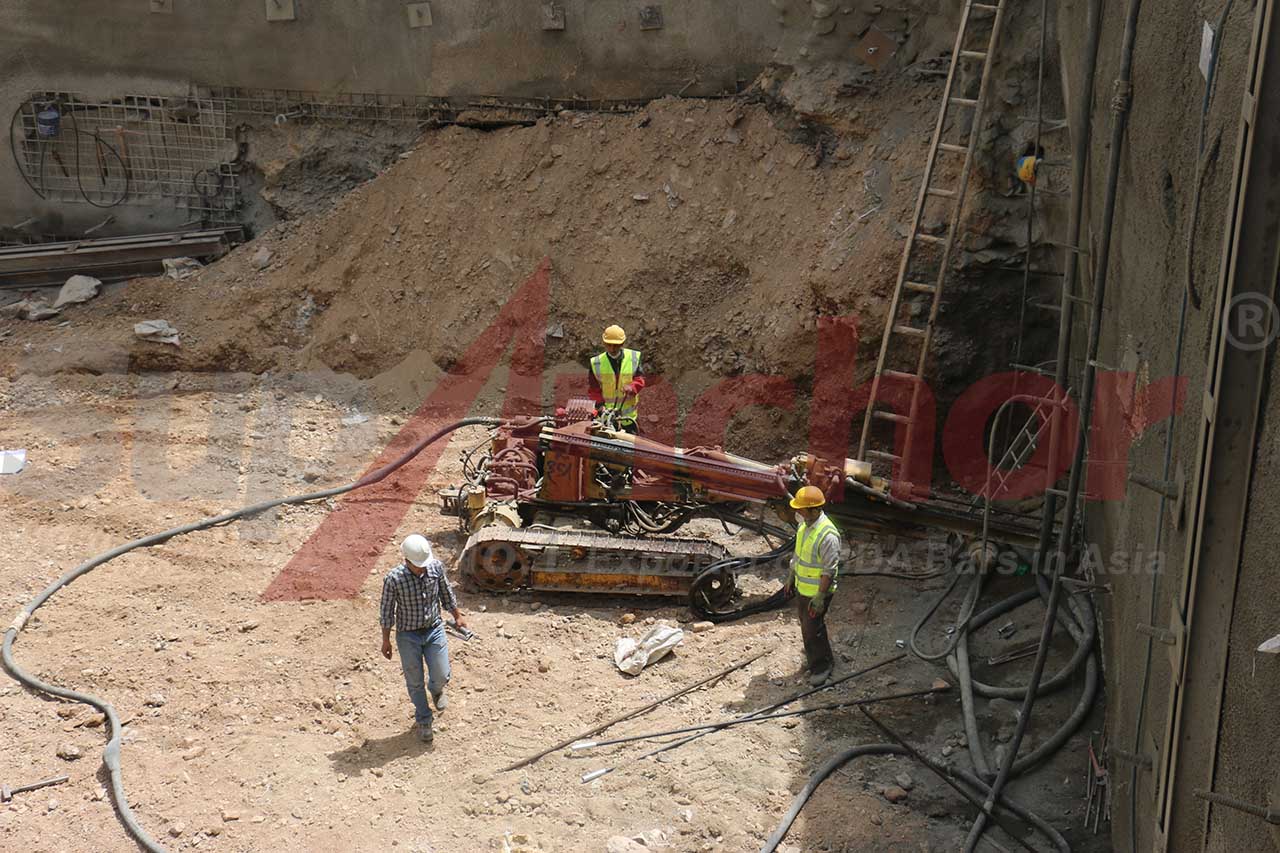

At the northern portal, where the overburden was less than 15 meters and composed of loose colluvial deposits, conventional drilling methods would have required temporary casing to prevent borehole collapse—a time-consuming and costly approach. Instead, crews installed 12-meter-long self drilling anchor bolts in a single pass, with grout continuously flushing to stabilise the walls. This drill-and-grout bolt method not only eliminated the need for casing but also ensured a perfect bond between the steel tendon and the grout column, as demonstrated by subsequent pull-out tests that consistently exceeded design loads.

On-Site Implementation and Technical Parameters

The SupAnchor self drilling anchor bolt range deployed on this project included diameters from 25 mm to 51 mm, covering both temporary rock support during tunnelling and permanent soil nailing for the approach cuttings. The smaller 25 mm and 32 mm hollow bars were used as forepoling (umbrella arch) elements to provide immediate roof protection in weak sections, while the larger 38 mm and 51 mm anchors served as the primary ground stabilization anchor system for the 30-meter-high cut slopes adjacent to the toll plaza.

A unique aspect of the project was the requirement for a self drilling anchor for retaining walls that could resist not only static earth pressures but also dynamic loads from nearby railway traffic. SupAnchor provided a customized solution: hollow bars with enhanced elongation (≥5%) and high yield strength, coupled with spherical bearing nuts that allowed up to 25° of misalignment—a critical feature given the irregular rock surface of the retaining wall foundation.

The table below outlines the core technical specifications of the anchors used on site. These values were verified by an independent testing laboratory in accordance with EN 14490 and EN 10204.

One of the most challenging scenarios occurred in a section where the tunnel crown passed through a graphitic schist zone with a rock mass rating below 20. The micropile hollow bar anchor—acting as a forepoling umbrella—was installed at 300 mm centre distances around the perimeter. The rope-threaded hollow bars were coupled from 3‑meter long starter bars to the full 12‑meter length, and grout was pumped at a controlled pressure of 2–4 MPa to maintain positive packer sealing against the soft rock. Instrumentation confirmed that the core support reduced surface settlement by more than 80% compared to unsupported sections, underlining the effectiveness of the anchor bolt system for geotechnical engineering.

For the 30‑meter high cut slope, a pattern of 25‑meter long 51 mm hollow bar anchors was installed at 2.5‑meter grid spacing through a combination of colluvium and weathered schist. The self drilling bolt for civil engineering was chosen here because of the slope’s steep angle and the need to install anchors quickly before winter weather set in. Drilling rates averaged 20 m/h in the overburden and 12 m/h in the rock, with grout take ranging from 0.8 to 1.2 kg per meter—data that were cross-referenced with the geological model for QA/QC sign-off.

Industry Value and Global Trends

This project exemplifies a global shift toward integrated ground support systems that reduce construction risk and accelerate programme. According to a 2023 report by Grand View Research, the global ground anchor market is expected to grow at a CAGR of 5.2% through 2030, driven by infrastructure development in mountainous and urban areas. The self drilling anchor system, in particular, has seen rapid adoption because it addresses the most persistent challenge in geotechnics: maintaining a stable borehole in caving ground while achieving a full bond. By combining a drill-and-grout bolt with a continuous hollow bar, SupAnchor offers a geotechnical reinforcement system that is equally applicable to rock bolt for underground mining, slope stabilization, and micropile hollow bar anchor applications in foundation engineering.

For the European market, the CE-marked SupAnchor hollow bar anchor meets the demanding requirements of the Construction Products Regulation, enabling its use without further national testing. This regulatory acceptance, combined with the system’s adaptability, positions the self drilling anchor for retaining walls as a standard solution for contractors seeking efficiency and durability. Environmental advantages are also notable: the single-pass injection minimises groundwater disturbance and eliminates the spoils disposal associated with cased holes, aligning with EU sustainability directives.

In North America, the trend toward design‑build projects and accelerated bridge construction has increased demand for quick‑installation ground support. SupAnchor’s SDA bolt factory direct supply model ensures that product lead times and technical support are optimized for local markets, while the company’s ISO 9001, 14001, and 45001 certifications provide assurance of consistent quality and safety.

SupAnchor: A Collaboration-Driven Anchor Bolt System for Geotechnical Engineering

With over two decades of manufacturing experience, SupAnchor operates as a dedicated soil nail system manufacturer and ground anchor bolt factory, supplying fully engineered solutions rather than mere commodity products. The company’s in‑house hot‑dip galvanising line and CNC threading capabilities allow for the production of hollow bar anchors up to 12 metres in length without the need for welding, ensuring uniform mechanical properties along the entire bar. Each batch is traceable to the steel heat number and galvanising run, and all products are tested to EN ISO 6892‑1 for tensile properties and EN ISO 1461 for coating thickness.

For this alpine project, SupAnchor’s value extended far beyond product supply. A team of application engineers spent two weeks on site training the driller crews, fine‑tuning the grout mix for cold‑weather performance, and establishing drill‑parameter templates for each ground type. This hands‑on approach—reflecting the Corporate ethos of “Professional, Innovative, Collaborative”—translated into tangible results: zero hole collapses during the entire installation phase, an average anchor installation time of 25 minutes per 12‑metre bar, and a 100% pass rate on acceptance pull‑out tests.

The project’s success has already sparked interest from several other European tunnelling and highway authorities, positioning the self drilling anchor bolt as a go‑to technology for future works. As geotechnical challenges grow more complex worldwide, SupAnchor continues to invest in R&D, with next‑generation hollow bars aiming for ultimate tensile capacities above 1,000 kN and smart sensor‑enabled bars that allow real‑time load monitoring—pushing the boundaries of what an anchor bolt system for geotechnical engineering can achieve.

In conclusion, the deployment of the SupAnchor self drilling anchor system on this demanding alpine infrastructure project underscores the maturity and versatility of hollow bar anchor technology. By seamlessly combining drilling, grouting, and anchoring, and by offering a comprehensive range of ground stabilization anchor system solutions, SupAnchor provides geotechnical engineers and contractors with the confidence to tackle the most unstable ground while meeting rigorous safety and schedule targets. As the industry moves toward faster, greener, and more reliable foundation support methods, the SupAnchor geotechnical reinforcement system stands out as a testament to innovation and collaborative engineering.
