In the rugged terrain of a major hydropower station construction site, steep slopes and fractured rock formations posed significant risks to project safety and progress. To address these challenges, the project team turned to SupAnchor, a leading manufacturer of self drilling anchor systems, for reliable geotechnical reinforcement. SupAnchor's Grade 75 self-drilling hollow anchor bars were deployed to stabilize the slopes, ensuring long-term integrity and enabling the project to proceed on schedule.
The hydropower station, located in a region known for complex geology, required an anchoring solution that could handle difficult ground conditions while minimizing installation time and cost. Conventional solid bars and casing methods were deemed inefficient due to the potential for hole collapse in loose overburden and fractured rock. SupAnchor's self drilling anchor bolt technology offered a drill-and-grout solution that combines drilling, grouting, and anchoring in a single pass, eliminating the need for pre-drilled holes and temporary casings.
The slope stabilization project involved reinforcing a cut slope adjacent to the powerhouse and intake structures. Geotechnical investigations revealed a mixture of weathered rock, clay seams, and groundwater seepage, which threatened slope stability during excavation and subsequent operation. The engineering team required anchors with high tensile strength, corrosion protection, and adaptability to variable ground conditions. Additionally, the site's steep terrain limited access for heavy drilling equipment, demanding a system that could be installed quickly and efficiently using smaller rigs.
SupAnchor's Grade 75 self-drilling hollow anchor bars met these requirements. Designed according to ASTM A615 standards, these bars feature a continuous T-thread design that provides a higher rib area, significantly enhancing bond strength in concrete and grout. The hollow core allows simultaneous flushing of drill cuttings and injection of grout, ensuring a uniform bond along the entire anchor length even in fractured rock.
The Grade 75 bars are engineered to replace solid threaded bars in conditions where self-drilling is advantageous. Key mechanical properties include an elongation of at least 6%, a yield load of approximately 147 kN (33 kips), and an ultimate load of about 196 kN (44 kips). The bars weigh only 2.6 kg/m (1.75 lbs/ft), facilitating handling and transport on steep slopes. The left-hand thread orientation is consistent with SupAnchor's R and T thread product lines, ensuring full compatibility with existing couplers, nuts, and drilling equipment.
The following table summarizes the critical specifications of the Grade 75 self-drilling hollow anchor bars:
| Parameter | Specification |
|---|---|
| Standard | ASTM A615 |
| Thread Design | Continuous T-thread |
| Elongation | ≥ 6% |
| Yield Load | 147 kN (33 kips) |
| Ultimate Load | 196 kN (44 kips) |
| Weight | 2.6 kg/m (1.75 lbs/ft) |
| Thread Orientation | Left-hand |
These parameters translate directly into engineering value. The high ultimate load capacity ensures that each anchor can withstand substantial tensile forces, critical for stabilizing large slope masses. The 6% elongation provides ductility, allowing the anchors to absorb ground movements without sudden failure. The T-thread profile, with its increased surface area, promotes superior grout adhesion, reducing the risk of debonding. Furthermore, the bars' compatibility with SupAnchor's R and T thread systems means that contractors can easily integrate them into existing inventories, reducing procurement complexity.

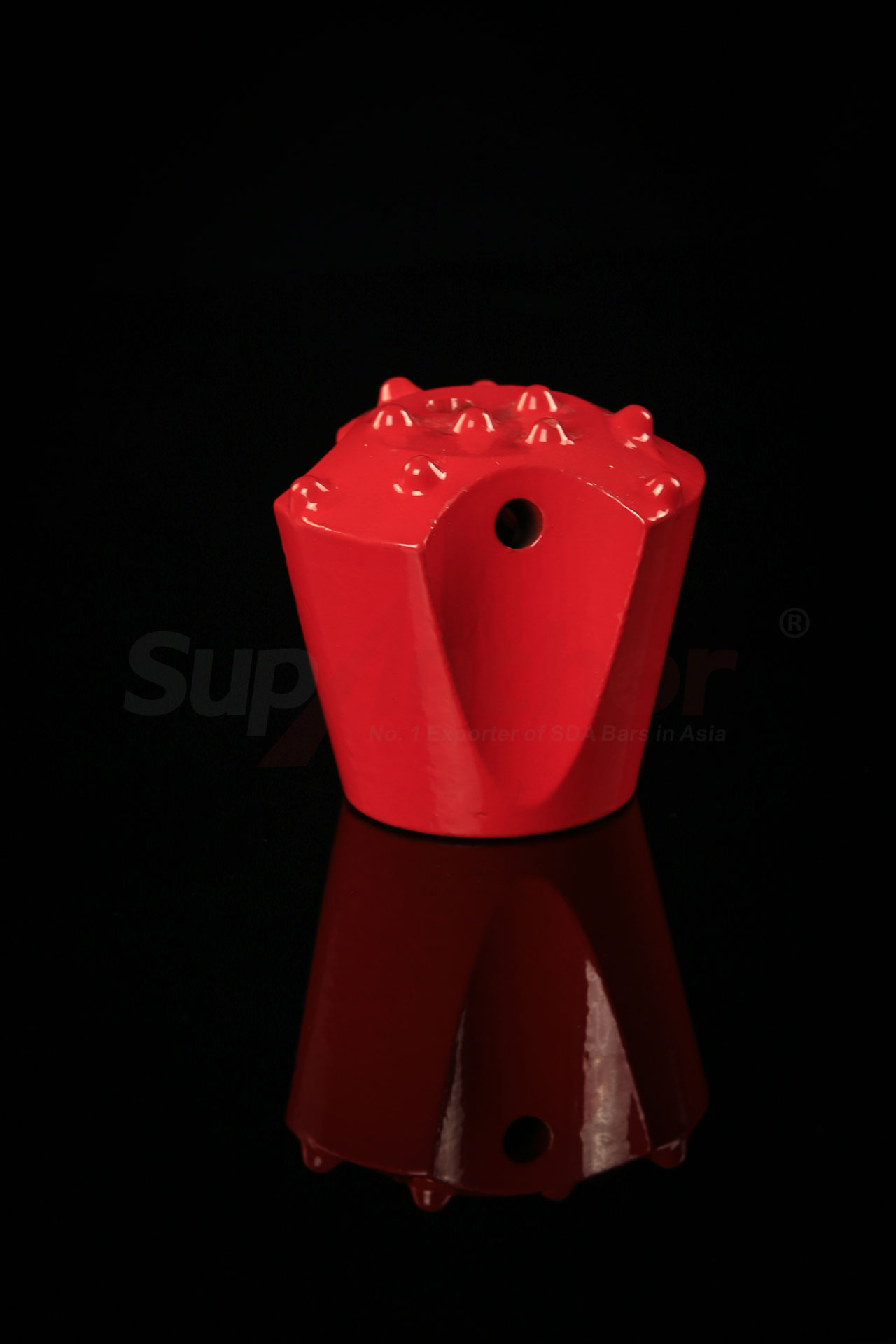

Installation of the self drilling hollow bar anchors was performed using standard rotary percussion drilling rigs equipped with a hollow bar system. The process began with the anchor bar itself serving as the drill rod, fitted with a sacrificial drill bit. As the bar advanced, compressed air or water was injected through the hollow core to flush drill cuttings from the borehole. Upon reaching the design depth, cement grout was pumped through the same hollow core, filling the annular space between the bar and the surrounding ground. This simultaneous drilling and grouting method eliminated the need for temporary casing, even in collapsing ground conditions, and significantly reduced installation time compared to conventional methods.
The Grade 75 bars' left-hand thread orientation is particularly advantageous when used with certain drill rigs, as it prevents unintentional unscrewing of the bar during rotation. This feature, combined with the robust T-thread design, ensured reliable performance throughout the project. The bars were supplied in standard lengths with couplers for extension, allowing adaptation to varying anchor depths without on-site welding.
Self-drilling hollow anchor systems have become increasingly popular in global infrastructure projects, including hydropower, tunneling, mining, and slope stabilization. Traditional anchoring methods often struggle in weak or water-bearing ground, where borehole collapse can lead to delays and increased costs. The drill-and-grout bolt approach offered by SupAnchor addresses these challenges by providing immediate support and continuous grouting in a single operation.
As infrastructure development expands into more geologically complex regions, the demand for reliable geotechnical reinforcement systems grows. SupAnchor's Grade 75 bars, compliant with ASTM A615, meet international standards and are suitable for a wide range of soil and rock conditions. Their use in this hydropower project demonstrates their effectiveness in high-risk slope stabilization, contributing to safer construction practices and long-term asset resilience.
SupAnchor has established itself as a trusted soil nail system manufacturer and ground anchor bolt factory, serving clients worldwide with high-performance anchoring solutions. The company invests heavily in research and development to improve product designs, materials, and manufacturing processes. Its ISO-certified quality management system ensures that every bar meets stringent dimensional and mechanical specifications. With a portfolio of projects across Europe, the Americas, Asia, and Africa, SupAnchor continues to demonstrate its ability to deliver professional, innovative, and collaborative support to the construction industry.
The successful application of Grade 75 self-drilling hollow anchor bars at the hydropower station underscores the company's engineering expertise and commitment to solving complex geotechnical challenges. As infrastructure demands evolve, SupAnchor remains at the forefront, providing advanced anchoring technologies that enhance safety, efficiency, and sustainability.
