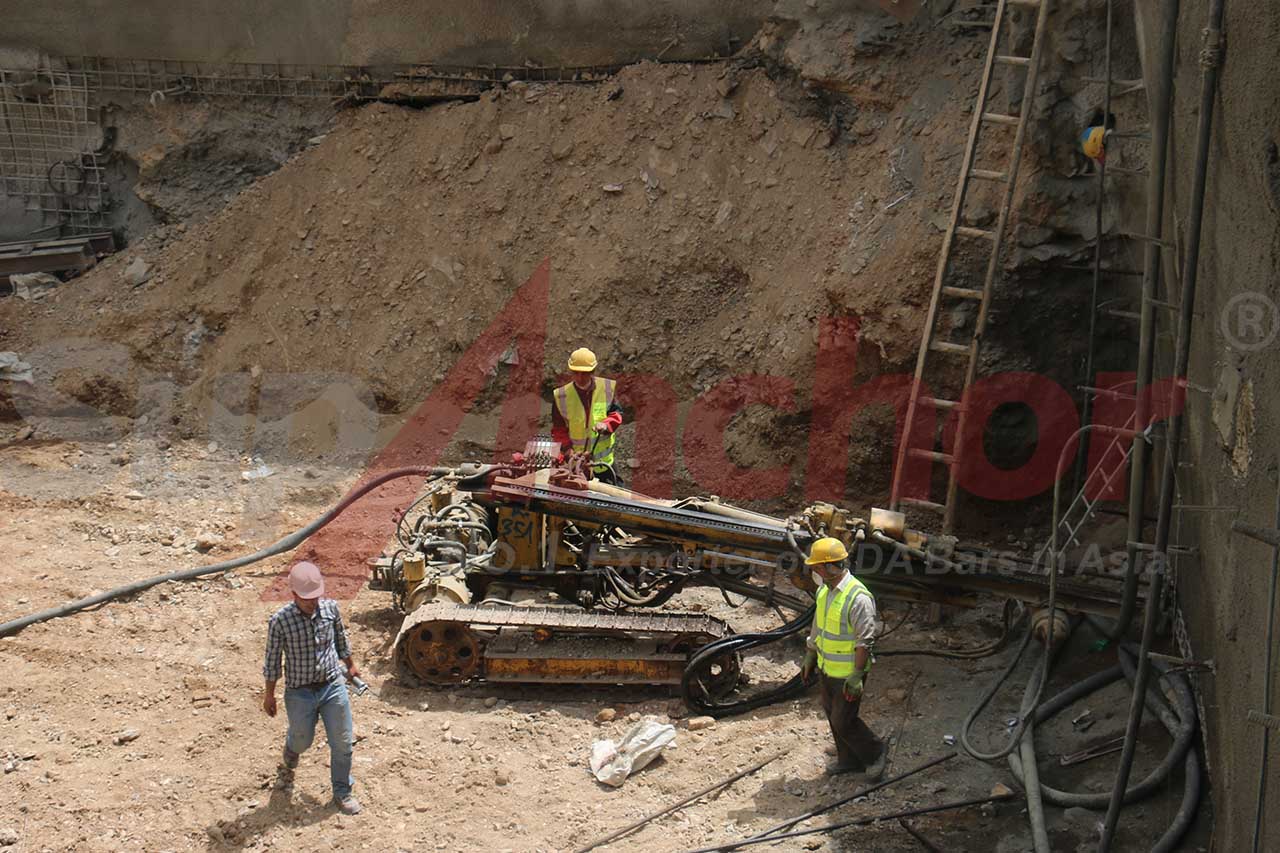

Deep beneath the bustling streets of a major European city, a critical infrastructure project recently reached a milestone, thanks to advanced ground stabilization technology supplied by SupAnchor. The project—a new urban railway tunnel—traversed a complex geological formation of weathered rock and high groundwater inflow, posing significant risks to worker safety and schedule adherence. To overcome these challenges, the contractor turned to a self drilling anchor system that could drill, grout, and reinforce in one single pass, eliminating the need for casing and reducing installation time dramatically. On-site photographs capture the system in action: workmen operate compact rigs positioned on scaffolding, driving hollow bars into the tunnel face while grey grout hoses snake across the deck. The orange hard hats and high-visibility vests are a universal symbol of construction safety, but here they also mark a quiet revolution in underground support methods.
The deployment features SupAnchor’s flagship SDA series—a self drilling anchor bolt engineered for versatility in difficult ground conditions. Unlike conventional rock bolts that require pre-drilled holes, these hollow bar anchors serve simultaneously as a drill rod, casing, and tendon. High-torque percussion drilling with simultaneous grout injection ensures immediate bond strength, even in collapsing, water-charged strata. As cities densify and infrastructure ages, such drill-and-grout bolt technology is becoming essential for safe and economical underground works.

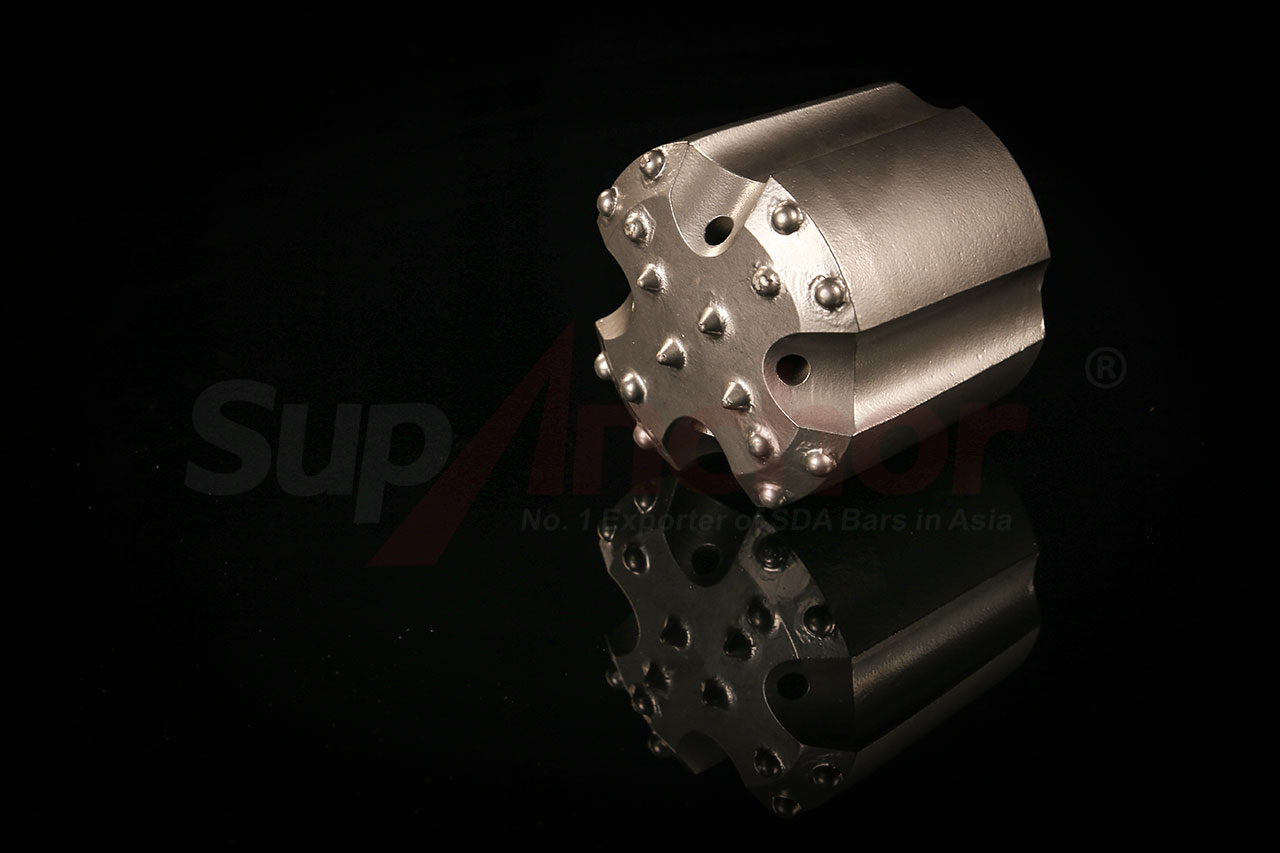

At the heart of the solution lies a carefully matched set of components. The hollow bar anchor employed is a 32 mm outer diameter R32 profile, manufactured from high-tensile steel with 500 MPa minimum yield strength. It comes equipped with a sacrificial drill bit that can penetrate materials up to 100 MPa UCS. The central flushing hole allows air or water for drilling, and later serves as the grout path. Threaded full-length for coupler connections, lengths up to 6 meters were supplied in one piece, with couplers enabling deeper embedment where design required. Corrosion protection is achieved through a dual barrier: hot-dip galvanizing to ISO 1461 plus a factory-applied epoxy coating, meeting the aggressive environmental requirements of the tunnel’s 100-year design life.
| Parameter | Value / Range |
|---|---|
| Bar Type | R32 / R38 / R51 Hollow Bar Anchor |
| Tensile Strength | 500 – 800 MPa (depending on grade) |
| Yield Load (R32) | ≥280 kN |
| Ultimate Load (R32) | ≥360 kN |
| Corrosion Protection | Hot-dip galvanized + Epoxy coating |
| Drilling Method | Top hammer percussion, simultaneous grouting |
| Drill Bit Type | Sacrificial, cross-cut / button bit, UCS up to 100 MPa |
The choice of a ground anchor bolt factory like SupAnchor provided the site with consistent quality and traceability. Each bar is manufactured under ISO 9001 and ISO 14001 certified processes, with full mill certifications. Because this self drilling bolt for civil engineering combines drilling and anchoring, the contractor eliminated separate casing installation—a critical advantage when encountering running sands and high groundwater. The hollow core allows grout injection from the bit upward, filling all voids and enhancing the surrounding rock mass. This technique effectively transforms the ground into a coherent reinforced block, a concept central to modern geotechnical reinforcement systems.
Urban tunneling under existing utilities, heritage buildings, and transport arteries demands minimal settlement and vibration. The self drilling anchor for retaining walls and tunnel face stabilization proved ideal. At this project, 6-meter anchors were installed in a grid pattern at the tunnel crown and sidewalls immediately after each excavation round. The rapid installation—each anchor taking only minutes—allowed the contractor to advance up to 4 meters per day in conditions that would otherwise require time-consuming pre-support such as forepoling or chemical grouting. The real-time bonding provided by the drill-and-grout bolt meant that the face could be sealed against water ingress swiftly, reducing the risk of collapse and limiting drawdown effects on the water table.
The technology’s significance extends well beyond this single tunnel. For decades, European engineers have relied on hollow bar anchors for slope stabilization, retaining walls, and foundation micropiles. The SupAnchor SDA series acts as a micropile hollow bar anchor when used in vertical or battered piles, capable of carrying both compression and tension loads. In northern European infrastructure upgrades, these ground stabilization anchor systems are used to underpin bridge abutments adjacent to live traffic. The same product line serves as a rock bolt for underground mining, where corrosive mine water demands robust double corrosion protection—exactly the same technology that now safeguards urban transit tunnels.
Because the hollow bar anchor system installs without a casing, it eliminates the need for separate drill steels and reduces equipment inventory. Contractors appreciate the simplicity: one bar, one drill bit, one grout mix. This lean approach aligns with the industry’s drive toward automated and data-driven construction. The ability to monitor drilling parameters in real time—torque, penetration rate, grout pressure—provides a quality record for every anchor, and SupAnchor’s digital documentation supports their soil nail system manufacturer role in delivering compliant, verifiable installations.
As Europe invests heavily in resilient infrastructure under the Green Deal and NextGenerationEU, the role of efficient geotechnical solutions becomes paramount. Projects such as high-speed rail corridors, flood defence upgrades, and sustainable urban mobility tunnels require slope and excavation support that is fast, dependable, and low-carbon. Self drilling anchor systems contribute to sustainability by reducing material waste (no casing left in the hole), cutting fuel consumption (faster cycle times), and enabling use of locally sourced grout materials. SupAnchor’s factory direct supply model also shortens the supply chain, cutting embodied carbon compared to multi-tier distributor networks. This SDA bolt factory direct supply approach means that contractors receive product quickly, with the technical backup needed to optimize designs on the fly.
The tunnel project described here is part of a wider shift toward convergence between civil and mining support technologies. The hollow bar anchor once confined to mining drifts is now commonplace in European subway stations and road tunnels. An anchor bolt system for geotechnical engineering must increasingly satisfy both temporary (construction) and permanent (structural) roles. The dual corrosion protection and high fatigue resistance of the R32 and R38 bars have been validated by independent testing institutes, supporting their use in 120-year design life structures. For SupAnchor, whose innovation pipeline includes higher-capacity threaded systems and glass-fibre reinforced polymer alternatives, this project serves as a showcase of how a rock bolt for underground mining can adapt seamlessly to civil demands.
On the regulatory front, Eurocode 7 and the execution standards EN 14490 and EN 1537 have raised the bar for ground anchor quality. SupAnchor’s ISO certifications and full material traceability ensure that each bar meets or exceeds the required elongation, weldability, and durability criteria. The company’s engineers collaborate with design consultants to prepare installation method statements and testing protocols, from pre-production pull-out tests on sacrificial anchors to acceptance testing on every sixth production anchor. This collaborative spirit—embedded in SupAnchor’s core values of Professional, Innovative, Collaborative—fosters trust across the supply chain.
SupAnchor has carved a reputation as a premium ground anchor bolt factory with a global reach. From Asian metro projects to American mining shafts, the company’s products have been tested in extreme conditions—deep freeze, high seismicity, and abrasive rock. The SDA series, in particular, has evolved through feedback from hundreds of job sites. The latest generation features a redesigned thread profile that enhances connection stiffness while allowing easier uncoupling after over-drilling. For a soil nail system manufacturer, such attention to site practicality distinguishes a commodity supplier from an innovation partner. In Europe, SupAnchor works closely with regional distributors who stock common diameters and provide immediate technical support, ensuring that even urgent orders for a ground stabilization anchor system arrive without delay.
The image captured at the tunnel site shows more than just machinery; it illustrates the seamless integration of person, product, and geology. Workers rely on the predictable performance of the self drilling anchor bolt—each bar is exactly the same, batch after batch—to plan their daily cycles with confidence. The factory-applied epoxy coating, visible as a smooth dark finish on stored bars, is a mark of quality that resists handling damage better than field-applied barriers. This reliability is critical when a single anchor failure could jeopardize the entire heading.
Behind the scenes, the digital thread is growing. SupAnchor sensors embedded in selected hollow bar anchors now transmit strain and corrosion data to monitoring centers, enabling predictive maintenance of permanent structures. These smart anchors, part of the next-generation geotechnical reinforcement system, promise to reduce lifecycle costs and improve safety for operators and commuters alike.
As the urban tunnel advances, every installed self drilling anchor for retaining walls and crown support is a testament to engineering mastery over nature. The groundwater that once threatened to inundate the workface now weeps harmlessly through the shotcrete lining, guided by the grout seal around each hollow bar. The micropile hollow bar anchor elements beneath the invert transfer loads to competent rock, ensuring that the tunnel will serve generations to come. In this way, SupAnchor’s products are not just components; they are enablers of connectivity, sustainability, and resilience in the built environment. For the global construction community, the message is clear: when ground conditions turn hostile, the self drilling anchor system is no longer an option—it is the standard of care.
