A critical infrastructure project in a mountainous European region recently reached a major milestone, thanks to the deployment of an advanced geotechnical reinforcement system. The challenging topography, characterized by fractured rock, loose overburden, and a high groundwater table, demanded an innovative approach to slope stabilization. SupAnchor, a globally recognized ground anchor bolt factory, provided its proprietary self drilling anchor system, which proved instrumental in ensuring long-term stability and safety.
The project involved widening a vital highway corridor that winds through steep terrain prone to landslides. Traditional drilling methods were hampered by collapsing boreholes and excessive grout loss, leading engineers to specify a drill-and-grout bolt solution. The SupAnchor SDA bolt factory direct supply delivered the necessary hollow bar anchor components, enabling simultaneous drilling and grouting that effectively sealed the borehole and reinforced the ground in a single operation.

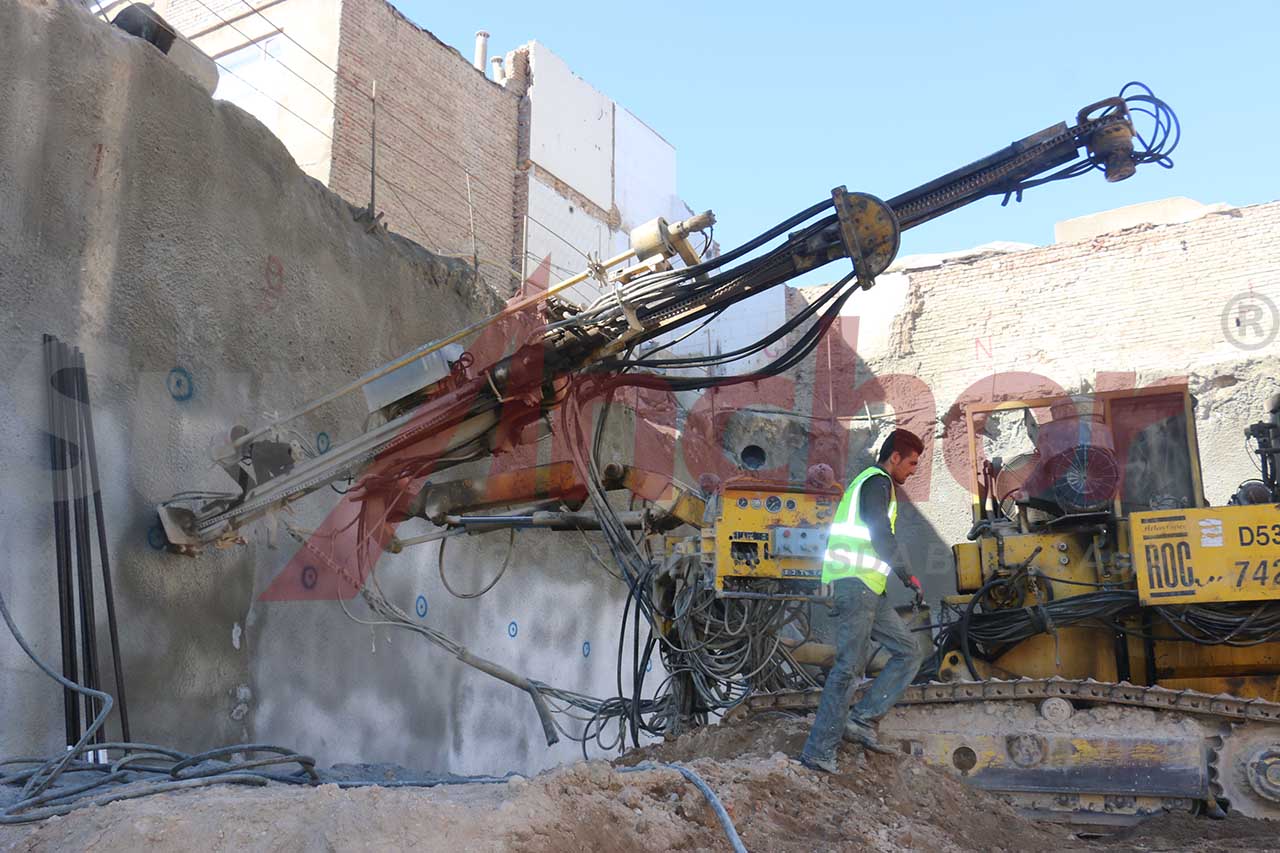

At the construction site, crews faced steep slopes up to 60 degrees, with limited access for large rigs. The compact drilling equipment, combined with the self drilling anchor bolt, allowed installation of anchors up to 12 meters deep without casing. The hollow bar design provided a continuous grout path from the drill bit to the ground surface, ensuring full encapsulation even in the fractured rock mass.
Key technical parameters of the SupAnchor system were tailored to the project's demanding conditions:
| Parameter | Specification |
|---|---|
| Anchor Type | Self Drilling Hollow Bar Anchor (T-thread) |
| Diameter Options | 32 mm, 40 mm, 52 mm |
| Tensile Strength | Up to 660 MPa (depending on diameter) |
| Corrosion Protection | Hot-dip galvanized (ISO 1461) or dual corrosion protection (DCP) with epoxy coating |

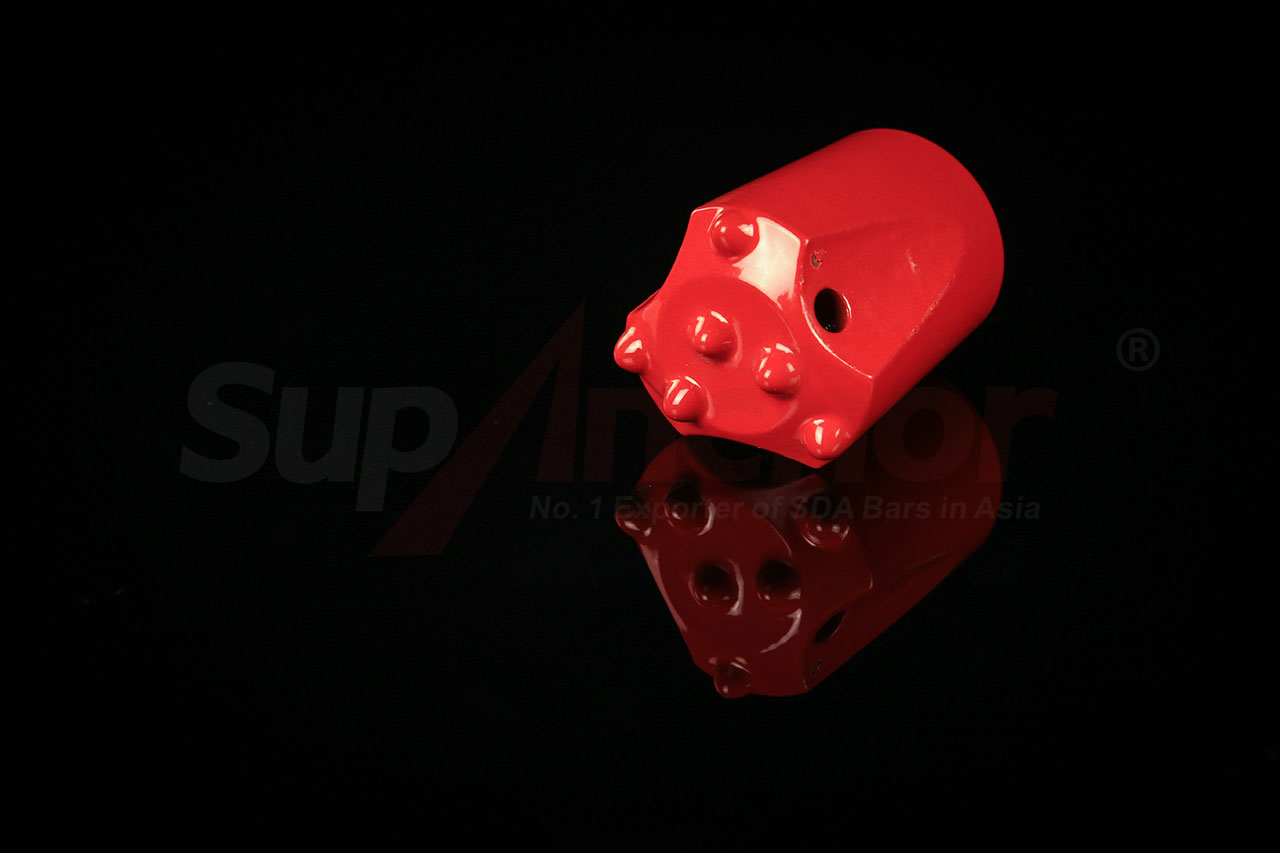

| Drill Bit | Carbide cross-cut or button bits, sacrificial for one-time use |
The high tensile strength of the anchor bolt system for geotechnical engineering allowed it to withstand significant axial loads, while the double corrosion protection was critical in the aggressive soil environment with high chloride content. The sacrificial drill bit eliminated the need for retrieval, speeding up installation and reducing site risks.
Contractors reported that the self drilling anchor for retaining walls and slope nails could be installed at a rate of 15–20 anchors per shift per rig, a significant improvement over conventional cased methods. The immediate grout column provided early confinement to the ground, preventing relaxation and reducing the risk of slope movement during construction.
This project underlines the growing importance of efficient soil nail system manufacturer offerings in modern infrastructure. As transportation networks expand into geologically unstable regions, the demand for reliable ground stabilization anchor system solutions rises. The self drilling anchor bolt technology addresses key industry challenges: time-sensitive construction schedules, environmental constraints, and worker safety.
The use of a micropile hollow bar anchor in this project also demonstrates its versatility. Where foundation support was needed for retaining walls, the same system was employed to install micropiles, providing both axial load capacity and lateral resistance. This dual functionality reduces equipment changes on site and streamlines logistics.
Geotechnical experts note that such hollow bar anchor systems are becoming the standard for urban excavations, tunnelling portals, and rock slope remediation. The ability to drill through obstructions and grout in a single pass minimizes disturbance to the surrounding ground—a critical advantage in built-up areas.
Behind the success of this project is SupAnchor, an ISO 9001 and ISO 14001 certified manufacturer with over two decades of experience in rock bolt for underground mining and civil engineering applications. The company's commitment to research and development has yielded a comprehensive range of SDA bolt products, backed by rigorous testing and international certifications.
SupAnchor’s production facility employs automated rolling lines and robotic welding to ensure consistent thread quality and dimensional accuracy. Every batch undergoes tensile and fatigue testing, with full traceability from raw material to finished anchor. This quality assurance is essential for projects that demand 100-year design lives.
“We don’t just supply anchors; we partner with engineers to deliver a complete ground reinforcement solution,” said a SupAnchor technical director. “This project’s difficult geology required precise geotechnical design support, which our in-house team provided, from pull-out test interpretation to installation monitoring.”
With a growing portfolio of global references—from high-speed rail tunnels in Asia to motorway rock cuttings in Europe—the company is well positioned to meet the rising need for self drilling bolt for civil engineering. Their recent expansion into North America highlights the increasing acceptance of the ground stabilization anchor system across regulatory environments.
The anchored slope now stands stable, monitored by inclinometers and load cells that confirm performance within design limits. The highway is expected to open on schedule, a testament to the synergy of innovative design and reliable manufactured products. As the construction industry continues to confront complex ground conditions, technologies like the self drilling anchor system will remain essential for safe and resilient infrastructure.
In conclusion, the successful deployment of SupAnchor’s hollow bar anchors in this challenging project reinforces the value of collaborative, innovative geotechnical solutions. Engineers seeking a dependable soil nail system manufacturer or a high-performance anchor bolt system for geotechnical engineering are increasingly turning to proven, factory-direct suppliers like SupAnchor. With its professional approach and commitment to quality, the company continues to shape the future of ground engineering.
