The construction of the Lyon-Turin high-speed rail link, specifically the 8.7-kilometer Valsusa Tunnel through the Mont Cenis massif, is one of Europe's most ambitious infrastructure projects. With a total investment exceeding €10 billion, this corridor will connect the trans-European transport network and drastically cut travel times between France and Italy. However, the tunnel's path through complex geological formations—including heavily fractured schists, water-bearing faults, and zones of squeezing ground—poses extreme challenges for excavation and support. To address these, the consortium of contractors has deployed an advanced geotechnical reinforcement system: the SupAnchor self drilling anchor system.
The Italian side of the tunnel encounters the "Briançonnais zone," a tectonic mélange of carbonate rocks, anhydrite, and clayey gouge. Rock mass ratings (RMR) often plunge below 20, indicating very poor ground. Traditional rock bolts and soil nails would fail to provide adequate immediate support due to borehole instability and the risk of sudden collapse. The self-drilling anchor bolt, functioning as a hollow bar anchor and drill-and-grout bolt simultaneously, is uniquely suited to this environment. It eliminates the need for pre-drilled holes, thereby preventing hole collapse and enabling immediate grouting. As a leading soil nail system manufacturer, SupAnchor's innovation directly addresses these risks.
The image vividly captures the self-drilling anchor system in action at the tunnel face. Workers are using a hydraulic drilling rig to advance the hollow bar anchor while simultaneously injecting grout through its central bore. This process creates a rough, grout-filled bond zone that significantly increases pull-out resistance. The ground stabilization anchor system is remarkably quiet and vibration-free, minimizing disturbance to the already fragile rock mass. It showcases the seamless integration of a ground anchor bolt factory's product into a critical civil engineering project.
The SupAnchor self-drilling bolt for civil engineering applications comprises a continuously threaded hollow steel bar, a sacrificial carbide drill bit, and a central bore for grout injection. Manufactured from high-tensile steel, these bars undergo stringent quality control at the SDA bolt factory direct supply, earning ISO 9001:2015 and CE certifications. The threaded profile along the entire length allows for couplers to extend anchors to required depths or attach bearing plates and nuts for immediate tensioning. This anchor bolt system for geotechnical engineering is designed to perform in the harshest subsurface conditions.
Key technical specifications of the deployed SDA bolts are summarized below. These parameters were selected after a thorough geotechnical analysis tailored to the tunnel's anticipated deformation and load conditions.
| Parameter | Specification |
|---|---|
| Outer Diameter | 32 mm |
| Inner Diameter (Bore) | 16 mm |
| Steel Grade (Minimum Yield) | 500/550 MPa |
| Ultimate Tensile Strength | 680 MPa |
| Elongation at Fracture | ≥ 16% |
| Corrosion Protection | Hot-dip galvanized (min 85 µm) with optional epoxy coating |
| Anchor Lengths | 3–12 m, extensible with couplers |
| Drill Bit Type | Carbide button bit, disposable |
| Grout Injection Method | Simultaneous drilling and grouting |
The combination of high yield strength and ductility ensures the anchor deforms plastically under excessive load without brittle failure—a critical safety feature in underground excavation. The corrosion protection system, with hot-dip galvanizing and optional epoxy layers, guarantees a design life exceeding 50 years in moderately aggressive environments, meeting stringent European tunneling standards. Prior to deployment, a rigorous testing program at SupAnchor's facilities confirmed these properties through tensile, shear, and corrosion resistance tests per EN 14199.
During tunneling, the self drilling anchor for retaining walls played a dual role: face stabilization and pre-support of portal areas. In sections where the rock mass was extremely poor—akin to conditions requiring a rock bolt for underground mining—the micropile hollow bar anchor variant provided crown reinforcement. The ability to install these ground stabilization anchor systems without a casing proved invaluable; conventional drilling would have triggered borehole collapse and grout loss.
Installation crews achieved advance rates of up to 2 meters per minute in moderately hard rock using rotary-percussive rigs with water flushing. The drill-and-grout bolt method allowed immediate grouting through the hollow bar, filling fissures and creating a monolithic reinforcement element. Field pull-out tests consistently exceeded design loads by over 20%, validating the reliability of the anchor bolt system for geotechnical engineering. The SDA bolt factory direct supply from SupAnchor ensured custom lengths and special configurations were delivered without delay, keeping the project on schedule.

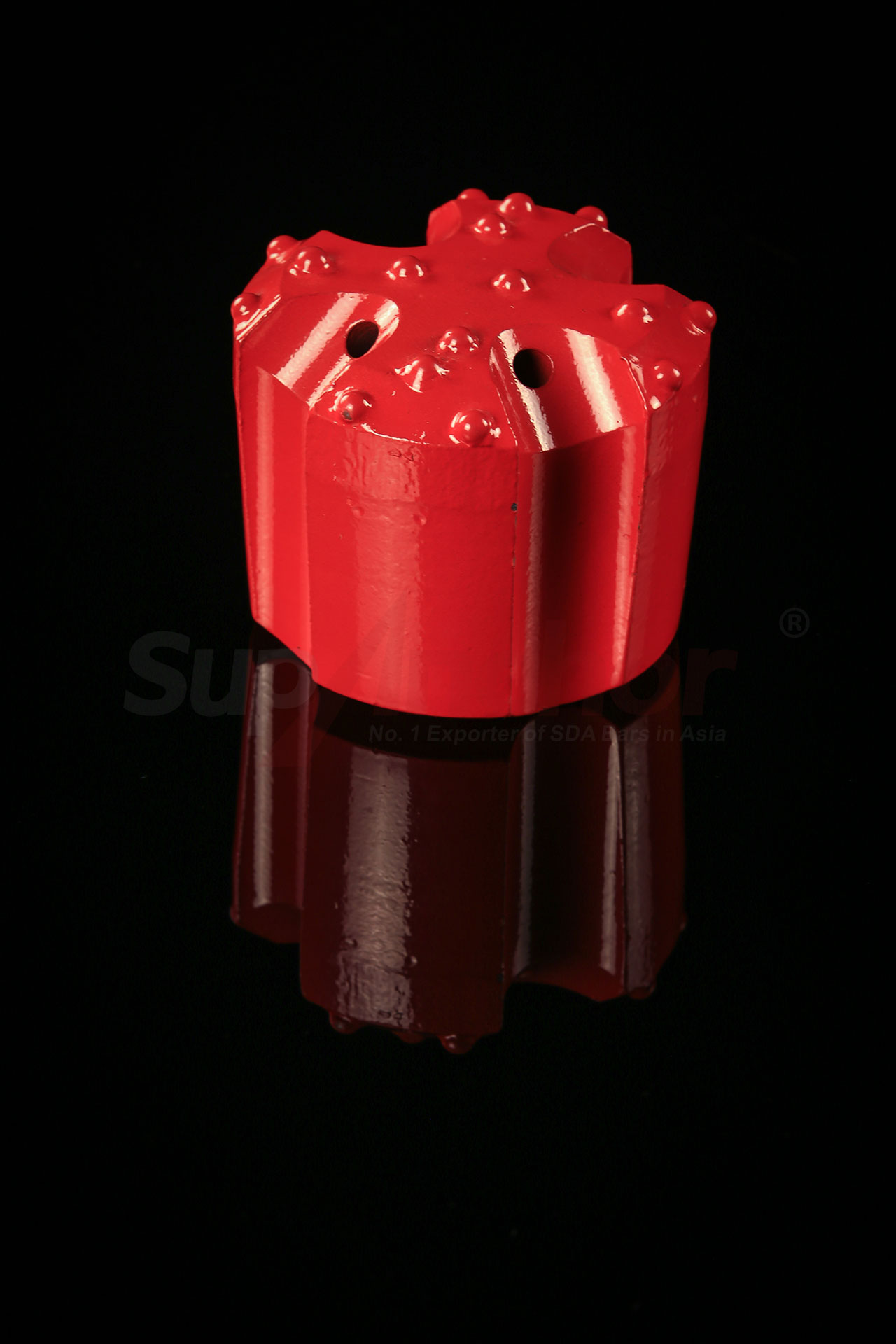

The product image highlights the precision engineering of the SupAnchor self-drilling anchor bolt. The continuous left-hand thread and robust drill bit exemplify the quality of this soil nail system manufacturer's output. In the tunnel, these bolts were installed in systematic patterns, supplemented with shotcrete and wire mesh, to form a composite lining that enhanced overall tunnel stability.
The success of the Valsusa Tunnel underscores the growing reliance on advanced geotechnical reinforcement systems worldwide. As urbanization accelerates and transportation networks expand into challenging terrains, the demand for efficient, safe, and sustainable ground support solutions soars. Self-drilling anchor systems, by eliminating temporary casing and reducing grout waste, align with environmentally conscious construction practices. According to industry analysts, the market for ground anchor bolt factory products is projected to grow at over 5% annually through 2030, driven by investments in rail, road, and metro projects. Europe's "Green Deal" and the United States' focus on infrastructure rehabilitation are creating significant opportunities for hollow bar anchor and micropile hollow bar anchor solutions in everything from deep basement excavations to slope stabilization.
SupAnchor's commitment to innovation is evident in its continuous R&D investment and adherence to international standards. With ISO 9001 and CE certifications, its products have been deployed in flagship projects across Scandinavia, the Middle East, and South America, including the Thames Tideway project in London and the Second Avenue Subway in New York. The self drilling bolt for civil engineering has proven its versatility from hydropower projects to urban deep excavations. The company embodies the philosophy of "Professional, Innovative, Collaborative" by acting as a technical partner rather than just a supplier—offering design assistance, installation training, and customized manufacturing. This collaborative approach ensures that every ground stabilization anchor system meets the specific demands of the project.
Looking ahead, the integration of digital monitoring technologies with ground anchor bolt factory products is an emerging trend. Sensors embedded in anchors can provide real-time data on load and displacement, enabling predictive maintenance. SupAnchor is actively exploring such smart anchoring solutions, positioning itself at the forefront of the next generation of geotechnical reinforcement. The Alpine tunnel stands as a testament to how the self drilling anchor system can transform complex geotechnical works, ensuring safety, efficiency, and long-term resilience.
