SupAnchor® Introduces Stainless Steel Self-Drilling Hollow Anchor for Corrosive Environments

In the realm of geotechnical engineering, the demand for durable ground reinforcement solutions in harsh environments has grown significantly. From coastal infrastructure battered by saltwater to chemical plants exposed to corrosive vapors, traditional carbon steel anchors often fall short, succumbing to rust and degradation over time. SupAnchor®, Asia's leading manufacturer and exporter of self-drilling anchors, has addressed this challenge with the introduction of its stainless steel self-drilling hollow anchor—a corrosion-resistant variant that maintains the high-performance "3-in-1" functionality of its acclaimed self drilling anchor system.

The stainless steel hollow bar anchor integrates drilling, grouting, and reinforcing into a single step, eliminating the need for casing and streamlining installation in unconsolidated or cohesive soils. This new product not only extends the service life of ground support structures but also reduces long-term maintenance costs, making it ideal for permanent applications where corrosion is a major concern. As a premier ground anchor bolt factory and soil nail system manufacturer, SupAnchor has engineered this solution to meet the highest standards of durability and performance.

Technical Specifications and Core Advantages

The stainless steel self-drilling anchor bolt features a ribbed hollow bar as the load-bearing member, with an optimized rib geometry (relative rib area fR of 0.21–0.33) that maximizes bonding with grouting materials. The 45° angled rib surfaces minimize splitting forces on the surrounding ground, ensuring crack widths remain below 0.1 mm at maximum load—a critical factor in preserving the integrity of the geotechnical reinforcement system. The stainless steel construction inherently resists pitting, crevice corrosion, and stress corrosion cracking caused by chlorides, acids, or humid environments, delivering consistent performance even in the most aggressive settings.

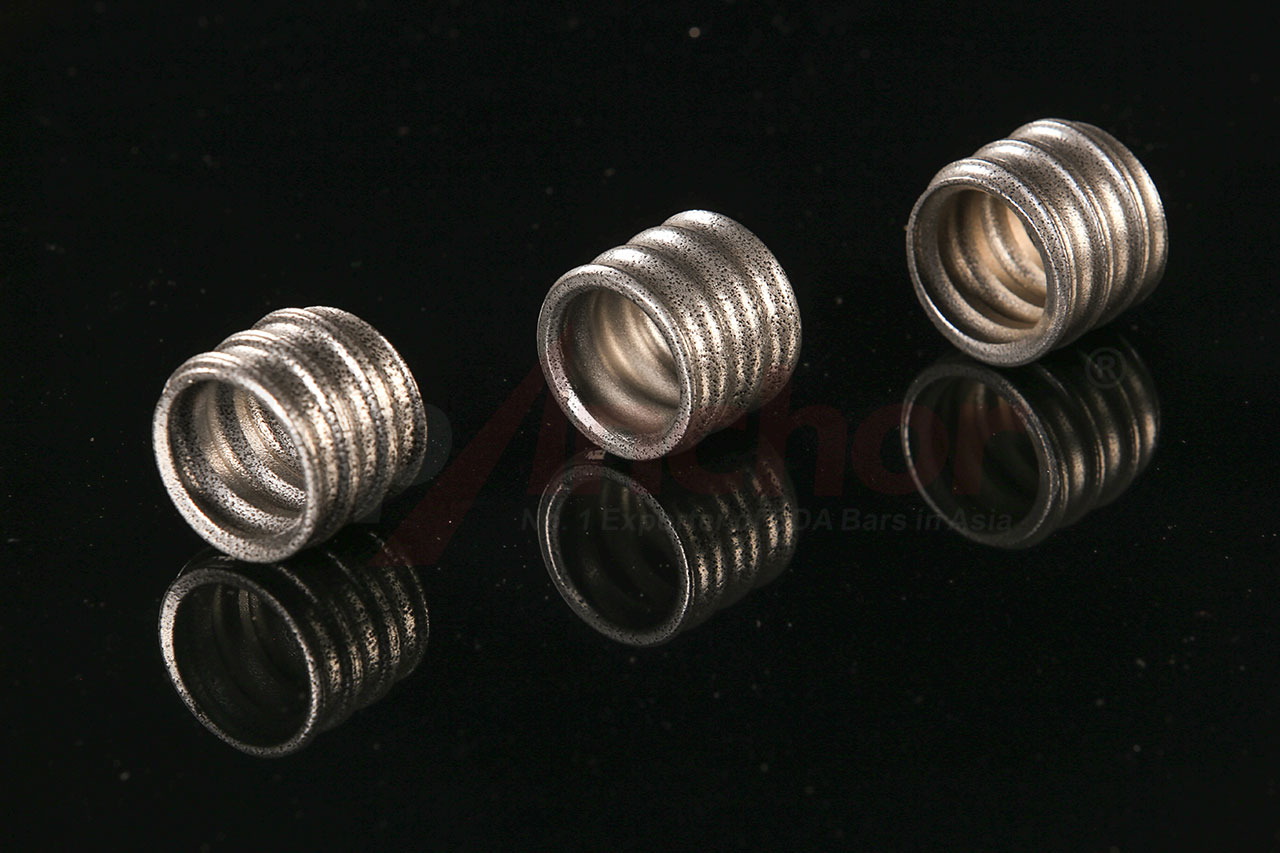

The drill-and-grout bolt is fully compatible with SupAnchor's standard accessories, including nuts, couplers, and plates, which simplifies on-site assembly and logistics. Its thread design aligns with ISO 10208 (R-thread) and T International Standards, ensuring interchangeability with existing components. Below are the detailed technical parameters for the R32SS/15 model, a representative stainless steel variant:

These specifications translate directly into field reliability. The high ultimate and yield loads (≥405 kN and ≥300 kN, respectively) provide ample safety margins for dynamic loading conditions typical of marine structures or seismic zones. The availability of multiple lengths and the straightforward coupling mechanism allow the self drilling anchor system to adapt to varying overburden depths and anchorage requirements without compromising speed or safety.

Application Scenarios and Engineering Adaptability

The stainless steel self-drilling hollow anchor excels in environments where corrosion is the primary threat to structural longevity. Its inherent resistance opens up a wide array of permanent and semi-permanent applications:

• Coastal and Marine Engineering: Port aprons, sea walls, offshore wind turbine foundations, and coastal tunnel face support face relentless saltwater exposure. The anchor's anti-corrosion properties eliminate rust-induced weakening, ensuring decades of stable performance without frequent maintenance.
• Chemical and Industrial Facilities: In chemical plants, wastewater treatment centers, and industrial zones with acidic or alkaline vapors, the drill-and-grout bolt resists chemical attack. This prevents material degradation that would rapidly compromise standard carbon steel anchors.
• Humid and Tropical Environments: Slope stabilization in monsoon-prone regions, water conservancy projects, and subway tunnels with high humidity benefit from the anchor's rust resistance. It averts sudden failures caused by hidden corrosion, a common issue in underground works with water seepage.
• Permanent and Heritage Structures: For historical building reinforcement, nuclear facility auxiliary structures, or permanent retaining walls, the anchor's maintenance-free lifespan aligns with stringent safety and conservation standards. Its durability reduces lifecycle costs and environmental impact by minimizing the need for replacements.

While the R32SS/15 model is highlighted here, SupAnchor's stainless steel range likely extends to other diameters (25mm, 38mm, 51mm) across both R-thread and T-thread series. This breadth enables engineers to select the optimal hollow bar anchor for load capacities and geological conditions ranging from soft clays to fractured rock. The standardized rib geometry and accessory compatibility further streamline project planning and execution.

Industry Value and Market Significance

As global infrastructure spending surges, especially in coastal megacities and environmentally sensitive zones, the need for corrosion-proof geotechnical reinforcement systems has never been greater. Climate change intensifies the threat of saltwater intrusion and extreme weather, pushing designers toward materials that can endure harsher conditions. SupAnchor's stainless steel hollow bar anchor directly answers this call, providing a cost-effective alternative to costly post-installation protective coatings or cathodic protection systems.

In Europe and North America, where regulatory frameworks emphasize sustainability and long-term asset management, the anchor's lifecycle advantages are particularly compelling. By virtually eliminating corrosion-related deterioration, it supports infrastructure resilience targets and helps contractors meet strict maintenance budgets. This positions the self drilling anchor bolt as a strategic tool for projects ranging from offshore wind farms in the North Sea to chemical containment facilities in industrial corridors.

The product also strengthens SupAnchor's competitive edge as a comprehensive supplier. Alongside hot-dip galvanized and SupCoated carbon steel versions, the stainless steel variant completes a full spectrum of anti-corrosion solutions under one roof. For procurement managers and design engineers, this simplifies specification and ensures consistent quality across all components of the geotechnical reinforcement system.

SupAnchor's Innovation and Global Footprint

SupAnchor® has built its reputation on continuous R&D and a deep understanding of on-site challenges. As the No.1 manufacturer and exporter of self-drilling anchors in Asia, the company holds certifications that attest to its rigorous quality management, including ISO 9001 and compliance with EN and ISO standards for materials and threading. The stainless steel anchor is the latest outcome of its innovation-driven culture, developed in close collaboration with engineers who have wrestled with corrosion-induced failures.

SupAnchor's self drilling anchor systems have been deployed in landmark projects worldwide: metro tunneling in Singapore, slope stabilization in the Alps, port expansions in the Middle East, and dam rehabilitation in South America. With the addition of the stainless steel variant, the company is poised to support even more demanding environments, reinforcing its role as a trusted partner in global infrastructure development. As a leading ground anchor bolt factory, SupAnchor remains committed to delivering professional, innovative, and collaborative solutions that help build a safer, more resilient world.

As infrastructure demands grow more complex, SupAnchor® continues to push boundaries. The stainless steel self-drilling hollow anchor is not just a product; it is a strategic asset for engineers and contractors who refuse to compromise on durability, safety, and performance in the face of corrosion.
