A major hydropower station slope stabilization project recently benefited from SupAnchor's advanced Grade 75 self-drilling hollow anchor bars, overcoming challenging geological conditions with reliable and efficient ground reinforcement. The project, located in a mountainous region with fractured rock and steep inclines, required a high-performance anchoring solution that could be installed quickly while offering exceptional bond strength and durability. SupAnchor's self drilling anchor system was selected for its proven track record and technical superiority.
The self drilling anchor bolt is designed for drill-and-grout applications, combining drilling, anchoring, and grouting into a single operation—a significant advantage in time-sensitive and difficult-access sites. On this hydropower project, crews drilled through overburden and weathered rock, injecting grout simultaneously through the hollow bar, creating a reinforced bond zone that stabilizes the slope against potential landslides. The use of this geotechnical reinforcement system allowed the team to complete the stabilization works weeks ahead of schedule, avoiding costly delays and ensuring the safety of the downstream infrastructure.
Engineers on site praised the straightforward installation and immediate load-bearing capacity of the hollow bar anchor. "We could advance through the mixed ground without casing, and the continuous thread ensured excellent load transfer," commented the lead geotechnical engineer. The project required over 2,000 linear meters of anchors, installed at varying angles to intersect discontinuities and anchor the rock mass to a competent depth.
The Grade 75 bar is manufactured to ASTM A615 standards, ensuring consistent mechanical properties and quality. Key technical parameters include a yield load of approximately 147 kN (33 kips), an ultimate load of 196 kN (44 kips), and a weight of 2.6 kg/m (1.75 lbs/ft). The continuous T-thread profile provides an increased rib area compared to traditional bars, significantly enhancing bond performance in concrete and grout. With an elongation of at least 6%, the bar offers sufficient ductility to accommodate ground movements, which is critical in seismic or shifting terrain.
| Property | Value |
|---|---|
| Yield Load | ≈147 kN (33 kips) |
| Ultimate Load | ≈196 kN (44 kips) |
| Elongation | ≥6% |
| Weight | 2.6 kg/m (1.75 lbs/ft) |
| Thread | Continuous T-thread, left-hand |
The combination of high ultimate strength and optimized thread geometry allows the hollow bar anchor to handle both tension and shear loads effectively. In the slope stabilization project, the bars were installed as part of a systematic geotechnical reinforcement system, working in tandem with shotcrete and mesh to create a secure face. The drill-and-grout bolt method eliminated the need for casing in collapsing ground, saving time and reducing costs. Additionally, the left-hand thread orientation is ideally suited for rotary percussive drilling rigs commonly deployed in North and South America, reducing the risk of unscrewing during installation.

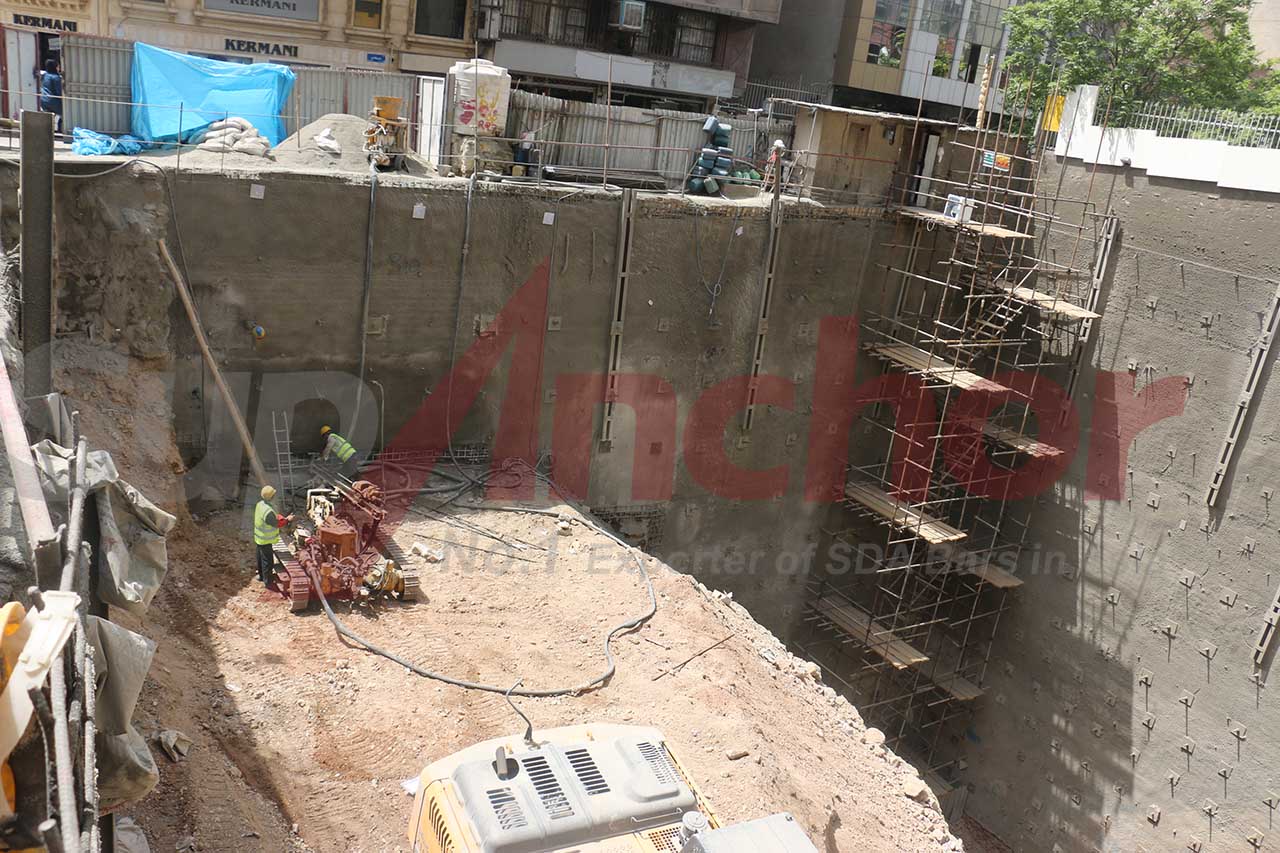

During installation, the hollow bar is rotated into the ground using a drilling rig, grout is pumped through the bar, and it fills the annular space and permeates into surrounding fractures, creating a monolithic anchor. This technique is especially beneficial in loose or water-bearing strata, where conventional drilling and insertion would risk hole collapse. Although the base bar is uncoated, SupAnchor offers optional corrosion protection—such as hot-dip galvanizing or epoxy coating—to meet project-specific durability requirements for aggressive environments or extended service life. The Grade 75 bar is fully compatible with the company's range of couplers, nuts, and drill bits, enabling rapid assembly and customization on site.
Self drilling anchor systems have become a cornerstone of modern geotechnical engineering, used extensively in tunnels, mines, foundation pits, and slope stabilization. The Grade 75 hollow bar anchor meets the growing demand for high-performance, versatile reinforcement solutions that can be deployed in challenging conditions. With global infrastructure investments on the rise, products like SupAnchor's Grade 75 provide engineers with reliable tools to manage ground instability, increase worker safety, and extend the lifespan of critical structures. From European alpine tunnels to South American metal mines, the adaptability of these anchors reduces installation risks and accelerates construction timelines.
The market for ground anchor bolts is projected to grow steadily, driven by urbanization and the need for resilient infrastructure. As a leading soil nail system manufacturer and ground anchor bolt factory, SupAnchor is well-positioned to serve this demand with a comprehensive product line that includes various grades and sizes of self drilling anchor bolts and accessories. The Grade 75 bar, in particular, offers a cost-effective alternative to solid threaded bars, delivering comparable strength with improved grout bond and easier handling due to lighter weight. Its use in permanent retaining walls, rockfall mitigation nets, and micro-pile foundations underscores its versatility.

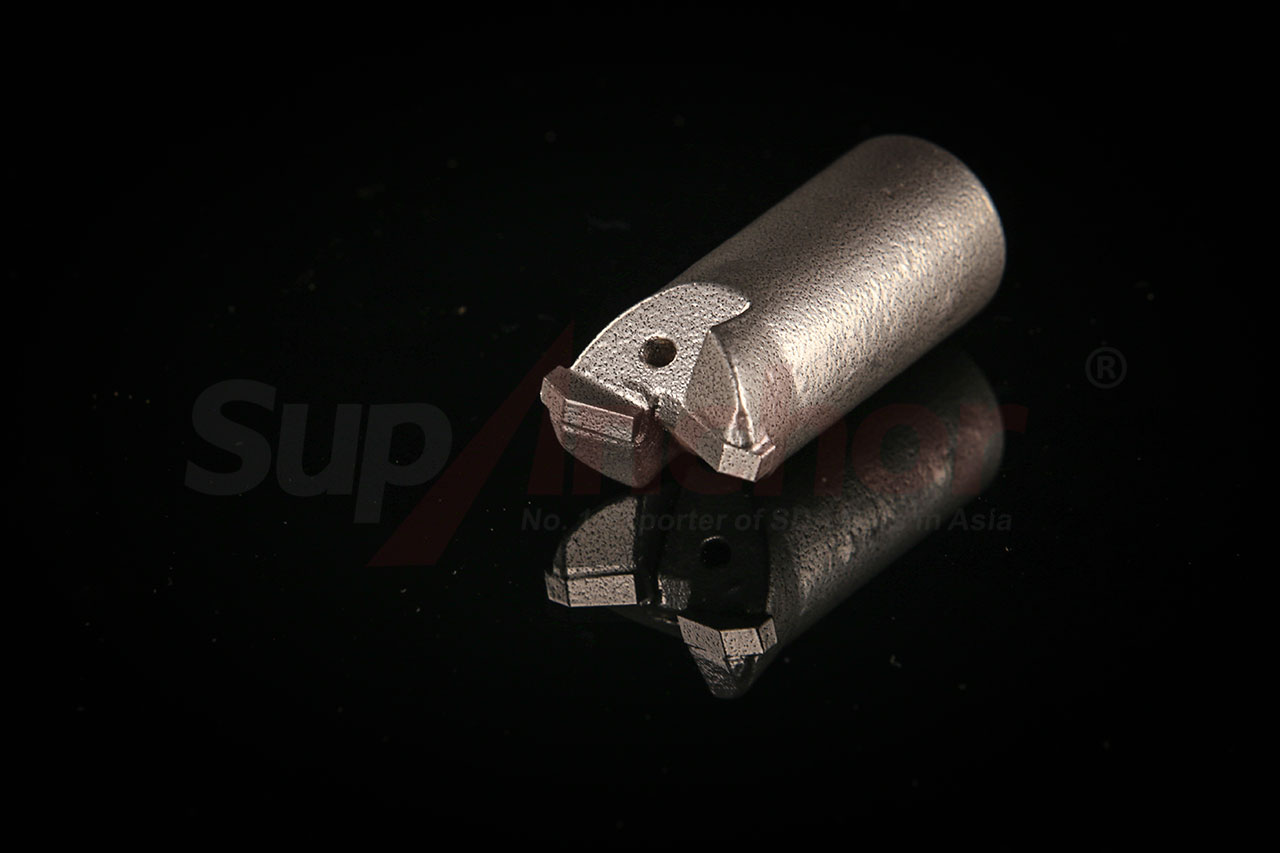

Engineers evaluating geotechnical reinforcement systems often prioritize working from a single source to ensure compatibility and accountability. SupAnchor's integrated supply of bars, bits, plates, and couplers simplifies procurement and supports just-in-time delivery, a critical factor in remote project sites. The company's technical support team assists with anchor design and pull-out testing, helping contractors optimize the reinforcement layout for maximum effect.
SupAnchor has built a reputation for quality and innovation in the self drilling anchor system industry. The company holds ISO 9001 and ISO 14001 certifications, reflecting its commitment to manufacturing excellence and environmental stewardship. Its R&D team continuously refines anchor designs based on feedback from global projects, ensuring that each anchor bolt delivers optimal performance in the field. By maintaining strict control over steel sourcing and heat treatment, SupAnchor guarantees consistent mechanical properties batch after batch.
"Our Grade 75 bar is a direct response to clients' needs for a heavy-duty, yet easy-to-install anchoring solution," said a SupAnchor spokesperson. "We believe in collaborative engineering, working closely with contractors and consultants to tailor our geotechnical reinforcement systems to real-world applications." With a presence in over 30 countries, SupAnchor provides technical support and on-time delivery, reinforcing its position as a trusted partner in major infrastructure ventures. The company's recent investments in automated production lines have increased capacity, ensuring short lead times even for large orders.
The successful deployment on the hydropower project underscores the Grade 75 bar's value as a cost-effective, high-strength alternative to solid threaded bars. For engineers seeking a robust ground anchor solution, SupAnchor's latest offering sets a new benchmark in performance and reliability. As the construction industry continues to push the boundaries of what is possible in difficult ground, tools like the Grade 75 anchor will play an indispensable role in building safer, more resilient infrastructure worldwide.
