In a remote mountainous region, a crucial infrastructure project faced formidable geotechnical challenges that threatened both schedule and safety. The Trans-European Highway Extension, cutting through a 2-kilometer stretch of unstable terrain, encountered loose colluvial soils, heavily fractured phyllite, and a steep 60-degree gradient. Historic landslides during intense rainfall had repeatedly halted construction, underscoring the need for a reinforcement solution that could be installed rapidly, without disturbing the already delicate slope. After exhaustive analysis, the design team specified a dense pattern of soil nails and rock dowels, selecting SupAnchor’s self drilling anchor system for its unmatched ability to combine drilling, grouting, and anchoring in a single, efficient pass.
Traditional methods, including driven piles and pre-drilled anchors, were deemed inadequate due to the high risk of borehole collapse in the cohesionless overburden. The project demanded a zero-tolerance approach to slope movement, especially with the approaching rainy season. The self drilling anchor bolt emerged as the optimal choice, offering both speed and reliability while preserving the integrity of the surrounding ground. With over 2,000 anchors to be installed, the system’s performance would be put to the ultimate test.

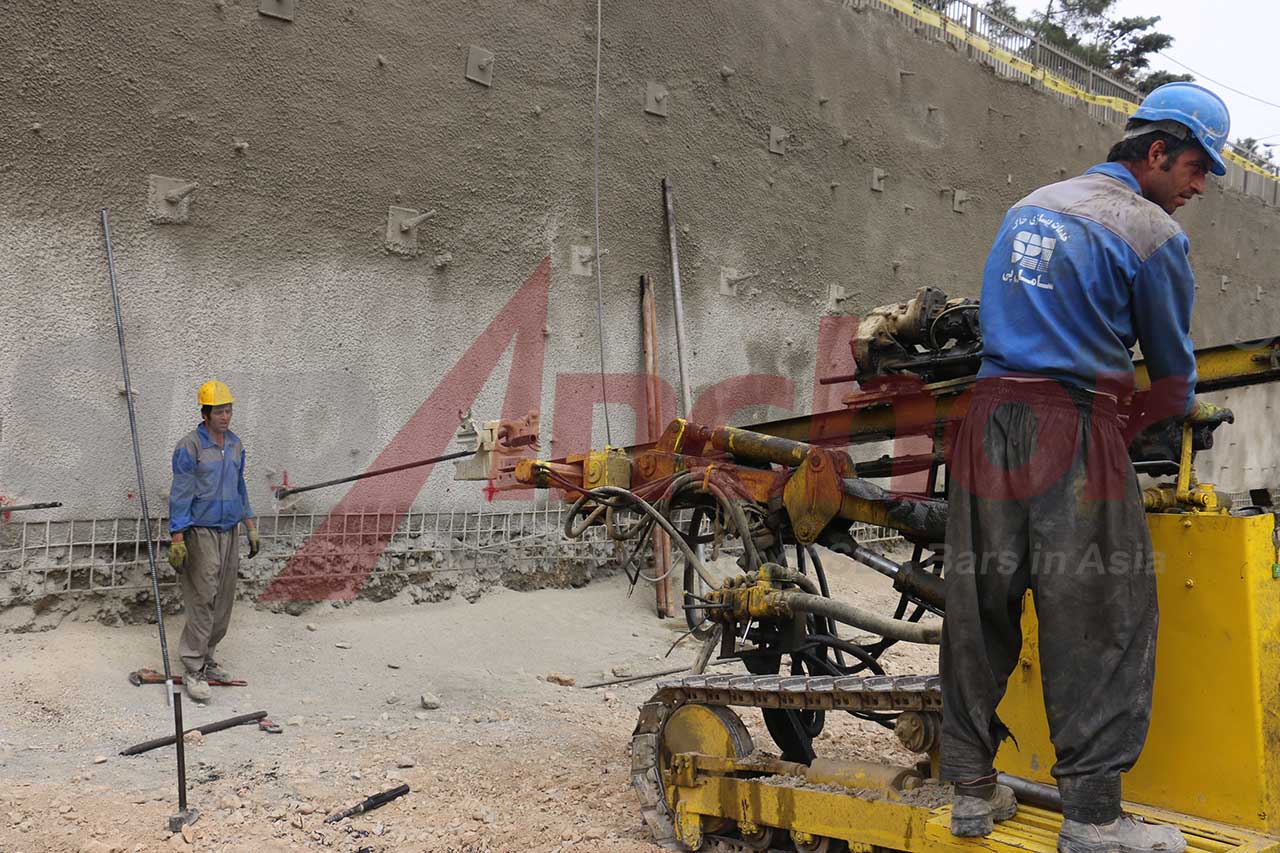

At the core of the operation lay the hollow bar anchor, a multifunctional element that serves simultaneously as a drill rod, injection tube, and permanent reinforcement bar. The construction site image vividly captures the installation: a crawler-mounted rotary percussion drilling rig advances the anchor into the slope, while skilled operators and engineers monitor alignment and penetration rates. The anchor is tipped with a sacrificial tungsten carbide drill bit, enabling it to bore through overburden and fractured bedrock without withdrawal. This drill-and-grout bolt technique eliminates the need for temporary casing, drastically reducing downtime and the risk of ground loss—a critical advantage in collapsing soils and water-bearing strata.

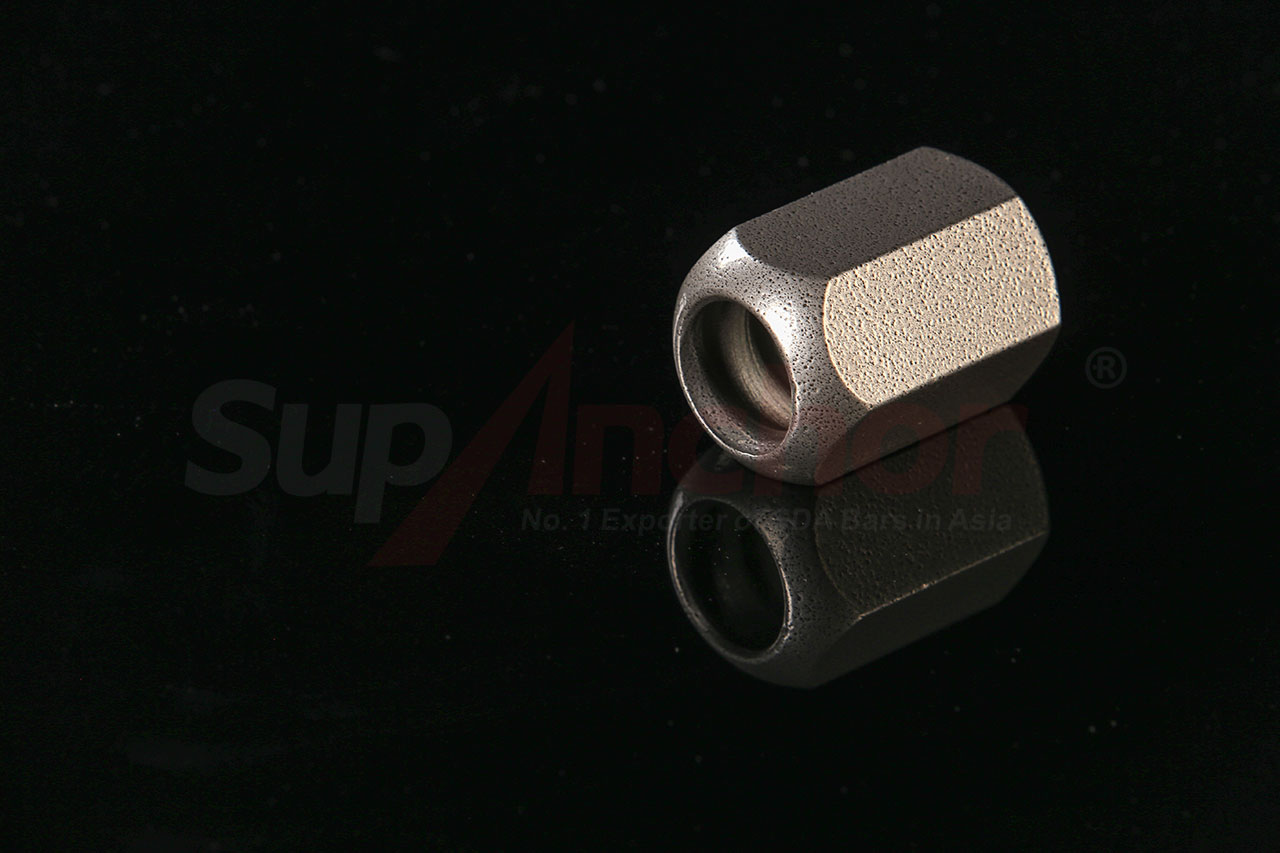

The installation sequence is a marvel of modern geotechnical engineering. The hollow bar, equipped with its drill bit, is connected to the rig’s rotation and percussion head. Water or air is injected through the bar to cool the bit and flush debris, while the bar’s continuous left-hand rope thread transmits torque and impact energy efficiently. Once the target depth is reached, high-pressure cement grout is pumped through the hollow core, filling the annular space and permeating the surrounding soil. As the grout cures, it forms a robust bond, integrating the anchor with the ground. A bearing plate and hex nut are then installed, and where design requires, a controlled preload is applied. This seamless process transforms a simple steel bar into a load-bearing member, capable of withstanding substantial tensile and shear forces.
The project utilized a range of SDA anchors, predominantly the 32 mm diameter, 6-meter-long configuration with hot-dip galvanized corrosion protection. The following table summarizes key technical parameters of the anchors deployed:
| Parameter | Specification |
|---|---|
| Anchor Type | Hollow Bar Self-Drilling Anchor (SDA) |
| Diameter | 32 mm (available range: 25–51 mm) |
| Length | 6 m (customizable up to 12 m with couplers) |
| Tensile Strength (Ultimate) | 280 kN |
| Corrosion Protection | Hot-dip galvanized (≥85 μm zinc coating, ISO 1461) |
| Thread Type | Continuous left-hand rope thread (ISO 10208) |
| Drill Bit | Tungsten carbide cross-cut bit, sacrificial |
| Grout Injection Pressure | Up to 2 MPa through hollow core |
The 280 kN ultimate tensile strength ensures a generous safety margin for slope stabilization, comfortably exceeding the design load of 180 kN. The hot-dip galvanized coating, with a minimum zinc thickness of 85 μm, provides robust long-term protection against the acidic soil conditions prevalent in the region, effectively extending the structure’s service life well beyond 50 years. The choice of 32 mm diameter balanced structural capacity with installation speed, allowing the rig to achieve average penetration rates of 1.5 meters per minute in overburden and 0.8 meters per minute in rock. Moreover, the continuous rope thread permits the use of couplers to join multiple bars end-to-end, offering unparalleled flexibility in anchor length—a crucial feature when encountering unexpected changes in bedrock depth.
Quality assurance played a pivotal role. On-site sacrificial pull-out tests were conducted on several anchors, with results exceeding 320 kN, validating the bond strength and confirming the system’s reliability. This rigorous testing regime underscores why the geotechnical reinforcement system is trusted for critical infrastructure. The drill-and-grout method not only accelerated installation but also minimized spoil generation, aligning with the project’s environmental management plan. By avoiding open-hole drilling, the system preserved the natural mat of vegetation roots on the slope face, reducing erosion risk during construction.
The deployment of this geotechnical reinforcement system exemplifies a broader shift in civil engineering toward adaptable, rapid-install ground stabilization technologies. Urbanization and expanding transportation networks increasingly push infrastructure into geologically complex and environmentally sensitive areas. Slope failures, tunnel collapses, and foundation instability remain costly and dangerous, with the global cost of landslide damages estimated at over $20 billion annually. Solutions like the self drilling anchor for retaining walls and slopes offer a proactive, risk-mitigation approach that is reshaping industry standards.
In tunneling and underground mining, rock bolts have long been the backbone of ground support. However, the self drilling anchor represents a significant evolution, merging the immediate load-bearing capability of a rock bolt for underground mining with the versatility of a micropile hollow bar anchor. Its ability to be installed as a single pass system eliminates separate drilling operations, reducing equipment fleet size, fuel consumption, and overall project carbon footprint. A leading market research firm forecasts the global ground anchor market to grow at a compound annual rate of 6.2% through 2030, fueled by investments in sustainable infrastructure and the rehabilitation of aging assets. The ground anchor bolt factory sector is responding with innovations in high-strength steels and corrosion-resistant alloys.
For soil nail applications, the hollow bar provides a compelling alternative to traditional solid bars. As a soil nail system manufacturer, SupAnchor equips engineers with a versatile component that simplifies logistics and on-site handling. The same anchor can function as a micropile, a ground stabilization anchor system, or a tensile element in cantilever retaining structures. This multifunctionality reduces inventory complexity and accelerates project timelines—a decisive advantage in today’s fast-track construction environment. In urban settings, where vibration and noise restrictions often limit traditional methods, the low-vibration rotary-percussion installation of self drilling anchors meets stringent environmental regulations without sacrificing productivity.
SupAnchor has cemented its reputation as a premier provider of anchor bolt system for geotechnical engineering solutions. The company operates under rigorous ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certifications, ensuring that every product meets exacting international standards. Its SDA bolt factory direct supply model, with a production capacity exceeding 100,000 linear meters per month, guarantees consistent availability, competitive pricing, and traceability—from raw material to final delivery. Strategic manufacturing partnerships and global logistics hubs enable just-in-time delivery to project sites across Europe, North America, and Asia.
Innovation is embedded in SupAnchor’s DNA. The patented thread profile optimizes load transfer and fatigue resistance, while proprietary heat-treatment processes push tensile strengths beyond 600 kN for extreme applications. The company’s R&D team actively collaborates with EPC contractors and geotechnical consultants to develop custom solutions, such as anchors with double corrosion protection (epoxy coating over galvanization) for marine and chemically aggressive environments. The adoption of self drilling bolt for civil engineering in seismic regions is another focus area, with recent testing demonstrating excellent ductility under cyclic loading. Digital integration is on the horizon: SupAnchor is piloting smart anchors equipped with fiber optic sensors for real-time load monitoring, ushering in a new era of intelligent infrastructure asset management.
Collaboration is a cornerstone value. SupAnchor’s engineers engage from the design phase, providing finite element modeling support and installation training to ensure optimal anchor performance. This partnership approach has been instrumental in landmark projects worldwide: from slope stabilization on the Italian high-speed rail network and foundation underpinning for the San Francisco Bay Area Rapid Transit, to portal reinforcement for the Swiss Gotthard Base Tunnel access shafts. These diverse successes validate the system’s adaptability and the company’s commitment to “Professional, Innovative, Collaborative.”
The successful completion of the highway slope project, with all anchors installed ahead of the rainy season and zero incidents, stands as a testament to the power of advanced anchoring technology. By solving immediate construction challenges and delivering a maintenance-free design life, the self drilling anchor system has once again proven to be the backbone of safe, sustainable infrastructure development. As the global construction industry looks to the future, SupAnchor’s continued investment in research, quality, and partnership will undoubtedly drive the next generation of geotechnical reinforcement solutions.
