In a region known for its complex terrain and unpredictable geological conditions, a critical infrastructure project has turned to advanced reinforcement solutions to ensure long-term stability. The project, which involves stabilizing a steep cut slope along a major transportation corridor, required a ground stabilization anchor system capable of navigating loose overburden, fractured rock, and variable groundwater. SupAnchor's self drilling anchor system was selected for its unique ability to drill, grout, and tension in a single pass—eliminating the need for casing and reducing installation time. As global infrastructure spending accelerates, especially in transportation and geotechnical safety, this deployment showcases how innovative hollow bar anchors are reshaping slope reinforcement practices.

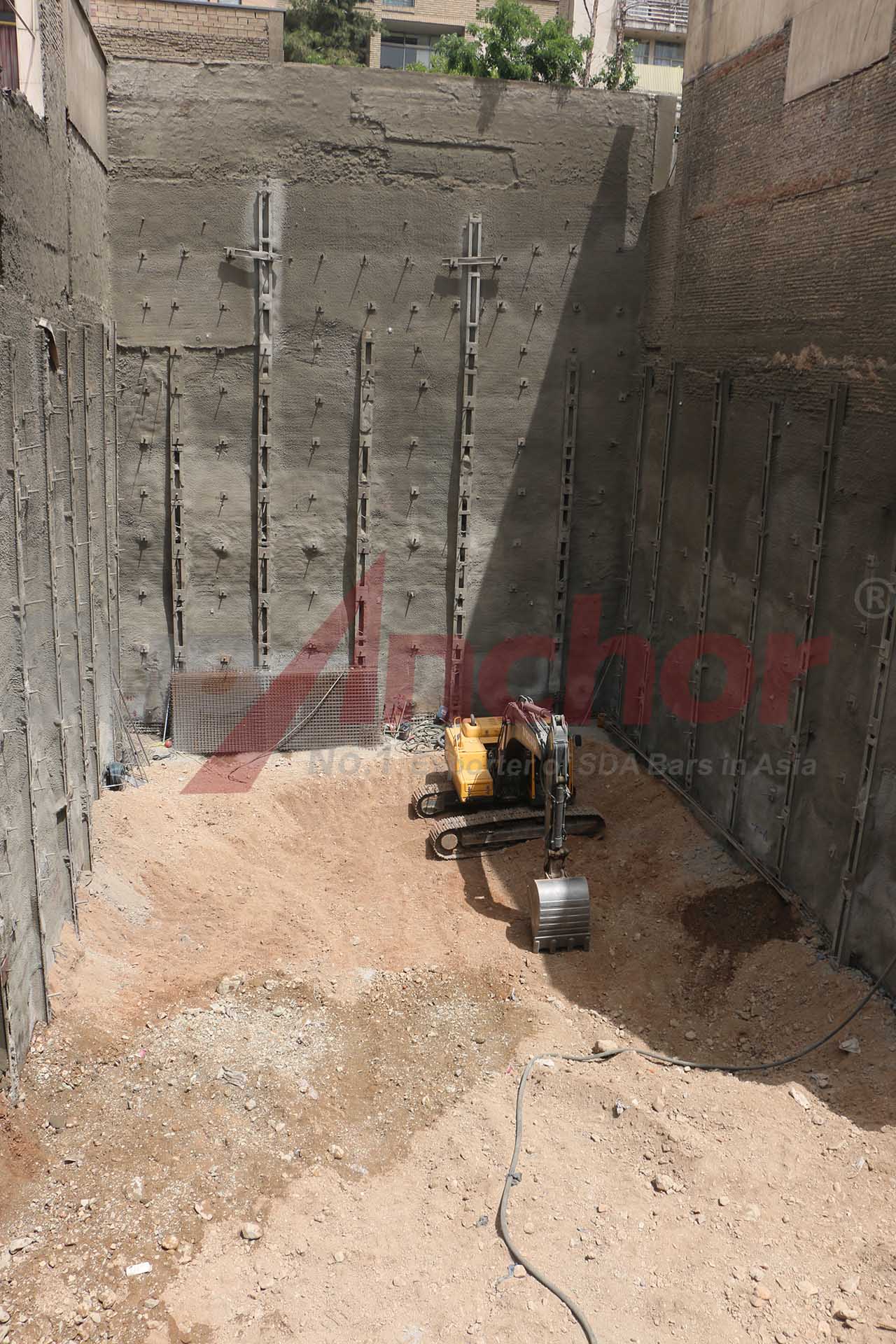

The slope in question presented a classic geotechnical challenge: a mixture of highly weathered schist and colluvial soil with groundwater seepage at multiple levels. Traditional ground anchor bolt factory methods requiring predrilling and casing would have led to hole collapse and excessive grout loss. The construction team instead deployed an SDA bolt factory direct supply solution: SupAnchor's self drilling anchor bolt with integrated drill bit. As seen in the site image, the hollow bar anchor was advanced using a rotary percussive hammer, with cement grout injected through the bar's center as drilling progressed. This drill-and-grout bolt technique immediately stabilized the borehole, prevented collapse, and ensured full encapsulation of the anchor tendon in a single continuous operation.
Workers on the platform guided the self drilling anchor for retaining walls into position, with lengths reaching up to 18 meters to reach competent bedrock. The system’s real-time grout injection allowed visual confirmation of grout return at the collar, guaranteeing complete bonding. Over 400 rock bolt for underground mining and slope support were installed in just 12 days, a pace nearly double that of traditional methods. The rapid installation not only met the project deadline ahead of schedule but also minimized traffic disruption to the adjacent highway—a key concern for stakeholders.
SupAnchor’s self drilling anchor system is engineered for versatility and durability. The specific configuration used on this project met rigorous performance requirements, with parameters that highlight the system’s technical edge:
| Parameter | Specification |
|---|---|
| Outer Diameter | 32 mm (hollow bar) |
| Tensile Strength | 660 MPa (ultimate) |
| Yield Strength | 530 MPa |
| Corrosion Protection | Hot-dip galvanized (minimum 85 microns) to ASTM A153 class 2 |
| Thread Type | ISO self-drilling continuous thread |
| Grout Compressive Strength | >30 MPa after 28 days |
The combination of high tensile and yield strength ensures that each micropile hollow bar anchor can carry substantial loads required for slope stability, while the thick galvanized coating provides long-term corrosion protection even in aggressive soil conditions. The continuous thread along the full bar length allows for coupling and tensioning at any point, offering unmatched flexibility in varying anchorage lengths. This adaptability proved crucial, as the variable bedrock depth demanded on-site adjustments—couplers were quickly added to extend bars without sacrificing performance.

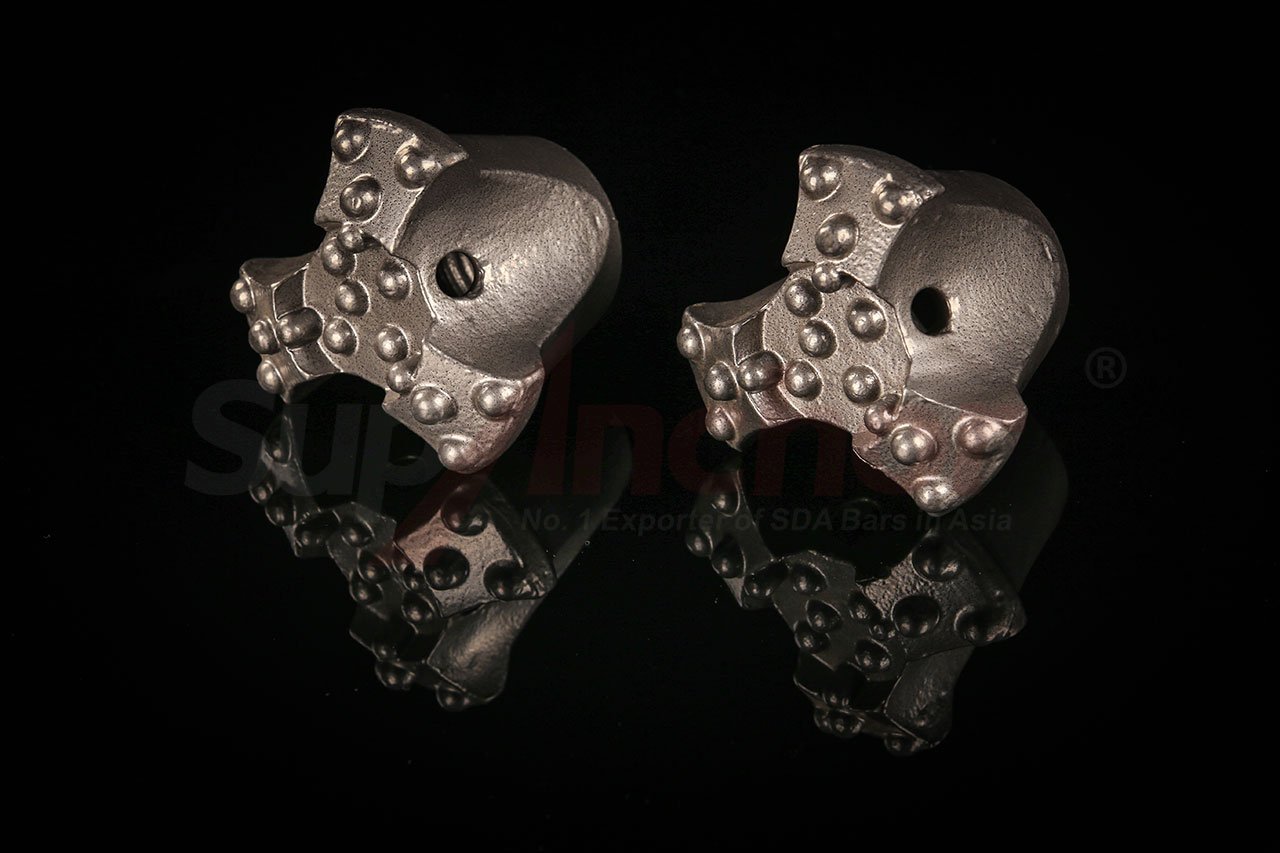

The integrated drill bit system deserves special mention. SupAnchor offers a range of sacrificial bits designed for different ground conditions: cross-cut bits for soft to medium rock, button bits for hard rock, and clay bits for cohesive soils. On this site, the contractor used a combination of button bits for the initial fractured rock section and clay bits for the overburden, achieving penetration rates of 1.5–2 meters per minute. The drill-and-grout bolt method eliminated the need for additional air compressors or separate grout pumps, reducing equipment footprint on the already constrained slope.
The success of this project reflects broader shifts in geotechnical engineering toward more efficient, reliable, and sustainable anchor bolt system for geotechnical engineering. As urbanization puts pressure on transportation networks and climate change intensifies rainfall events, slope stabilization demand is soaring. According to a 2024 report by MarketsandMarkets, the global ground stabilization market is projected to grow at a CAGR of 5.8% through 2029, with hollow bar anchors and self drilling systems gaining share due to their cost-effectiveness in poor ground.
In Europe and North America, stricter environmental regulations are pushing contractors toward methods that minimize spoil disposal and vibration. A self drilling anchor for retaining walls generates no drill cuttings that require off-site treatment—drilled material is incorporated into the grout column. Moreover, by eliminating temporary casing, the system reduces steel consumption, lowering the carbon footprint of each anchor. For a large-scale soil nail system manufacturer like SupAnchor, this alignment with sustainability goals is key to maintaining a competitive edge in mature markets.
Underground infrastructure, too, is witnessing a renaissance. Tunneling for transit, hydroelectric facilities, and mining operations demands reliable ground stabilization anchor system solutions. In tunneling, self drilling anchor bolts are used for forepoling and face stabilization; in mining, rock bolt for underground mining applications benefit from quick installation that enhances safety advance rates. The same principles that made the slope project a success directly translate to these subsurface environments: rapid, reliable support that can be installed with minimal overhead clearance.
Another critical application is in micropile hollow bar anchor foundations for structures in soft soils. The ability to drill with simultaneous grout injection creates a reinforced concrete pile capable of sustaining compression and tension loads. This technique has been used in seismic retrofits and underpinning of heritage structures, demonstrating the versatility of the anchor bolt system for geotechnical engineering.
As the industry moves toward digitalization, instrumentation of ground anchors is becoming standard. SupAnchor hollow bars can be equipped with load cells and corrosion monitoring sensors, feeding data into building information models (BIM) for real-time asset management. This trend aligns with the global push for smart infrastructure and asset resilience.
Behind every reliable geotechnical reinforcement system is a manufacturer that invests in innovation and quality. SupAnchor has built a reputation as a leading ground anchor bolt factory, with ISO 9001 and ISO 14001 certifications underscoring its commitment to quality and environmental management. The company’s R&D team continuously refines thread geometry and heat treatment processes to push the boundaries of strength and corrosion resistance.
But what truly sets SupAnchor apart is its collaborative approach. For this project, engineers from the company worked closely with the contractor to design a tailored solution—adjusting bore diameters, grout mix designs, and installation sequences based on preliminary borehole logs. This “Professional, Innovative, Collaborative” ethos means that clients don’t just receive a self drilling bolt for civil engineering; they gain a partner invested in solving unique challenges. Field support, including training on proper coupling techniques and grout pump settings, was provided on-site, reducing the learning curve for the crew.
SupAnchor’s global footprint includes successful deployments across Asia, Europe, and the Americas. From high-speed rail corridors in Italy to hydroelectric tunnels in Colombia, the company’s SDA bolt factory direct supply model ensures consistent quality without middleman markups. Whether it’s a ground stabilization anchor system for a retaining wall or a rock bolt for underground mining, every product benefits from rigorous testing: tensile tests, fatigue tests, and salt spray corrosion tests are conducted in-house before shipment.
Looking ahead, SupAnchor is exploring advancements in automated drilling rigs that interface seamlessly with self drilling anchor systems, potentially enabling remote installation in hazardous areas. The company’s vision aligns with global megatrends: urbanization demands faster timelines, climate resilience requires higher performance, and safety mandates zero tolerance for failure.
The deployment captured in the accompanying images tells a story of ingenuity. A seemingly insurmountable slope—once a barrier to safe travel—now stands securely reinforced. For the engineers and workers, it’s a testament to what modern geotechnical reinforcement systems can achieve. For SupAnchor, it’s another milestone in a journey toward making infrastructure safer, faster, and more sustainable, one self drilling anchor bolt at a time.
For more information on how SupAnchor’s geotechnical solutions can support your next project, visit their official website or contact their technical team directly.
