SupAnchor® Unveils SupUTS: A High-Capacity Self-Drilling Hollow Anchor for Critical Infrastructure

In the rugged terrain of a mountainous highway expansion, unstable slopes and loose overburden threatened to delay a vital transport link. Traditional drilling methods struggled with collapsing boreholes, while standard anchors failed to deliver the required pull‑out resistance. Facing a tight deadline and zero tolerance for failure, the project team turned to a new generation of geotechnical reinforcement: the SupUTS self‑drilling hollow anchor from SupAnchor®. This case exemplifies a growing global need—anchoring systems that combine rapid installation, uncompromised strength, and adaptability to challenging ground conditions. Enter SupAnchor®, Asia’s largest manufacturer of self‑drilling anchors, with a solution engineered precisely for such demands.

Technical Specifications Built for Extreme Loads

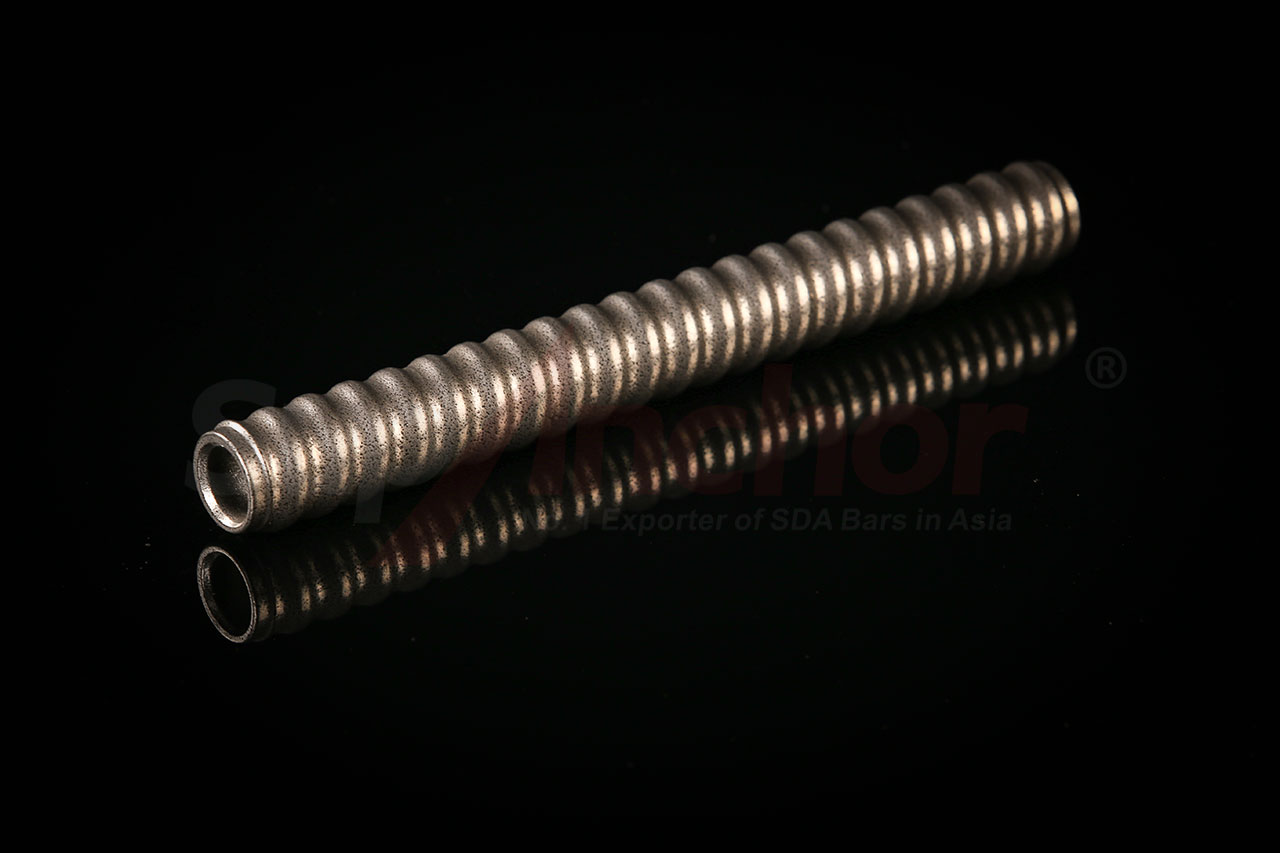

At the heart of the SupUTS series lies a 3‑in‑1 integration principle that has become a hallmark of the wider self drilling anchor system. A single ribbed hollow steel bar acts simultaneously as a sacrificial drill rod, grout injection tube, and permanent reinforcement bar. On-site, this eliminates casing and separate drilling fluids, allowing contractors to drill and grout in one continuous pass—a game‑changer in collapsing sands, sensitive clays, or fractured rock where traditional step‑by‑step methods invite instability. The “UTS” designation, standing for Ultimate Tensile Strength, signals a step change in load capacity over conventional hollow bar anchors.

Key models in the lineup—SSTR32/360, SSTR38/660, and SSTR51/930—showcase a progression of tensile capability that positions this drill‑and‑grout bolt at the forefront of high‑load applications. A summary of their core parameters is presented below.

Note: Yield loads are inferred based on characteristic load ratios typical of SupAnchor’s design philosophy. All models feature standardized thread types (compatible with R/T thread norms), high‑strength steel grades (EN10083‑3/EN10025 series), and a minimum elongation of Agt ≥5% (A100mm ≥6%). Corresponding anchor nuts, couplers, and plates are dimensioned to match each diameter—for instance, SW46/D42/200×200×12 for SSTR32, SW55/D50/250×250×16 for SSTR38, and SW65/D60/300×300×20 for SSTR51.

The engineered rib geometry further amplifies bond strength with cementitious grout. With a relative rib area fR typically between 0.21 and 0.33 and 45° angled rib faces, splitting forces on the surrounding ground are minimized—keeping crack widths under 0.1 mm at maximum load. This precision directly translates into enhanced structural reliability and longer service life, especially in weak or weathered strata.

No geotechnical reinforcement system is complete without robust corrosion protection. The SupUTS series mirrors SupAnchor’s tiered anti‑corrosion strategy: hot‑dip galvanizing for mild environments, SupCoating (hot‑dip galvanizing plus epoxy) for moderate exposure to moisture and chemicals, and full stainless steel for the harshest marine or chemical‑plant conditions. This flexibility allows engineers to tailor the self drilling anchor bolt to project‑specific durability requirements without compromising on mechanical performance.

From Tunnel Inverts to Bridge Abutments: Diverse Application Scenarios

The SupUTS series finds its natural home in heavy‑duty geotechnical undertakings where failure is not an option. Deep foundation reinforcement for high‑rise buildings and large‑span bridges demands ultimate loads that routine soil nail system manufacturers cannot provide. Here, the SSTR51/930, with its near‑1000 kN capacity, steps in as a permanent ground anchor bolt, delivering the necessary factor of safety even under seismic loading.

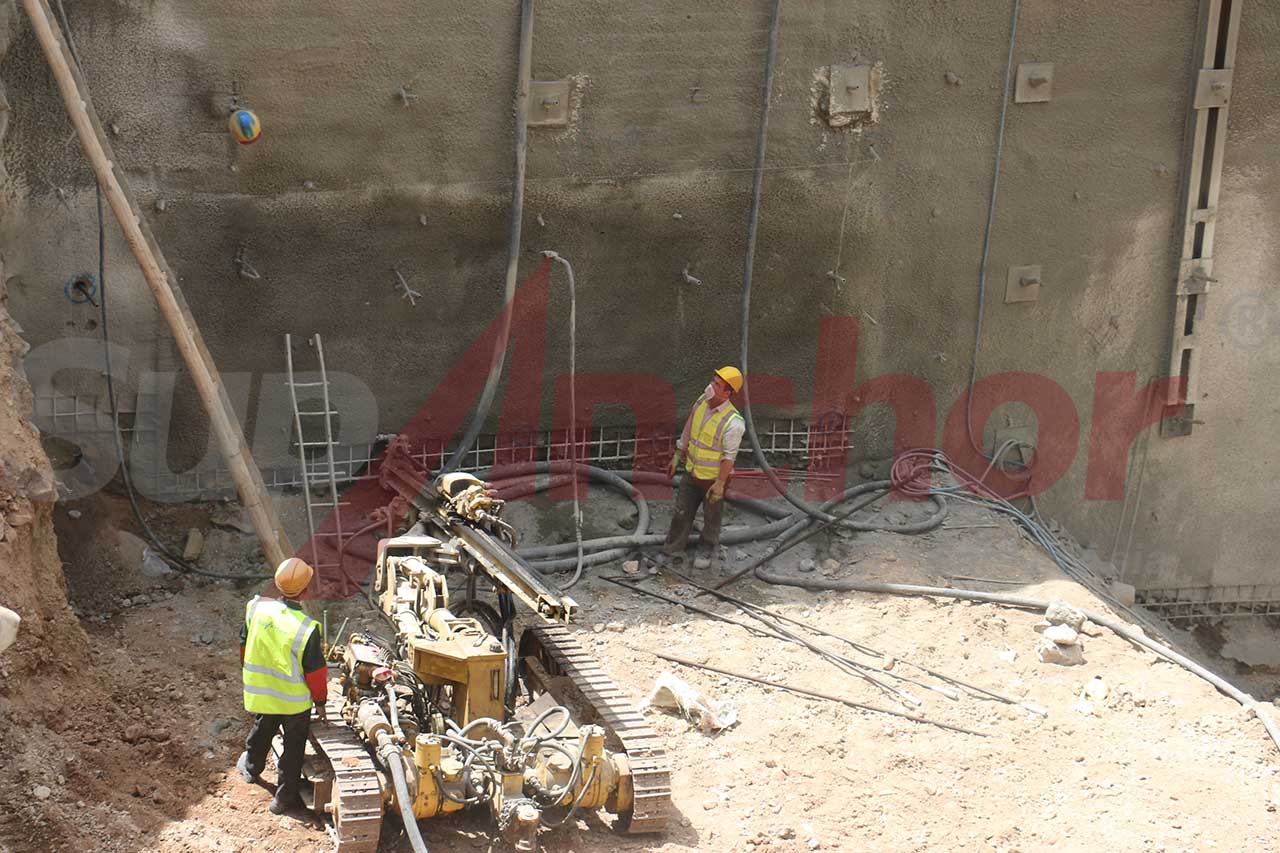

In large‑scale infrastructure projects—motorway interchanges, high‑speed railway embankments, or deep urban excavations—ground conditions rarely cooperate. Soft cohesive soils, running sands, or fractured rock masses call for a drill‑and‑grout bolt that can self‑drill through instability and immediately create a grout‑reinforced bond. The integrated process eliminates the risk of borehole collapse during casing retrieval, a frequent headache in traditional methods. Moreover, the hollow bar anchor’s continuous thread permits on‑site coupling, enabling lengths of 20 meters or more without sacrificing alignment or load transfer.

Water conservancy and coastal defense projects present a different challenge: longevity in aggressive environments. Paired with stainless steel or SupCoating, the SupUTS becomes a trusted component in seawall stabilization, port terminal anchorages, and underground storage caverns. The blend of high tensile strength and tailored corrosion resistance aligns with the durability prescriptions of Eurocodes and other international standards.

Market Impact and SupAnchor’s Global Footprint

The introduction of the SupUTS series comes at a time when global infrastructure investment is surging. Aging tunnels in Europe, new mining developments in the Americas, and urban metro expansions in the Gulf region all require ground anchor bolt factory‑grade reliability combined with construction speed. SupAnchor, as Asia’s leading exporter of self‑drilling anchors, leverages decades of field data and ISO‑accredited manufacturing to refine products like the SupUTS. The brand’s commitment to innovation is evident in the consistent elongation properties, standardized accessory compatibility, and the ability to customize lengths and coatings to project specifications.

Engineering firms and contractors adopting the geotechnical reinforcement system gain more than a product; they gain a collaborative partner. SupAnchor’s application engineers routinely assist with anchor spacing calculations, corrosion risk assessments, and installation training, ensuring that the theoretical strengths of the SupUTS translate into on‑site success. This level of support has earned the company a reputation that spans over 50 countries, from the Alps to the Andes.

In an industry where a single anchor failure can jeopardize a multi‑million‑dollar project, the SupUTS self drilling anchor bolt embodies the Professional, Innovative, and Collaborative ethos that defines the SupAnchor brand. By pushing the boundaries of hollow bar anchor capacity while preserving the simplicity of the drill‑and‑grout method, this system sets a new benchmark for demanding geotechnical applications.
