In a major European infrastructure development, contractors faced highly variable ground conditions—ranging from loose alluvial deposits to fractured rock—that threatened project timelines and worker safety. To address these challenges, the project team selected a self drilling anchor system supplied by SupAnchor, a leading geotechnical reinforcement provider. The system's innovative technology enabled simultaneous drilling, grouting, and anchoring, eliminating the need for casing in unstable formations and significantly reducing installation time.
This comprehensive solution proved critical for stabilizing deep excavations, retaining walls, and tunnel portals. With the ability to install in one pass, the hollow bar anchor provided immediate load-bearing capacity, ensuring ground stability during subsequent construction phases. The project highlights the growing demand for efficient, reliable ground stabilization solutions in complex civil engineering works.

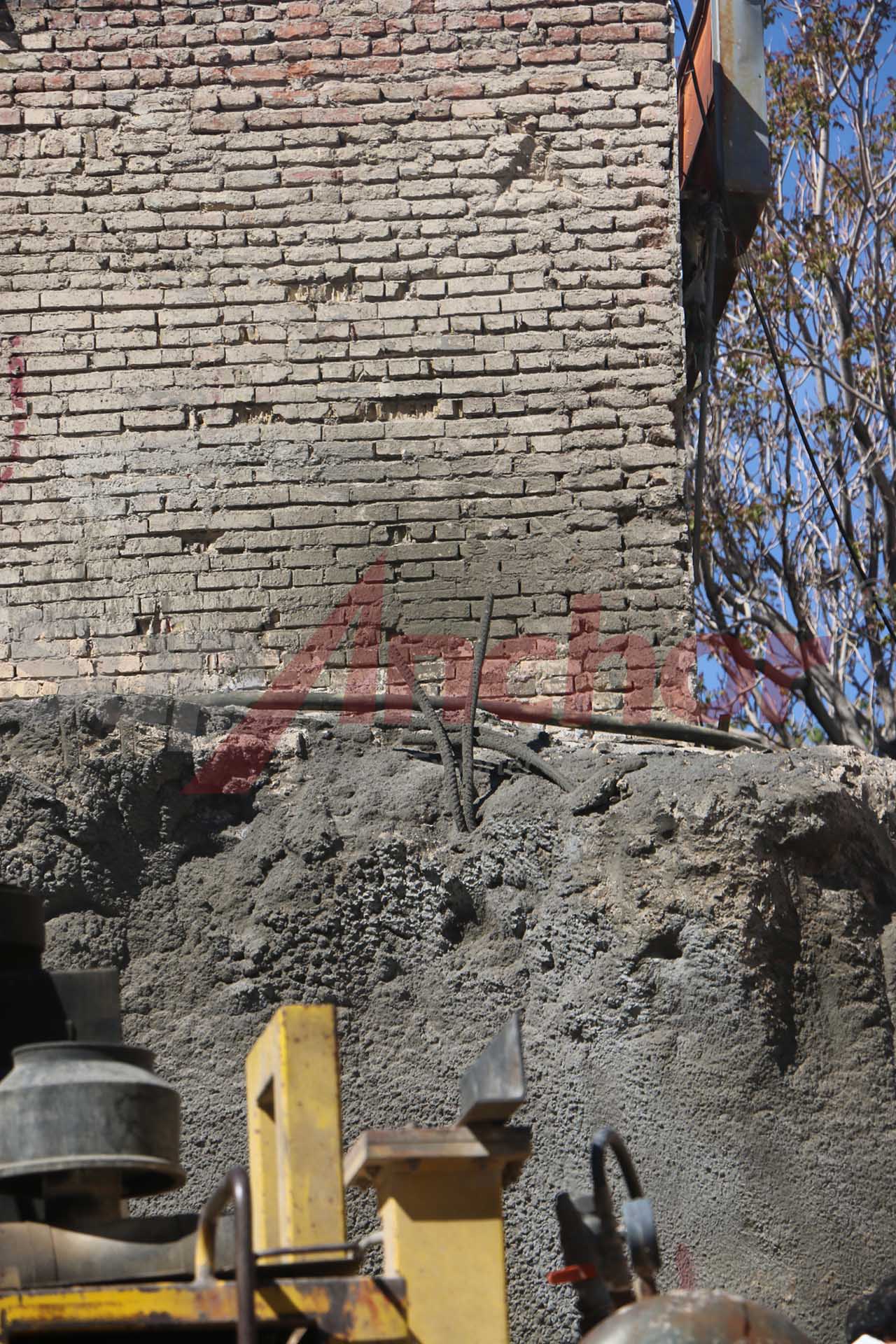

On site, the SupAnchor self drilling anchor system is deployed across multiple work fronts. The image above shows the anchor bars being installed into a steep slope, where traditional drilling methods would require extensive temporary support. The drill-and-grout bolt approach combines a sacrificial drill bit with a hollow steel bar, allowing grout to be injected through the bar as it advances. This creates a rough, interlocking bond with the surrounding ground, enhancing pull-out resistance.
The project's geotechnical engineers specified SupAnchor's R38 and R51 self drilling anchor bolts with nominal outside diameters of 38 mm and 51 mm respectively. These bars deliver ultimate tensile strengths of up to 800 kN and are available in standard lengths from 3 to 12 meters, extendable with couplers. For corrosion protection, the system offers hot-dip galvanizing or double corrosion protection (DCP) with corrugated sheathing and cement grout cover, meeting the 100-year design life required for permanent structures.
The contractor noted, "The self drilling anchor bolt from SupAnchor allowed us to stabilize the slope without stopping traffic on the adjacent highway. Installation speed was remarkable, and the engineering support was invaluable." This endorsement underscores the practical value of the technology in sensitive environments.
The SupAnchor self drilling anchor system is engineered to perform in the most demanding ground conditions. Unlike conventional rock bolts or soil nails, the hollow bar anchor eliminates the separate drilling and grouting steps. Its continuous thread profile allows for coupling and extension, making it suitable for deep installations where multiple bar lengths are needed.
Key technical parameters of the self drilling anchor bolt used in this project are summarized below:
| Parameter | R32 | R38 | R51 |
|---|---|---|---|
| Nominal Outer Diameter (mm) | 32 | 38 | 51 |
| Ultimate Tensile Strength (kN) | 280 | 500 | 800 |
| Standard Length (m) | 3, 4, 6 | 3, 4, 6, 8 | 3, 4, 6, 8, 12 |
| Corrosion Protection | Electro-galvanized, hot-dip galvanized, DCP | Electro-galvanized, hot-dip galvanized, DCP | Electro-galvanized, hot-dip galvanized, DCP |
| Drill Bit Type | Carbide cross-cut / button | Carbide cross-cut / button | Carbide cross-cut / button |
These specifications directly address the project's geological challenges. In the loose, water-bearing sands encountered at the site, the drill-and-grout bolt creates a grout column that stabilizes the borehole immediately. The high tensile strength of the R51 bars provides the required safety margin for the deep excavation support, while the DCP option ensures long-term durability against aggressive groundwater.
Installation efficiency is another key advantage. Using standard rotary-percussive drilling rigs, crews can install 15–20 meters of self drilling anchor bolt per hour, even in boulder-rich ground. The ability to drill and grout in one pass reduces the need for multiple pieces of equipment and minimizes disturbance to adjacent structures. This has proven particularly valuable in urban areas where traffic and environmental constraints demand fast, low-noise operations.
Moreover, the system's adaptability extends to various ground types. Whether penetrating dense glacial till, weathered shale, or running sands, the self drilling anchor system maintains its performance. The sacrificial drill bit is selected based on soil abrasiveness, and the grout mix can be adjusted for fast setting or high flow. This level of customization ensures that each anchor achieves the designed bond strength.
The adoption of geotechnical reinforcement systems is accelerating worldwide as infrastructure owners seek faster, safer, and more cost-effective ground support methods. Whether it's a micropile hollow bar anchor for foundation underpinning, a self drilling anchor for retaining walls, or a rock bolt for underground mining, the same fundamental benefits apply: versatility, immediate load transfer, and adaptability to difficult ground.
In this European project, the system was used for three primary applications:
The ground stabilization anchor system from SupAnchor is not limited to large-scale infrastructure. It is equally effective for residential and commercial projects, such as securing basement walls, stabilizing landslide-prone slopes, and underpinning existing foundations. The ability to use the same self drilling anchor bolt for both temporary and permanent works makes it a favorite among geotechnical contractors.
From an industry perspective, the rising complexity of underground construction—driven by urbanization and the need for resilient infrastructure—places a premium on reliable anchor bolt system for geotechnical engineering. The self drilling bolt for civil engineering reduces reliance on casing and pre-drilling, which are often impossible in collapsing soils. This technology directly contributes to reducing project risks and delays.
Economically, the system offers significant cost savings. By combining drilling and grouting into one operation, contractors reduce labor hours, equipment rental, and material waste. The speed of installation shortens project schedules, which is critical for public infrastructure with strict deadlines. Environmental benefits include less spoil generation and lower noise levels compared to conventional methods, aligning with modern sustainability goals.
As a ground anchor bolt factory with decades of manufacturing experience, SupAnchor has positioned itself as a trusted partner for contractors and engineering firms across Europe, North America, and beyond. The company's commitment to quality is reflected in its ISO 9001 and CE certifications, ensuring every self drilling anchor bolt meets rigorous international standards. SupAnchor's SDA bolt factory direct supply model gives clients direct access to engineering support and fast delivery, a critical advantage in fast-track projects.
The European project showcased SupAnchor's collaborative approach. Engineers from SupAnchor worked alongside the site team to optimize anchor spacing, grout mix designs, and installation sequences. This hands-on support exemplifies the company's core values: Professional, Innovative, Collaborative. By continuously refining its geotechnical reinforcement system, SupAnchor helps clients overcome the toughest ground conditions while maintaining safety and efficiency.
Looking ahead, the global market for soil nail system manufacturer products is projected to grow steadily, driven by investments in transportation, water management, and renewable energy infrastructure. The versatility of the self drilling anchor system makes it a key technology for these sectors. Whether anchoring wind turbine foundations, reinforcing mine tunnels, or stabilizing highway cuts, SupAnchor's hollow bar anchor solutions deliver proven performance.
For project owners and contractors, selecting the right ground stabilization anchor system is a strategic decision. It requires evaluating ground conditions, design loads, corrosion environments, and installation constraints. SupAnchor's technical team provides comprehensive support, from preliminary design to on-site training, ensuring that each self drilling anchor bolt performs as intended. This dedication to excellence has earned SupAnchor a reputation as a leading provider of anchor bolt system for geotechnical engineering worldwide.
In conclusion, the European infrastructure project demonstrates the clear advantages of using SupAnchor's self drilling anchor system in challenging ground. By combining advanced manufacturing with field-proven engineering, SupAnchor delivers geotechnical reinforcement systems that meet the highest standards of safety, durability, and efficiency. As the industry evolves, SupAnchor remains at the forefront, helping build the foundations of a more resilient world.
