In an era where infrastructure resilience is paramount, SupAnchor® has unveiled its latest innovation: the SupFRP® GFRP Solid Bolt. Designed to tackle the harshest geotechnical challenges—from coastal slope stabilization to deep mine roadway reinforcement—this high-performance anchoring system eliminates the vulnerabilities of traditional steel bolts while delivering uncompromising load-bearing capacity. With global mega-projects demanding materials that outlast concrete and rock, SupAnchor’s solid bolt is poised to redefine durability in underground construction and soil retention.

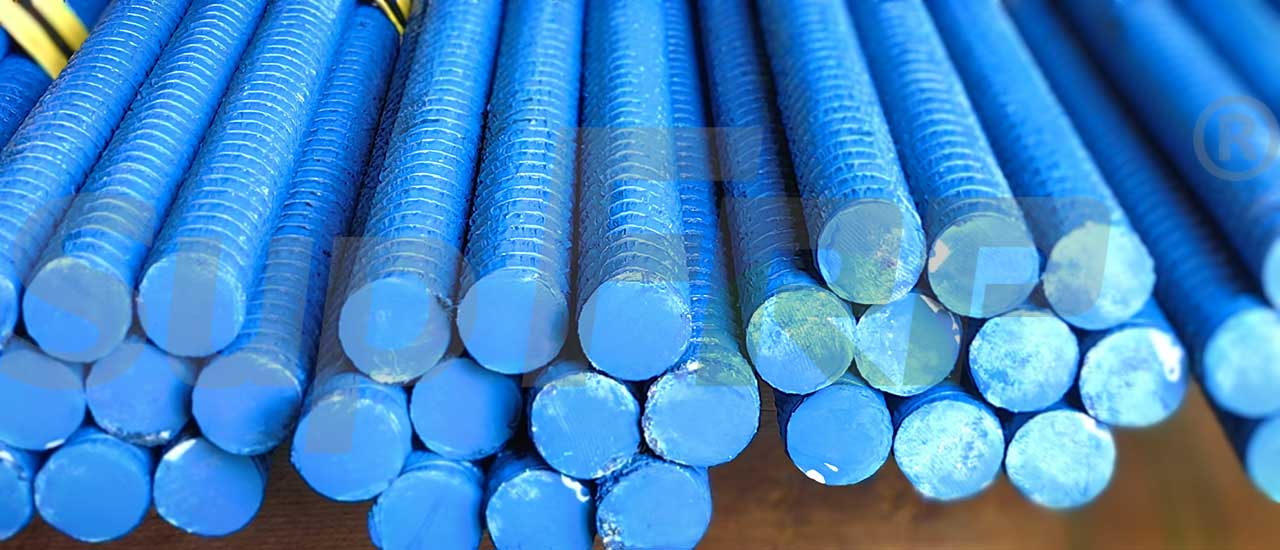

Constructed from premium Glassfiber Reinforced Polymer (GFRP), the solid bolt boasts a unique solid cross-section that contrasts sharply with hollow injection bolts commonly used in the self drilling anchor system category. This monolithic structure, combined with a purpose-designed waved thread, ensures exceptional bonding with grouting media and surrounding rock mass. Where drill-and-grout bolts often contend with air pockets and uneven mortar distribution, the SupAnchor solid bolt provides a fully integrated anchorage, making it a superior geotechnical reinforcement system.
The product line spans five diameters, each calibrated for specific load requirements:
| Model | Outside Diameter (mm)¹ | Guaranteed Tensile Load (kN) | Weight (kg/m) |
|---|---|---|---|
| S20/200 | 20 | 200 | 0.52 |
| S22/240 | 22 | 240 | 0.62 |
| S25/320 | 25 | 320 | 0.83 |
| S28/400 | 28 | 400 | 1.04 |
| S32/500 | 32 | 500 | 1.30 |
¹Outer diameter encompasses the waved thread profile for enhanced bonding. All models feature a tensile E-modulus of 45 GPa and an ultimate strain of 2.0%, with left- or right-hand thread options and lengths from 2 to 11 meters.
These parameters directly address the critical needs of modern rock support. The guaranteed tensile loads—reaching 500 kN—enable the bolt to serve as a primary reinforcement in heavily fractured rock masses. Meanwhile, the featherlight density (roughly one-quarter that of steel) transforms logistics for remote or alpine projects where helicopter delivery of ground anchor bolt factory supplies is often necessary. On-site cutting with standard tools eliminates the risk of damaging tunnel boring machines or mining equipment, a frequent headache with steel alternatives.
Perhaps the most transformative advantage lies in the bolt’s innate immunity to corrosion. In saline-alkali environments, acidic mine waters, or coastal slopes battered by salt spray, steel hollow bar anchors succumb to rust within years, demanding costly refurbishment or replacement. The GFRP solid bolt, by contrast, remains inert regardless of pH or moisture levels. This property extends design life well beyond a century, making it ideal for permanent installations such as dam abutments, buried nuclear waste repositories, and subsea tunnel linings. For soil nail system manufacturer clients, incorporating such durable elements can dramatically reduce whole-life project costs and maintenance liabilities.
Early adoption has already begun on several landmark projects. In a Swiss alpine highway expansion, S28/400 bolts are securing unstable schistose rock faces above a vital transit corridor, where freezing-thaw cycles and heavy snowfall imposed an unrelenting fatigue test. In Chile's Atacama Desert copper mines, the non-conductive and non-magnetic nature of the S32/500 model proves indispensable near sensitive electrical substations and ore-processing sensors, where a steel bolt would create a short-circuit hazard. Moreover, the bolt’s easy cuttability allows continuous mining operations without changing drill bits—a stark contrast to the hardened steel hollow bar anchor requiring torches or specialized gear.
For urban tunneling under historic districts with strict vibration and electromagnetic limits (e.g., London’s Crossrail extension), SupAnchor’s bolt minimizes stray current interference with buried utilities and metro signaling systems. Such versatility positions the product as a universal tool in the geotechnical reinforcement system arsenal, adaptable to drill-and-blast, TBM, or cut-and-cover methods.
This launch reinforces SupAnchor’s standing as a top-tier ground anchor bolt factory and soil nail system manufacturer. With ISO 9001- and ISO 14001-certified production lines, the company has supplied self drilling anchor systems to over 40 countries, including the Öresund Bridge pylons, Sydney Metro rock caverns, and the Panama Canal slope stabilization. Their research and development team continuously refines thread geometries, resin matrices, and hybrid fiber configurations to meet evolving Eurocode and ASTM standards.
“Our clients don’t just buy a bolt; they gain a collaborative engineering partnership,” notes the senior product manager. “From subsea tunnels to open-pit mines, we tailor the anchor solution to the geology, not the other way around.” This customer-centric philosophy has cemented SupAnchor’s role in global consortia tackling complex underground works, often as the nominated self drilling anchor bolt supplier.
As the construction industry pivots toward sustainable, low-maintenance infrastructure, the GFRP solid bolt emerges as a strategic choice. By marrying advanced polymer science with practical site demands, SupAnchor delivers a solution that not only meets today’s safety codes but also anticipates the harsh operating conditions of tomorrow. For project owners and engineers seeking decades of trouble-free performance, the SupFRP® Solid Bolt represents a new benchmark in geotechnical reliability.
