In a major infrastructure undertaking, engineers faced unstable ground conditions that demanded a robust geotechnical reinforcement solution. The project, located in a seismically active region with fractured rock and high groundwater, required immediate support to prevent slope failure during excavation. SupAnchor’s self drilling anchor system proved instrumental in securing the site, demonstrating the critical role of advanced anchoring technology in modern civil engineering.

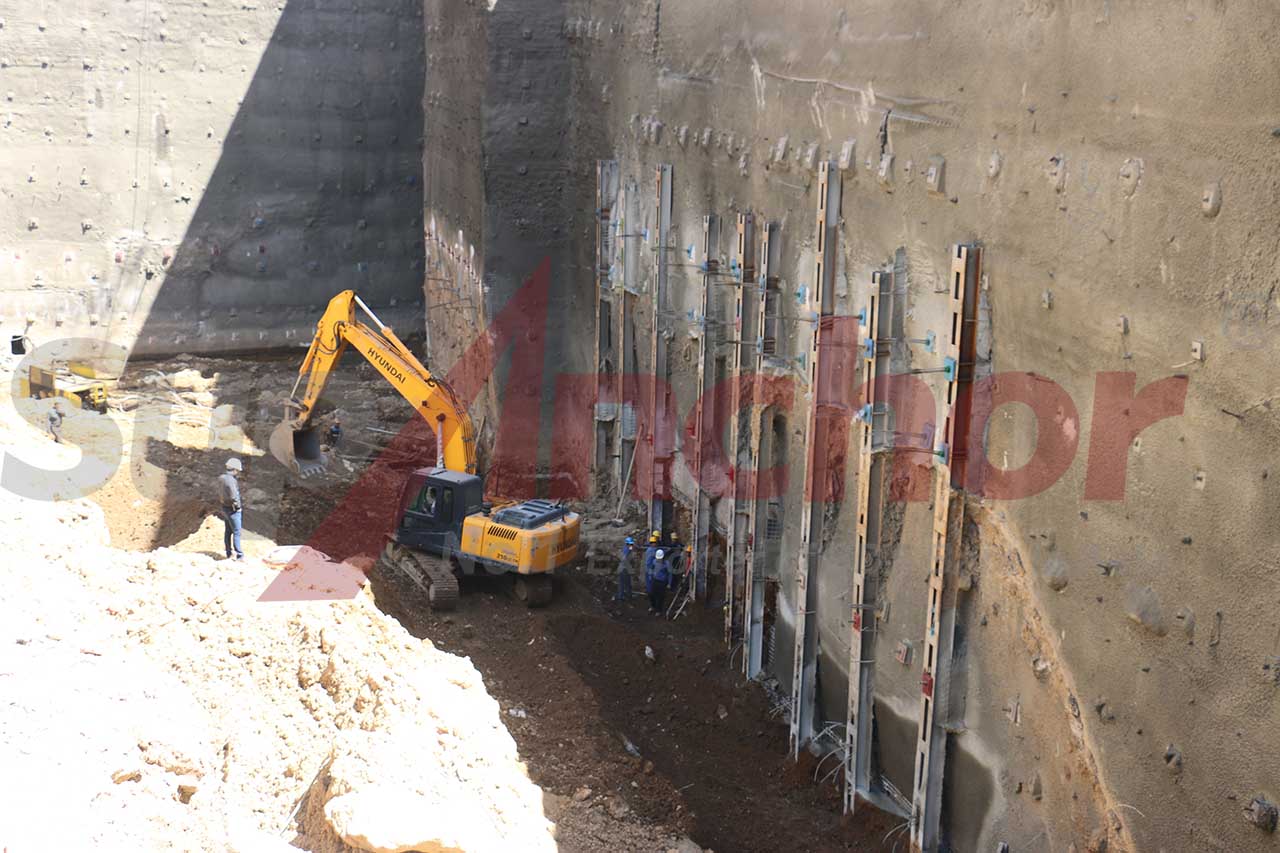

The image captures the essence of the operation: workers are installing SupAnchor’s self drilling anchor bolts into a steep cut, where traditional drilling methods would have struggled. The area, characterized by weathered shale and intermittent water inflow, necessitated a system that could simultaneously drill and grout without casing. SupAnchor’s hollow bar anchors, which function as both drill rod and anchor, were deployed to depths exceeding 12 meters. Their ability to displace soil and rock while injecting grout ensured immediate load transfer, preventing collapse and securing the working platform.
The anchors used in this project were selected based on precise engineering calculations. SupAnchor offers a range of diameters and grades to match specific ground conditions. The following table summarizes key specifications:
| Parameter | R32 | R38 | R51 |
|---|---|---|---|
| Hollow Bar Outer Diameter (mm) | 32 | 38 | 51 |
| Minimum Tensile Strength (kN) | 280 | 500 | 800 |
| Standard Length (m) | 3, 4, 6 (up to 12 coupled) | 3, 4, 6 (up to 15 coupled) | 3, 4, 6 (up to 15 coupled) |
| Corrosion Protection | Hot-dip galvanized (min 70 microns), epoxy coating, or DCP | Hot-dip galvanized (min 70 microns), epoxy coating, or DCP | Hot-dip galvanized (min 70 microns), epoxy coating, or DCP |

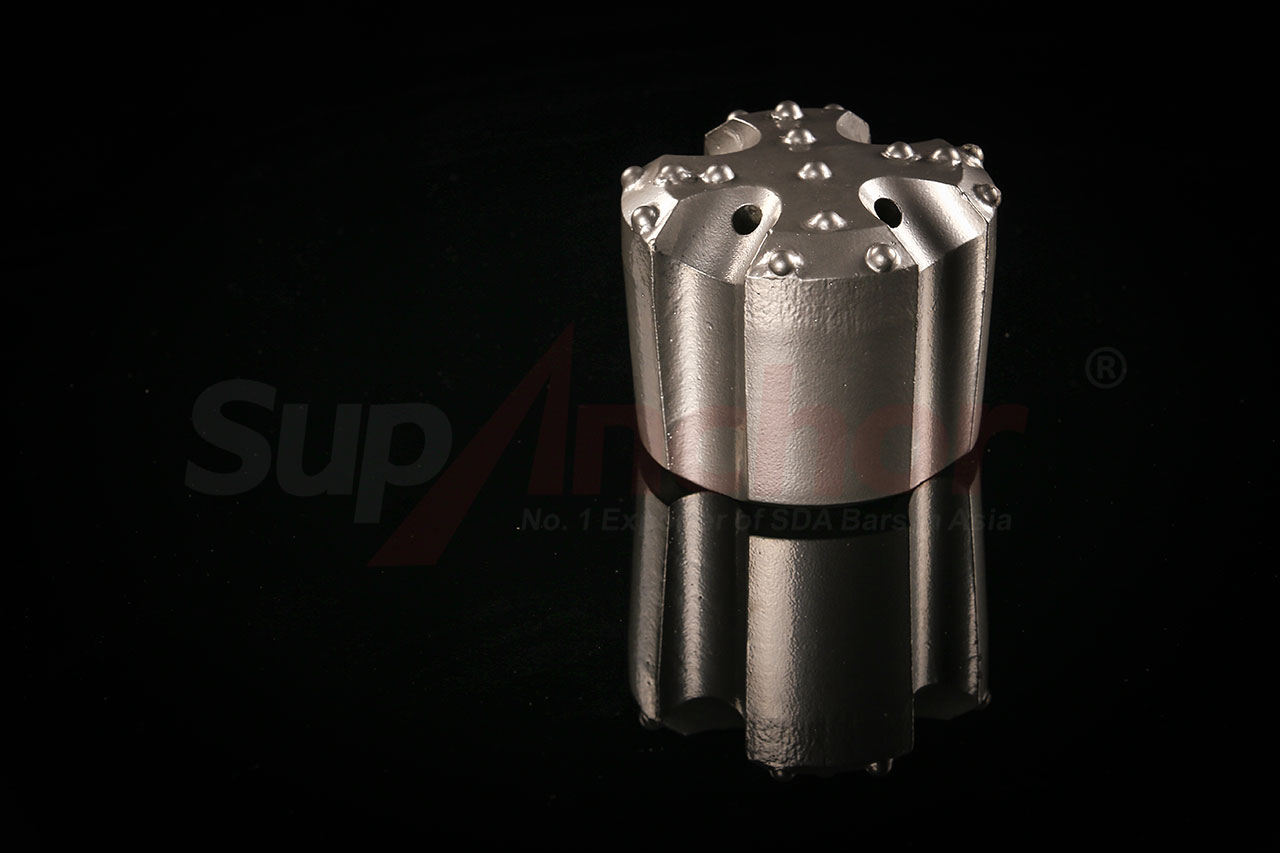

| Drill Bit Types | Cross-cut, button, clay, rotary | Cross-cut, button, clay, rotary | Cross-cut, button, clay, rotary |
On-site, the R38 variant was predominantly used due to its optimal balance of strength and installation speed. The drill-and-grout bolt technique allowed for rapid installation—each anchor was placed in under 15 minutes—even through difficult strata. Grout flows through the hollow core, filling the annulus and improving bond strength. This geotechnical reinforcement system also resists corrosion thanks to the factory-applied hot-dip galvanizing, extending service life even in aggressive environments.
The installation process begins with selecting an appropriate drill bit for the ground. Workers then attach the hollow bar to the drilling rig, and as rotation and percussion commence, grout is pumped through the bar. The drill-and-grout action ensures immediate skin friction, which is critical in preventing hole collapse. Once the design depth is reached, the rig is detached, and a bearing plate and nut are installed. This seamless workflow reduces time on the active face, enhancing safety.
Throughout the project, SupAnchor engineers maintained close collaboration with the site team to monitor installation data. Pull-out tests verified that each anchor exceeded the design load, with typical values reaching 120% of the specified capacity. The hollow bar anchor's thread profile, designed for high shear strength, ensured reliable coupling even under dynamic loading. This project not only demanded mechanical performance but also environmental compatibility: the grout used was a low-shrinkage, sulfate-resistant mix to counter the aggressive groundwater, further extending the system's lifespan.
Quality checks included ultrasonic testing of the hollow bar welds and regular calibration of grout pumps. As a SDA bolt factory direct supply, SupAnchor guarantees traceability from raw material to installation, a critical factor for projects pursuing green building certifications such as LEED or BREEAM. The self drilling anchor for retaining walls here served as both permanent and temporary support, demonstrating adaptability that reduced material waste and construction time.
Global infrastructure investment is driving demand for reliable ground stabilization anchor systems. From European rail tunnels to North American highway retaining walls, the self drilling anchor for retaining walls has become a preferred method. This project exemplifies how micropile hollow bar anchors provide immediate support in areas where time is a constraint. The ability to install rock bolts for underground mining and tunneling in a single pass reduces labor and equipment costs, aligning with lean construction principles.
Moreover, the versatility of the self drilling bolt for civil engineering extends to slope remediation and foundation underpinning. As urban centers expand into geologically challenging zones, anchor bolt systems for geotechnical engineering are indispensable. SupAnchor’s SDA bolt factory direct supply model further accelerates project timelines by delivering tailored solutions quickly. In flood-prone areas, the corrosion-resistant properties of these anchors are vital for long-term waterway infrastructure.
In the mining sector, where safety and efficiency are paramount, the rock bolt for underground mining must endure dynamic loads and corrosive environments. SupAnchor’s double corrosion protection system, available upon request, meets the long-term durability needs of deep mines. The company’s anchor bolt system for geotechnical engineering has been proven in numerous high-profile projects, underscoring the industry’s shift toward holistic, resilient design. Recent advancements in material science have also allowed for higher-strength steels, enabling smaller diameters to carry equivalent loads, reducing installation time and material cost.
Behind the success of this project lies SupAnchor’s commitment to technical excellence. With ISO 9001, ISO 14001, and CE certifications, SupAnchor maintains stringent quality management. Their in-house R&D team continuously refines the hollow bar anchor geometry and thread design to optimize load transfer and corrosion resistance. As a leading ground anchor bolt factory, SupAnchor serves clients across Europe, the Americas, and Asia, providing end-to-end support from design consultation to on-site training.
The collaborative ethos of SupAnchor is reflected in the way they work with engineers to select the ideal self drilling anchor system for each unique ground condition. Whether it’s a soil nail system manufacturer’s standard product or a customized drill-and-grout bolt array, the company’s solutions are engineered for reliability. This project stands as another testament to how SupAnchor’s geotechnical reinforcement system is shaping the future of construction.
By prioritizing innovation and adhering to rigorous standards, SupAnchor has become a trusted name among ground anchor bolt factory suppliers. Their micropile hollow bar anchors have been used in landmark projects ranging from high-speed rail networks to deep excavation sites. The ability to supply a complete self drilling anchor system directly from the factory ensures quality control and cost-effectiveness, which is why more contractors and engineers are turning to SupAnchor for their self drilling bolt for civil engineering needs.
For more information on SupAnchor’s full range of ground stabilization anchor systems, including micropile hollow bar anchors and self drilling bolts for civil engineering, visit www.supanchor.com.
