In a large-scale underground mining operation in southern Europe, unstable rock formations and fractured ground conditions posed significant safety risks to workers and equipment. The project required a reliable ground support system that could be installed rapidly while providing immediate load-bearing capacity. After evaluating multiple geotechnical reinforcement systems, the engineering team selected SupAnchor's SupShell expansion rock bolts, a proven hollow bar anchor solution designed for such demanding environments. This decision not only met the stringent safety requirements but also streamlined the installation process, reducing overall project downtime.

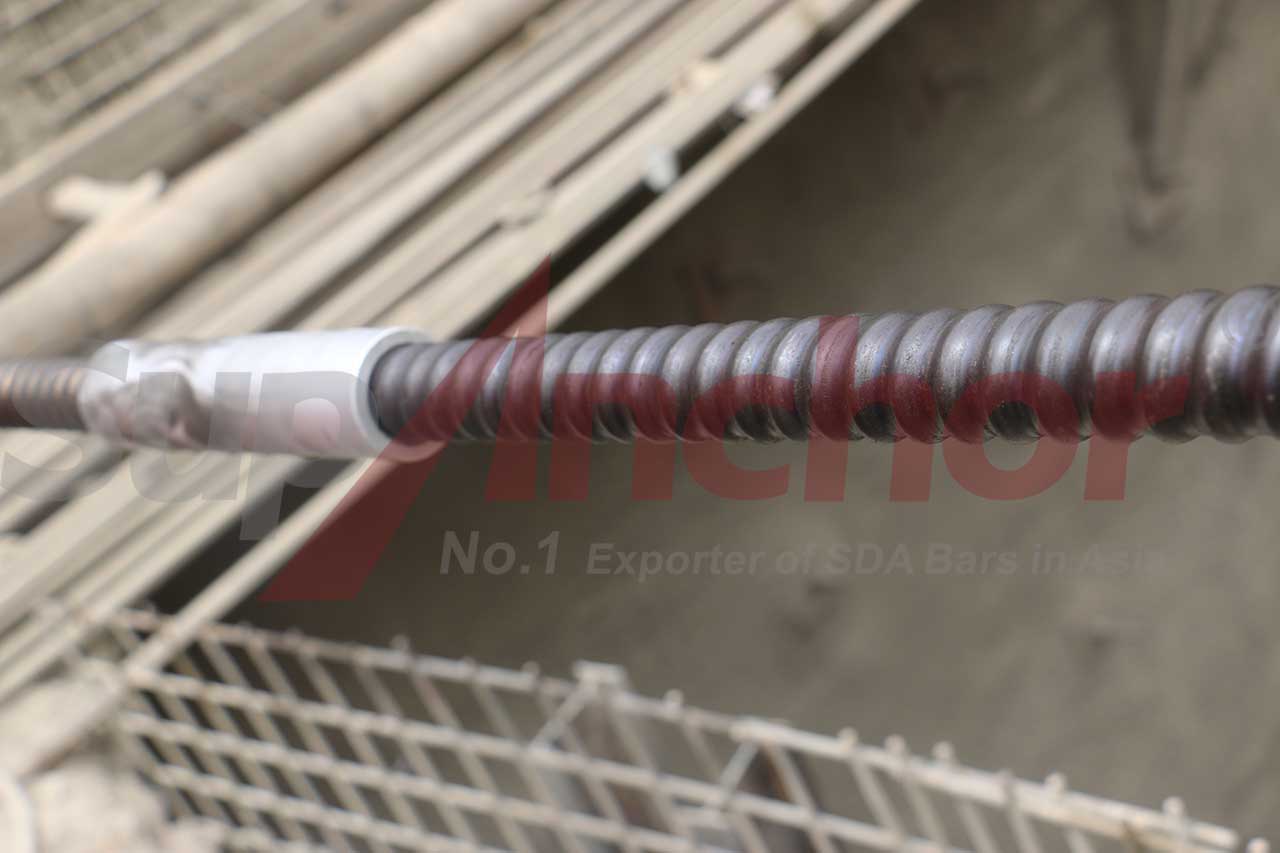

The SupShell system, part of SupAnchor's comprehensive self drilling anchor product line, features an expansion shell that delivers immediate mechanical anchorage upon installation. This quick-setting capability was critical in areas with loose rock where delayed support could lead to dangerous collapses. By integrating a hollow core for subsequent grouting, the bolts also provided long-term chemical anchorage, ensuring durable strata control throughout the mine's lifespan.
The SupShell expansion rock bolt system distinguishes itself through a combination of immediate mechanical anchoring and versatile grouting options. Unlike conventional rock bolts, these hollow bar anchors enable both pre- and post-grouting, adapting to varying geological conditions. During installation, the bolt is inserted into a pre-drilled hole, and the expansion shell is activated to create a firm grip against the rock surface. This immediate anchorage allows workers to tension the bolt and proceed with further activities without waiting for grout to cure.
Once the shell is set, grout is injected through the center hole from the bottom, filling the entire annulus and bonding the bolt to the surrounding rock. A plastic sealing element at the collar prevents grout leakage, ensuring complete encapsulation and protection against corrosion. For projects in highly corrosive environments, SupAnchor offers a galvanized option compliant with the ISO 1461 standard, significantly extending the service life of the reinforcement.
The system's engineered parameters cater to a wide range of borehole sizes and rock strengths. Below is a summary of the key technical specifications for the most common SupShell models:
| Model | Outside Diameter (mm) | Drilling Hole Diameter (mm) | Length (mm) | Weight (kg/m) |
|---|---|---|---|---|
| R25/EX36 | 36 | Φ40-Φ42 | 132 | 0.62 |
| R28/EX40 | 40 | Φ44-Φ46 | 136 | 0.84 |
| R32/EX44 | 44 | Φ48-Φ50 | 135 | 0.82 |
| R32/EX46 | 46 | Φ50-Φ52 | 176 | 1.2 |
| R32/EX48 | 48 | Φ52-Φ54 | 165 | 1.45 |
All models feature ISO 10208 thread profiles (R25, R28, R32) and are manufactured from CK45 steel, ensuring high tensile strength and consistent performance. In the European mine project, engineers predominantly used the R32/EX48 variant, which offered the optimal balance of weight, hole compatibility, and anchorage force for their 52–54 mm boreholes. The immediate load-bearing capability of the expansion shell minimized the time between excavation and support installation, a crucial factor in weak rock masses prone to rapid deformation.
Beyond the raw parameters, several design features contributed to the system's success. The self-drilling anchor bolt design allowed for single-pass installation where conditions permitted, eliminating the need for separate drilling and casing steps. The hollow bar enables efficient grout flow, reducing pumping pressures and ensuring full column bonding. Field data from the project indicated a 30% reduction in installation time compared to traditional split-set or resin-anchored bolts, directly improving advance rates and lowering labor costs.
The SupShell expansion rock bolt system addresses a critical need in modern underground construction and mining: reconciling speed with safety. In sectors where ground support delays can cost thousands of dollars per hour, the immediacy of the expansion shell's mechanical anchorage is a game-changer. Whether in hard-rock tunnels, coal mines, or soft-ground caverns, the ability to tension a bolt upon installation and later grout it for permanent support represents a flexible, two-in-one solution.
From a global geotechnical perspective, this drill-and-grout bolt technology is gaining traction in infrastructure projects that demand high corrosion resistance and seismic resilience. The galvanized variant, compliant with ISO 1461, has been specified in coastal tunneling projects across Southeast Asia and the Middle East, where saline groundwater attacks conventional steel. By offering a product that meets European standard EN 10083, SupAnchor ensures that its expansion shell hollow anchors can be seamlessly integrated into the world's most rigorous quality frameworks.
Furthermore, the system's compatibility with pre-grouting enhances its value in water-bearing formations. In a recent hydropower tunnel project in South America, the SupShell bolts were installed ahead of the face to consolidate fractured, water-saturated rock. The immediate anchorage provided a safe drilling platform, while the subsequent grouting sealed water ingress and unified the rock mass. Such versatility makes the SupShell a cornerstone of modern geotechnical reinforcement systems.
SupAnchor's reputation as a leading ground anchor bolt factory stems from decades of R&D focused on field-proven solutions. The SupShell expansion rock bolt system exemplifies the company's philosophy: combine robust mechanics with practical installation simplicity. Every component, from the CK45 steel bar to the high-strength expansion shell, is manufactured under strict ISO-certified quality management, ensuring that each bolt meets the demands of punishing underground environments.
In collaboration with mining engineers and tunneling contractors worldwide, SupAnchor continuously refines its self drilling anchor system offerings. Feedback from the European mine project led to enhancements in the plastic sealing element, improving its durability against aggressive grout mixes. Such iterative innovation has cemented SupAnchor's role as a strategic partner in over 40 countries, supporting projects that range from subway construction to ore extraction.
As infrastructure investment grows to meet urbanization and energy demands, the need for efficient, reliable ground support will only intensify. SupAnchor's SupShell expansion rock bolts, with their dual mechanical and chemical anchorage, are poised to become a standard in the industry's toolkit—delivering the safety, speed, and longevity that today's projects require.
