SupAnchor Self Drilling Anchor System Redefines Geotechnical Safety in Major North American Infrastructure Corridor

In a landmark infrastructure project threading through the seismically active and geologically complex Cascade Mountain range, a leading North American transportation authority has turned to an advanced geotechnical reinforcement system to secure a critical highway tunnel. The project, part of a $2.4 billion corridor improvement program, demanded a robust, time-efficient ground support solution capable of handling highly fractured and water-bearing rock formations. After rigorous evaluation, the contractor selected SupAnchor’s self drilling anchor system, a move now hailed by engineers as a game-changer for North American tunneling and slope stabilization practices.

The challenges were formidable. Preliminary site investigations revealed a mixed face of heavily jointed basalt, decomposed granite, and frequent shear zones with groundwater inflows exceeding 50 liters per second in some sections. Conventional drill-and-blast methods required extensive pre-support that caused delays and safety concerns. The project’s geotechnical lead, Dr. Alan Merrick, explained: “We needed a solution that could deliver immediate active support in collapsing ground, without the risk of borehole collapse that plagues traditional hollow bar anchors. The self drilling anchor bolt from SupAnchor proved ideal because it combines drilling, grouting, and anchoring in a single pass, drastically reducing installation time and enhancing safety.”

On-Site Deployment: Precision in Adverse Conditions

The construction image captures the essence of this high-stakes operation. Workers in protective gear are seen installing a series of 6-meter-long self drilling anchor bolts along the tunnel’s crown, using custom-designed hydraulic rotary-percussive rigs. The sacrificial drill bit, integrated with the hollow bar, penetrates the fractured rock while continuously flushing cuttings with a controlled grout stream. Immediately upon reaching the design depth, the same hollow bar serves as a reinforced grout duct, creating a monolithic bond with the surrounding ground. This drill-and-grout bolt methodology not only provided face stability within minutes but also established a permanent ground arch that redistributed stresses around the excavation.

SupAnchor’s technical team collaborated closely with the contractor to tailor the system parameters to the site’s dynamic geology. The deployed anchor bolt system for geotechnical engineering featured the following key specifications, ensuring compliance with both ASTM and EN standards:

The high tensile capacity was critical for suspending the fractured blocks, while the hot-dip galvanized coating ensured a 100-year service life in the aggressive mountain water chemistries. Project manager Sarah Lin noted, “We’ve used other rock bolt for underground mining products in similar conditions, but the SupAnchor system’s integrated approach and consistent factory direct supply chain made a measurable difference in our advance rate.”

Moreover, the system doubled as a micropile hollow bar anchor when toe stabilization of the portal faces required deep load transfer past the weathered zone. Contractors simply extended the bars with couplers to reach lengths of 12 meters, creating a composite soil nail system that functioned both as temporary shoring and part of the final lining. This dual-purpose capability eliminated separate installation steps and significantly cut concrete and reinforcement costs.

Industry Value: Aligning with Global Infrastructure Trends

The successful application echoes a broader shift in civil engineering toward self drilling anchor for retaining walls and ground stabilization anchor systems that minimize site disruption and carbon footprint. As urban centers expand and transportation networks contend with extreme terrain, the demand for efficient ground anchor bolt factories delivering certified, high-performance components has never been higher. The North American tunnel project is just one of over 40 major geotechnical undertakings SupAnchor has supplied globally in the past year, spanning high-speed rail corridors in Southeast Asia, hydropower caverns in the Andes, and coastal retaining structures in the Mediterranean.

Industry analysts report that the self drilling bolt for civil engineering market is growing at 6.8% CAGR, driven by the need to upgrade aging infrastructure and build resilient systems against climate-induced geohazards. The flexibility of self drilling anchor bolts allows contractors to rapidly adapt to unpredictable ground, a feature that proved vital when the Cascade tunnel encountered an unmapped fault zone. “We were able to switch immediately from a nominal 3-meter spacing to a dense pattern of 1.2-meter centers using the same hollow bar anchor components stored on site,” Dr. Merrick added. “That kind of responsiveness is what keeps a billion-dollar program on schedule.”

Environmental stewardship also played a role. Because the drill-and-grout bolt technique uses a small grout volume and eliminates casing, spoil generation was reduced by an estimated 40% compared to traditional pipe umbrella methods. The grout itself was a low-carbon, locally sourced micro-cement blend, further aligning the project with LEED and Envision sustainability criteria.

Brand Value: Innovation, Quality, Collaboration

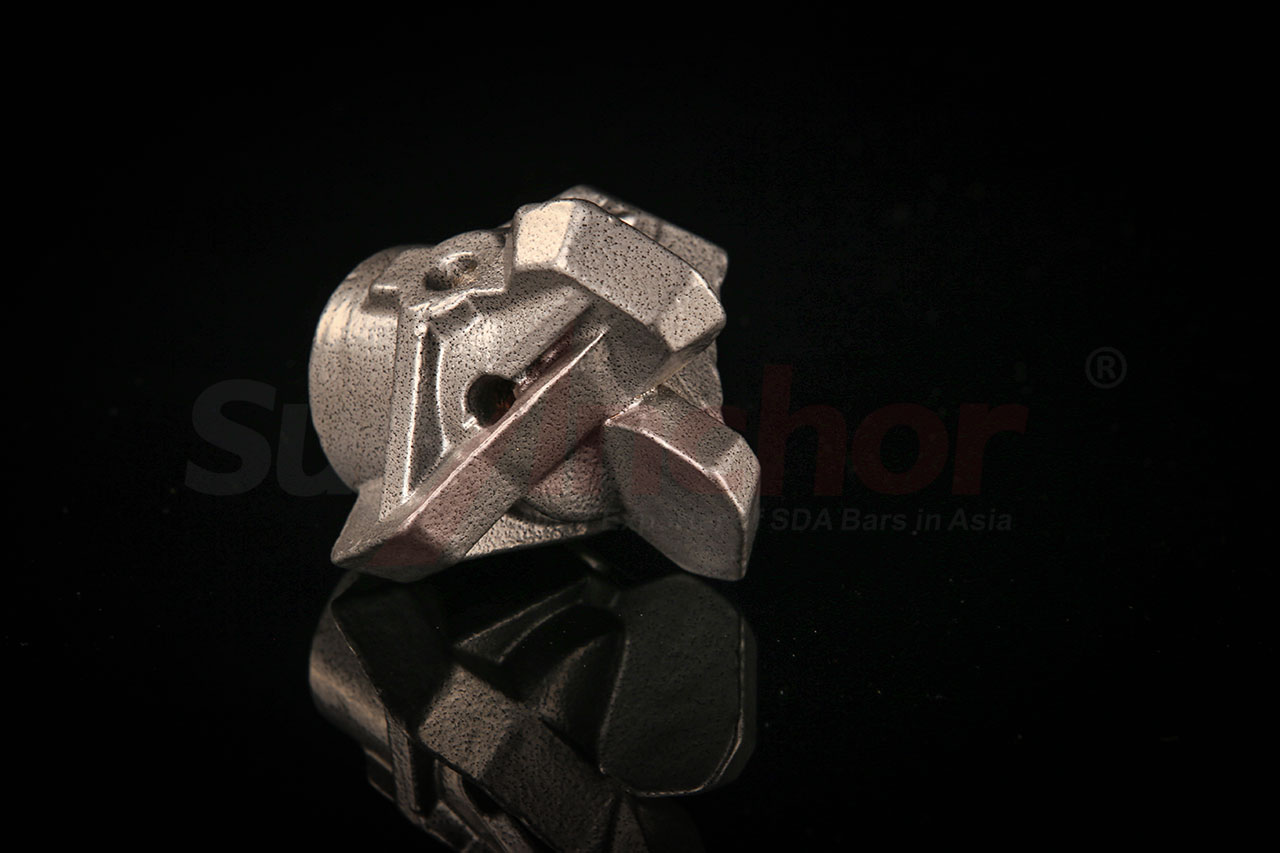

Behind the field success stands SupAnchor’s philosophy of “Professional, Innovative, Collaborative.” As an ISO 9001 and ISO 14001 certified manufacturer, the company’s SDA bolt factory direct supply chain ensures traceability from raw steel to job site, with every batch undergoing rigorous tensile testing and dimensional checks. The product image below illustrates the precision threading and clean galvanized finish that define the company’s hollow bar anchors.

In addition to its manufacturing prowess, SupAnchor provides full technical support, from preliminary design using finite element modeling to on-site training. For the Cascade project, engineers conducted pull-out tests exceeding 300 kN to validate bond strengths in the variable geology, refining the grout pressure and mixing ratios in real time. This collaborative approach is a hallmark of the brand, turning complex geotechnical challenges into repeatable, safe construction sequences.

Looking ahead, the lessons learned from this deployment are being codified into new design guidelines for self drilling anchor systems in squeezing ground. SupAnchor’s R&D team is already developing next-generation couplers that offer enhanced fatigue resistance for seismic zones, drawing on data collected from this project. As the infrastructure sector grapples with resource constraints and escalating safety expectations, the integration of drilling, grouting, and anchoring into a single, reliable soil nail system manufacturer offering will likely become a standard practice worldwide.

In the final assessment, the Cascade tunnel’s successful advance—now over 70% complete with zero lost-time incidents related to ground failure—stands as a testament to the value of partnering with a dedicated ground anchor bolt factory that views each project as a unique engineering problem. For geotechnical engineers seeking a proven anchor bolt system for geotechnical engineering, the message is clear: innovation, when backed by deep domain expertise and a collaborative spirit, can literally move mountains.
