In the heart of a strategic transportation corridor, a major highway expansion required the construction of a 2.8‑km twin‑tube tunnel through a mountain range notorious for its unpredictable geology. The project faced severe ground conditions: heavily fractured shale interbedded with sandstone, extensive fault zones, and groundwater inflows that threatened face stability and worker safety. Traditional support methods proved insufficient during early excavation phases, forcing the contractor to seek a reliable, rapid‑installation ground stabilization solution. That solution came in the form of SupAnchor’s self drilling anchor system—a fully integrated drill‑and‑grout bolt technology that combined drilling, anchoring, and grouting in a single pass, minimizing installation time and maximising immediate load‑bearing capacity.
The site, located in a region where tectonic activity has created highly fragmented rock masses, demanded a geotechnical reinforcement system capable of withstanding not only static overburden pressures but also dynamic stresses from nearby seismic activity. SupAnchor’s engineering team worked closely with the project consultants to design a hollow bar anchor scheme that provided both temporary face support and permanent rock reinforcement. The system’s ability to be installed through unstable ground without casing—thanks to simultaneous drilling and grouting—proved decisive, as it eliminated the risk of borehole collapse that had plagued earlier attempts with conventional rock bolts.
At the tunnel face, operators mounted SupAnchor self drilling anchor bolts onto computer‑controlled drill rigs equipped with high‑torque rotary‑percussive heads. Each bolt was advanced into the rock mass while a high‑strength cementitious grout was continuously injected through the hollow bore. The grout not only cooled the drill bit and flushed cuttings out of the hole but also permeated the surrounding fractures, consolidating the rock and creating a bonded zone far larger than the nominal bolt diameter. This drill‑and‑grout bolt technique transformed the inherently weak ground into a coherent composite arch, reducing the need for heavy steel ribs and lagging.

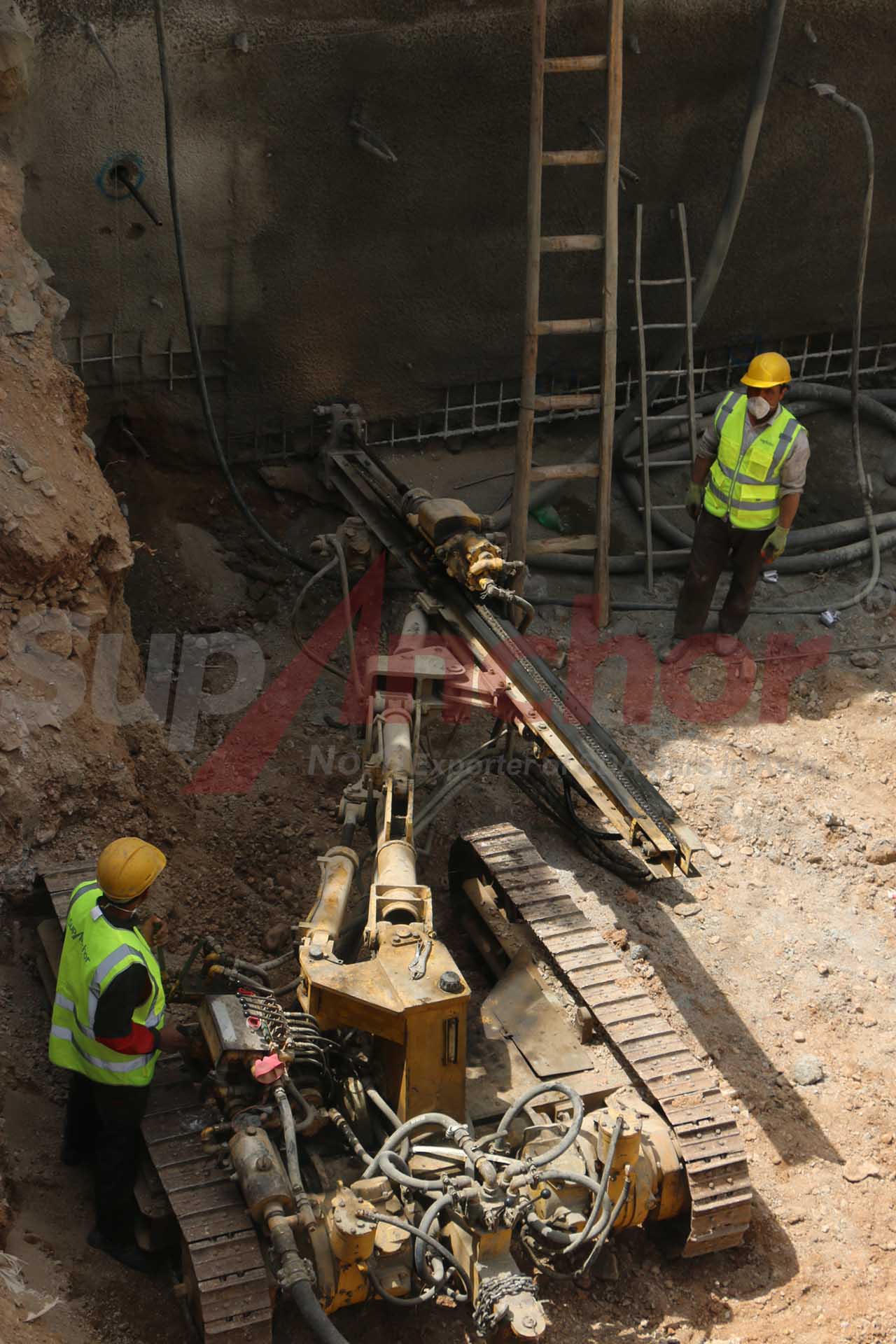

The installation sequence, captured in the accompanying site image, shows a crew working under controlled conditions with full protective equipment. SupAnchor’s field technicians oversaw the quality control, ensuring that grout mix designs achieved the specified early strength and that bolt alignments followed the fan‑shaped pattern designed to intercept key discontinuities. Real‑time monitoring of torque and pressure provided immediate feedback, allowing adjustments to penetration rates and grout flow to match the varying conditions.
The self drilling anchor system deployed in this project was tailored to meet the exacting demands of the tunnel geology. Key specifications included:
| Parameter | Value |
|---|---|
| Bolt Diameter | R32 / R38 / R51 hollow bars (project used R38) |
| Typical Length | 6.0 m to 12.0 m, continuously coupled |
| Tensile Strength | ≥ 500 kN (R38) to ≥ 800 kN (R51) ultimate capacity |
| Grouting Method | Continuous hollow‑bore injection, w/c = 0.35‑0.40 |
| Corrosion Protection | Hot‑dip galvanized to ISO 1461, plus sacrificial coating option |
| Coupling | High‑strength threaded couplers with shear pins |
These parameters were instrumental in overcoming the site’s challenges. The high tensile strength allowed the ground anchor bolt factory to supply bolts that could be installed at close centres to create a reinforced rock arch capable of bearing the tunnel’s design loads. The hollow bar anchor’s grouting performance ensured that even in running ground, the bond between the steel and the surrounding rock developed rapidly, reaching design strength within hours. The galvanized corrosion protection system was specified to safeguard the anchors against the mildly acidic groundwater present in the formation, guaranteeing a service life exceeding 50 years.
Compared to traditional soil nailing or cable bolting, the self drilling bolt for civil engineering offered a distinct advantage: it eliminated the separate steps of drilling, casing, removing the drill string, inserting the anchor, and then grouting. By merging these processes, cycle times were cut by up to 60%, allowing the contractor to maintain a steady advance rate despite the difficult ground. Moreover, the ability of the self drilling anchor bolt to act as both a temporary spile and a permanent rock bolt reduced material inventory and simplified logistics.
This tunnel project is emblematic of a broader global trend toward mechanized, all‑in‑one ground support solutions. As nations invest heavily in transportation infrastructure—highways, high‑speed rail, and urban metros—the need for efficient ground stabilization anchor systems has never been greater. Urban tunnelling beneath sensitive structures demands minimal surface disturbance, while mountainous corridors challenge engineers with highly variable rock mass quality. The self drilling anchor system addresses both by enabling rapid, reliable support with minimal over‑excavation and almost immediate load‑bearing capacity.
In the competitive landscape of geotechnical reinforcement systems, the hollow bar anchor segment is forecast to grow at over 7% CAGR through 2030, driven by increased spending on slope stabilization, retaining walls, and underground mining. Projects similar to the one featured here—where a rock bolt for underground mining was adapted for civil tunnelling—demonstrate the crossover potential of these technologies. Tunnel designers increasingly specify self drilling anchors for permeable ground, squeezing conditions, and areas where conventional grouted bars would fall short.
Furthermore, the environmental and safety benefits align with global sustainability goals. The reduced amount of steel needed (compared with lattice girders) and the minimal grout wastage of the SupAnchor system contribute to a lower carbon footprint. Worker safety is enhanced because the integrated drilling and grouting reduces the time personnel spend at unprotected tunnel faces. Such attributes are becoming prerequisite in tender evaluations, making the drill‑and‑grout bolt a preferred choice for forward‑thinking clients and consultants.
Behind this successful deployment stands SupAnchor, a manufacturer that has consistently pushed the boundaries of anchor bolt system for geotechnical engineering. With ISO 9001:2015 and ISO 14001:2015 certifications, the company operates a state‑of‑the‑art production base where every SDA bolt factory direct supply chain is meticulously monitored. From raw steel sourcing to final galvanizing, strict quality gates ensure that each ground anchor bolt factory output meets or exceeds international standards such as EN 14490, ASTM F432, and BS 8081.
SupAnchor’s product portfolio includes not only self drilling anchor bolts but also soil nail system manufacturer components, micropile hollow bar anchors, and a full range of couplers, plates, and nuts. This comprehensive catalogue allows the company to serve as a true one‑stop ground stabilization anchor system partner. Their technical team, composed of geotechnical engineers and application specialists, provides design support, installation training, and on‑site supervision—a collaborative approach that has earned them repeat business in over 30 countries across Europe, the Americas, the Middle East, and Asia‑Pacific.
Among the most recognized solutions is their self drilling anchor for retaining walls. In urban excavations, where space is tight and adjacent buildings cannot tolerate deformation, SupAnchor’s micropile hollow bar anchors provide immediate lateral restraint. The same system, when used as a rock bolt for underground mining, excels in providing safe roof support in haulage drifts and stopes. This versatility reduces the learning curve for contractors and delivers consistent performance across vastly different applications.
The company’s commitment to “Professional, Innovative, Collaborative” is not just a slogan. Evidence of this can be seen in continuous R&D investments: recent enhancements include a new duplex coating system for extremely aggressive environments and a digital torque‑monitoring adapter that transmits installation data in real time to a cloud‑based dashboard. Such innovations empower project managers to verify that every self drilling bolt for civil engineering meets specifications before the shotcrete lining is applied, building an unassailable quality record.
Collaboration with industry bodies and research institutes further solidifies SupAnchor’s standing. Joint studies on load‑transfer mechanisms in strain‑softening rock have directly influenced the thread profile and grout formulation used in the field. These efforts ensure that the hollow bar anchor remains at the forefront of safety and reliability, ready to tackle the next generation of geotechnical challenges.
The mountain highway tunnel case study vividly illustrates how the right geotechnical reinforcement system can transform a project on the verge of stalling into a model of efficiency and safety. By deploying a self drilling anchor system that combined high‑strength hollow bar anchors with precise grouting control, the project team was able to advance through the most critical stretch of tunnel with confidence, meeting both schedule and budget targets. The success reinforces the value of selecting a trusted soil nail system manufacturer and hollow bar anchor supplier that can deliver not just products but holistic engineering support.
As global infrastructure demands escalate, the role of reliable, high‑performance ground stabilization anchor systems will only grow. The SupAnchor system, with its proven track record and continuous innovation, is poised to lead this evolution—enabling engineers and contractors worldwide to build safer, more durable structures, even in the most unforgiving ground.
