In a recent large-scale infrastructure project in the Swiss Alps, engineers faced the daunting task of stabilizing a steep cut slope along a newly constructed mountain highway. The site, characterized by fractured limestone and high groundwater levels, demanded a geotechnical reinforcement system that could be installed quickly while providing immediate load-bearing capacity. The contractor selected SupAnchor's self drilling anchor system, a proven solution for challenging ground conditions.
The highway expansion project aimed to improve connectivity between remote alpine communities. However, the selected route required a 40-meter-high cut slope through unstable rock formations. Traditional soil nailing methods would have required extensive pre-drilling and casing, causing delays and increasing costs. The presence of water-bearing fractures further complicated the use of conventional ground anchor bolts. The project team needed a drill-and-grout bolt that could simultaneously drill, grout, and install reinforcement in a single pass, minimizing disturbance and speeding up construction.

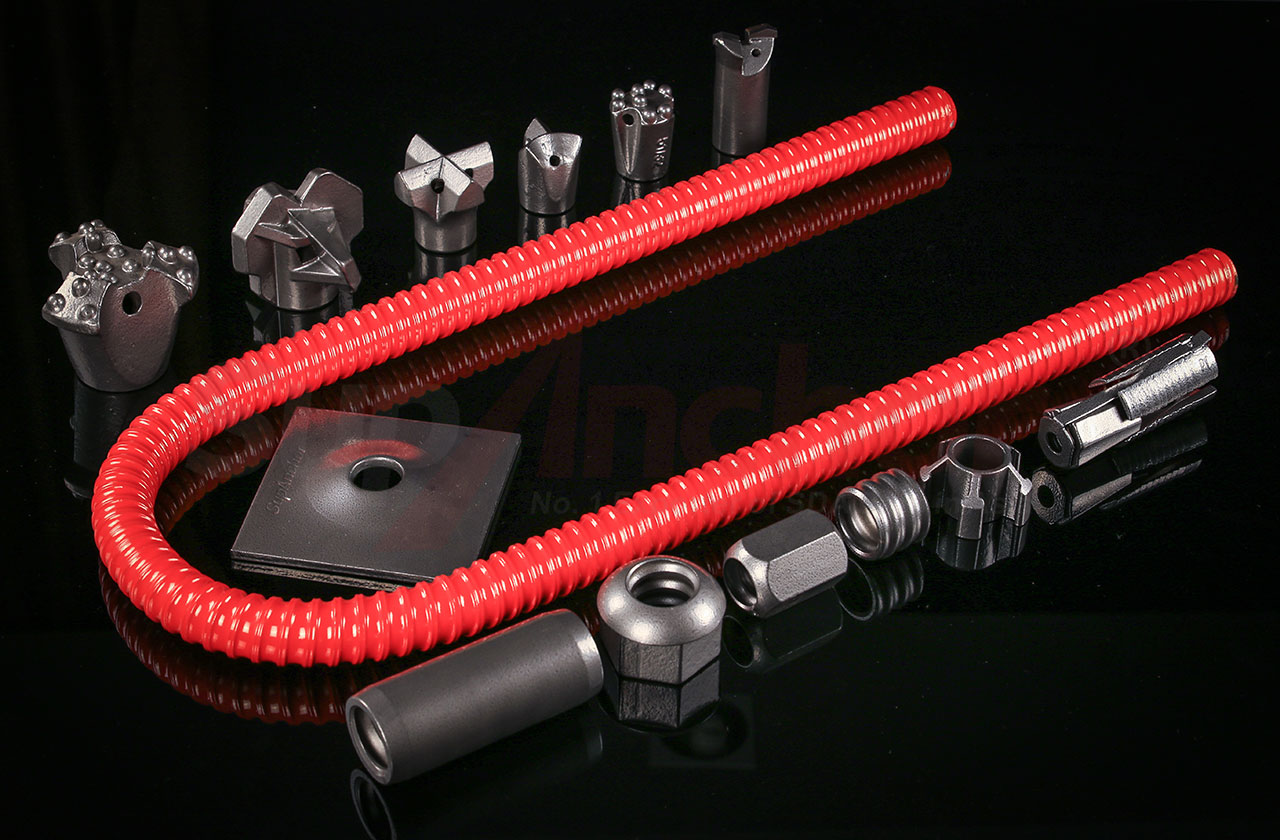

SupAnchor supplied hollow bar anchors with the following specifications tailored to the site conditions:
| Parameter | Value |
|---|---|
| Bar Diameter | 32 mm |
| Tensile Strength | 670 kN |
| Length | 9 m (customized per depth) |
| Corrosion Protection | Hot-dip galvanized + epoxy coating (Class II) |
| Grout Type | Cementitious, water-cement ratio 0.4 |
The self drilling anchor bolt design allowed for simultaneous drilling and grouting through the hollow bar, ensuring full encapsulation of the tendon. This drill-and-grout bolt method reduced installation time by 40% compared to conventional systems. The high tensile strength and corrosion protection were critical for the aggressive alpine environment, where freeze-thaw cycles and groundwater acidity could compromise long-term performance.

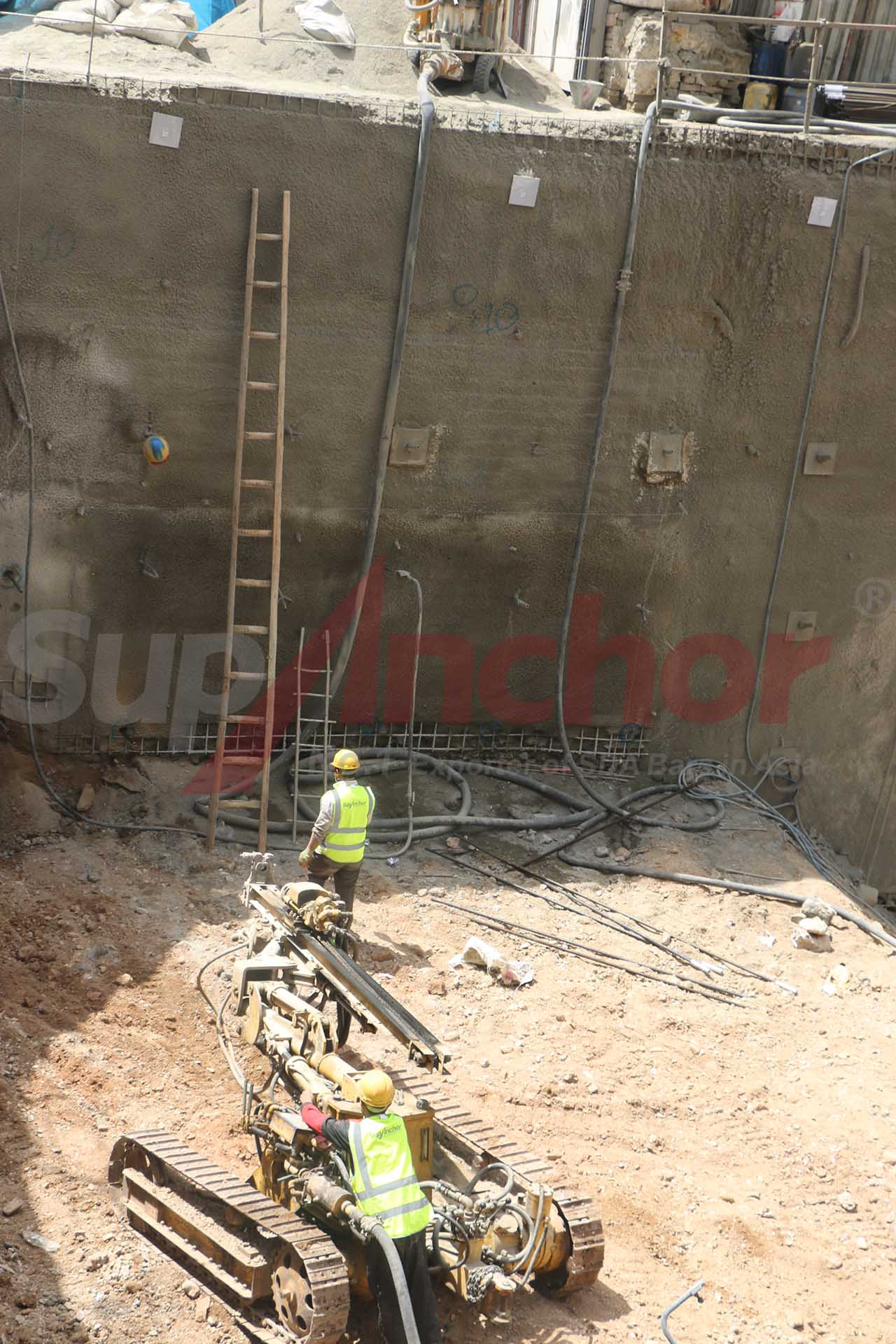

The construction site image shows the anchors being installed on the steep slope. Using a track-mounted drill rig, crews advanced the hollow bar anchors through the fractured rock, with grout injected through the central hole and exiting through the sacrificial drill bit. The process was continuous, eliminating the need for separate drilling and grouting stages. The geotechnical reinforcement system provided immediate stabilization, allowing subsequent slope trimming and shotcreting to proceed without delay.
Over 1,200 self drilling anchor for retaining wall applications were installed on this project. The ground stabilization anchor system performed exceptionally well, with pull-out tests exceeding design requirements by 15%. The project manager commented, 'SupAnchor's solution saved us weeks of work and provided confidence in the long-term stability of the slope.'
This project exemplifies the growing demand for efficient geotechnical reinforcement systems in mountainous regions worldwide. As infrastructure networks expand into challenging terrain, soil nail system manufacturers like SupAnchor are innovating to meet the needs of civil engineering projects. The use of hollow bar anchors for micropile hollow bar anchor applications is becoming standard practice in landslide mitigation and foundation support. Self drilling anchor bolts are increasingly specified for their speed, reliability, and ability to adapt to variable ground conditions.
The rock bolt for underground mining sector has also adopted similar technologies, but SupAnchor's focus on surface stabilization (slopes, retaining walls, tunnels) positions them as a key supplier for transportation projects. The company's SDA bolt factory direct supply model ensures cost-effectiveness and quality control.
SupAnchor, a leading anchor bolt system for geotechnical engineering manufacturer, brings decades of experience to every project. The company holds ISO 9001:2015 certification and has supplied self drilling anchor bolts to over 30 countries. Their commitment to 'Professional, Innovative, Collaborative' values is evident in products that meet stringent European and American standards.
From self drilling anchor for retaining walls to ground stabilization anchor systems, SupAnchor continues to push the boundaries of geotechnical engineering. The success of this mountain highway project underscores the importance of choosing the right geotechnical reinforcement system for challenging environments.
