A critical highway expansion project through the Austrian Alps has successfully employed a state-of-the-art self drilling anchor system to stabilize steep slopes and prevent rockfall. The project, part of the Trans-European Transport Network (TEN-T), presented formidable geological challenges including fractured limestone, high groundwater pressure, and limited access for heavy machinery. Engineers turned to SupAnchor, a leading geotechnical reinforcement system manufacturer, to supply a customized solution using hollow bar anchors and drill-and-grout bolts.
The section in question, near the Brenner Pass, required stabilization of a 150-meter-long slope with a height of 45 meters. Traditional methods such as soil nailing with solid bars would have required extensive pre-drilling and separate grouting, but the site’s unstable terrain made this approach risky. SupAnchor’s self drilling anchor bolt technology allowed simultaneous drilling, grouting, and anchoring in a single pass, significantly reducing installation time and improving worker safety.
The construction team selected the SupAnchor SDA-25 series for the primary stabilization work. Key parameters include:
| Parameter | Value |
| Bar Diameter | 25 mm |
| Ultimate Tensile Strength | 500 kN |
| Yield Strength | 400 kN |
| Length | 6–12 m (customized) |
| Corrosion Protection | Hot-dip galvanized + epoxy coating |
These specs were chosen to address the site-specific challenges: fractured rock required high tensile strength to resist block sliding, while the water table necessitated robust corrosion protection. The hollow bar design allowed cement grout to flow through the bar during drilling, ensuring full encapsulation and bond strength. Over 500 self drilling anchor bolts were installed at a grid spacing of 2.5 meters, creating a reinforced soil structure that tied the unstable rock layers together.

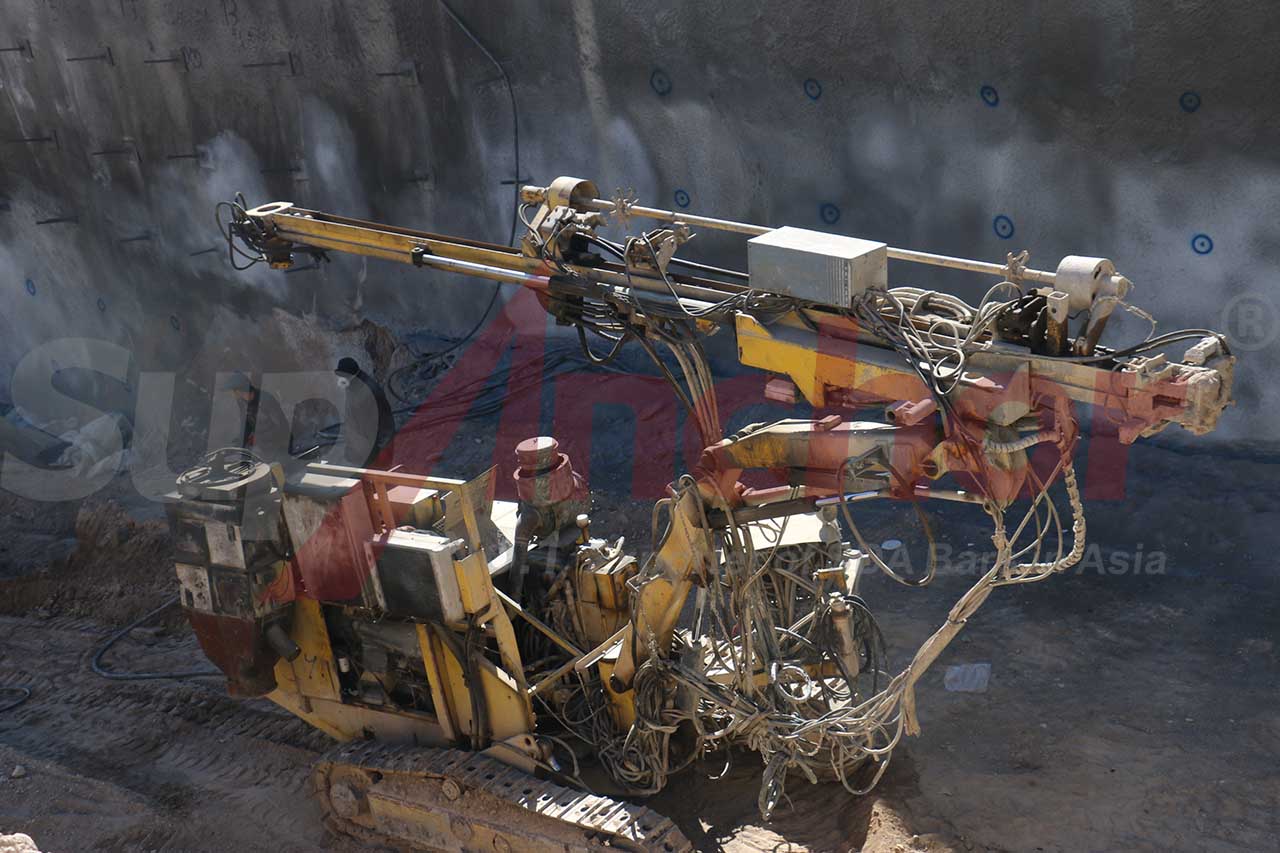

The image below shows the construction site during the drilling phase, where rigs operated on temporary platforms anchored to the slope. The use of self drilling anchor system minimized the need for heavy earthmoving, preserving the surrounding alpine environment.
This project exemplifies the growing demand for efficient geotechnical solutions in infrastructure development. As global investments in transportation, tunneling, and urbanization increase, engineers seek methods that can handle variable ground conditions with minimal disruption. The self drilling anchor bolt technology is particularly valuable in:
According to industry analysts, the global ground stabilization anchor system market is expected to grow by 6.5% annually through 2030, driven by aging infrastructure replacement and new mega-projects in Asia, Europe, and the Americas. SupAnchor’s role as a soil nail system manufacturer with direct factory supply positions it well to meet this demand with cost-effective, high-performance products.
SupAnchor, headquartered in China with distribution partners worldwide, maintains ISO 9001 and ISO 14001 certifications. Their “Professional, Innovative, Collaborative” philosophy drives continuous improvement in anchor bolt system for geotechnical engineering. The company has supplied over 20 million meters of self drilling anchor bars to projects in 50 countries, including the Gotthard Base Tunnel in Switzerland and the Hong Kong-Zhuhai-Macao Bridge.
The successful completion of the Brenner Pass slope stabilization reinforces SupAnchor’s reputation as a reliable partner for challenging geotechnical endeavors. With a focus on R&D and customer support, they offer comprehensive solutions from initial design to on-site training.
The image above shows a close-up of the SDA-25 self drilling anchor bolt, illustrating the threaded hollow bar and sacrificial drill bit. This design ensures efficient drilling and grouting in a single operation, a key advantage for projects where time and safety are critical.
As infrastructure demands evolve, technologies like the self drilling anchor system will play an increasingly vital role in ensuring safe and sustainable development. SupAnchor remains at the forefront, delivering innovative ground stabilization products that build a more resilient world.
