A major highway expansion project in the Alpine region faced significant geotechnical challenges due to steep slopes, fractured rock, and groundwater ingress. Traditional anchor installation methods would have required multiple stages and prolonged construction time. To address these issues, the engineering contractor selected the self drilling anchor system from SupAnchor, a professional geotechnical reinforcement system manufacturer. This system combines drilling, grouting, and anchoring into a single operation, providing immediate ground stabilization and accelerating project schedules.
The project involved stabilizing a 500-meter-long cut slope with heights up to 40 meters. The ground conditions consisted of weathered gneiss with intermittent clay seams, requiring a reliable ground stabilization anchor system that could adapt to variable rock quality. The self drilling anchor system proved ideal because its hollow bar anchor design allows simultaneous drilling and grouting (drill-and-grout bolt), ensuring full encapsulation of the anchor bar even in collapsing ground. This eliminated the need for casing and reduced installation time by 40% compared to conventional methods.

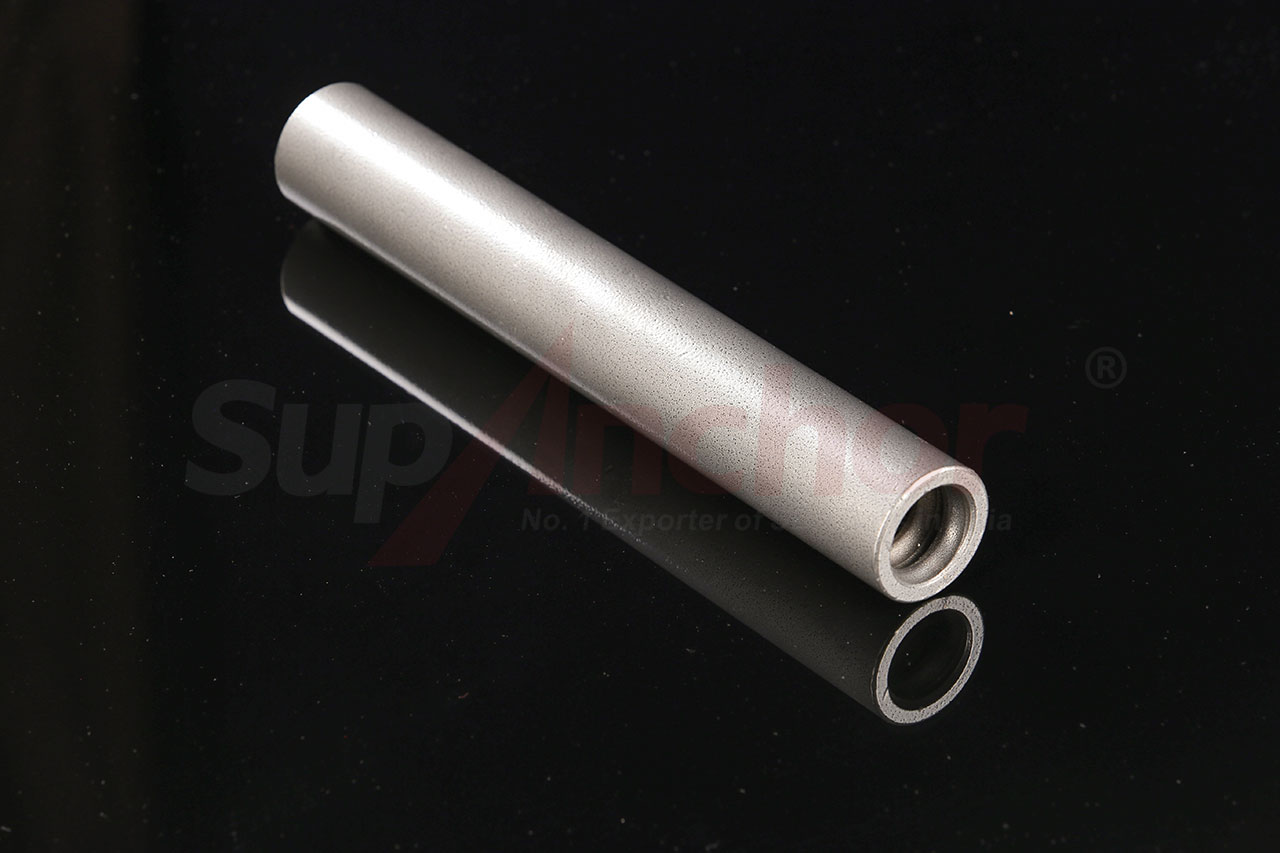

The SupAnchor self drilling anchor bolt used in this project features a 32mm outer diameter hollow bar with a tensile strength of 550 kN. The bars were supplied in 3-meter lengths and coupled to reach the designed 12-meter embedment depth. Corrosion protection was provided by a hot-dip galvanized coating and a cementitious grout cover, meeting the requirements for a 100-year service life. The drill bit was a 45mm diameter cross-cut type, optimized for fractured rock. The following table summarizes the key specifications:
| Parameter | Value |
| Bar Diameter | 32 mm |
| Tensile Strength | 550 kN |
| Standard Length | 3 m (couplable) |
| Corrosion Protection | Hot-Dip Galvanized + Grout |
| Drill Bit Diameter | 45 mm |
These parameters ensured that the anchor bolt system for geotechnical engineering could withstand the design loads while being installed efficiently in the variable ground conditions. The hollow bar anchor allowed for continuous flushing of drill cuttings and uniform grout distribution, which is critical in fractured rock where voids can compromise anchor capacity.

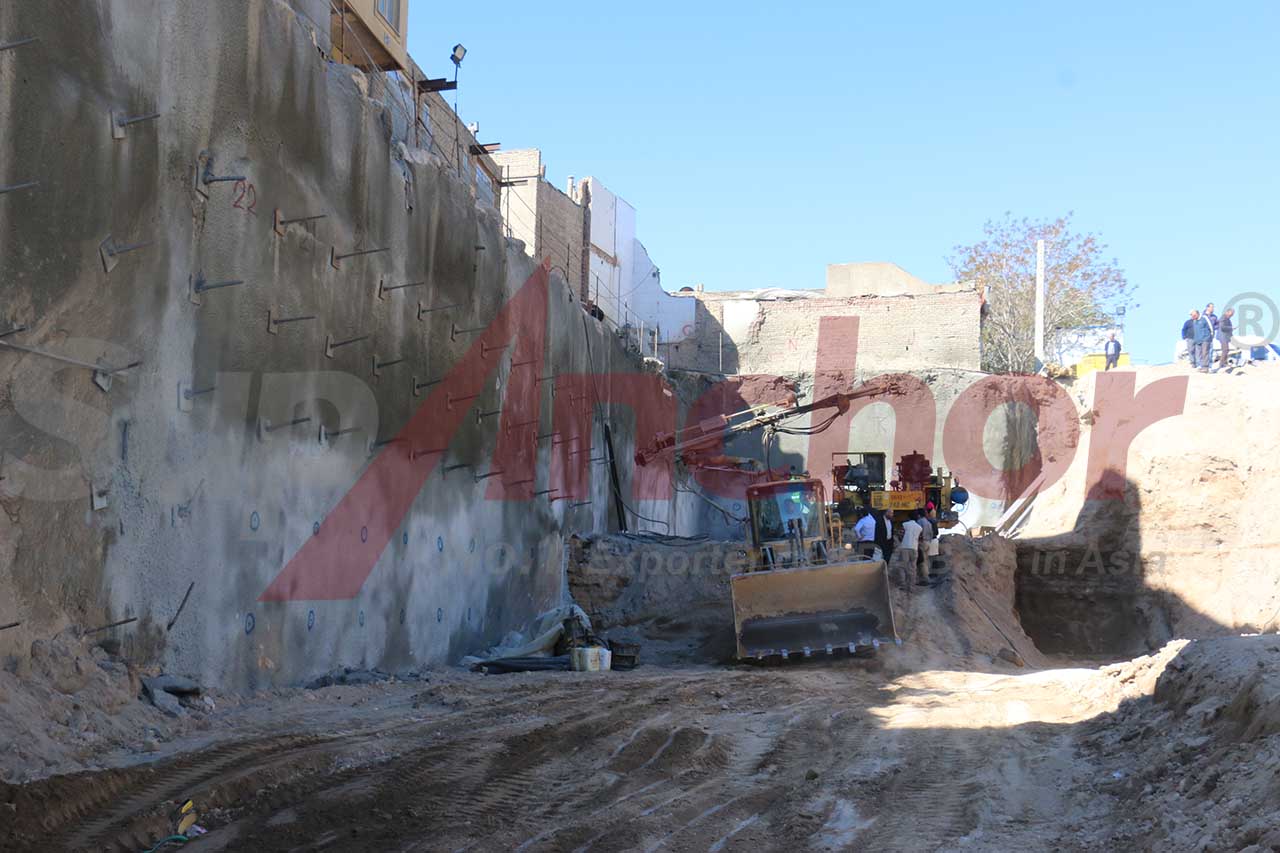

The self drilling anchor system was deployed as part of a comprehensive geotechnical reinforcement system for the slope. A total of 2,400 anchors were installed on a 2.5m x 2.5m grid, combined with shotcrete facing and drainage net. The installation process involved drilling to the full depth using a hydraulic drill rig, then pumping grout through the hollow bar while retracting the drill string. The grout mix was designed with a water-cement ratio of 0.4 to achieve 20 MPa compressive strength. Once the grout reached the collar, the drill bit was left in place and the anchor was tensioned after 24 hours of curing, reaching 70% of the ultimate capacity.
One of the main advantages observed was the ability to maintain production rates even in adverse weather conditions. The hollow bar anchor eliminated the need for separate casing stages, which reduced the number of equipment movements and improved site safety. The project team noted that the system was particularly effective in zones with high groundwater flow, as the continuous grouting process prevented hole collapse and ensured a quality bond between the anchor and the rock mass. This application demonstrates why many engineers choose this as a preferred ground stabilization anchor system for difficult ground conditions.
Additionally, the self drilling anchor for retaining walls and slope stabilization has gained popularity in civil engineering projects worldwide. The same system is also used as a rock bolt for underground mining and as a micropile hollow bar anchor for foundation underpinning. The versatility of the SDA bolt factory direct supply ensures that customized lengths and corrosion protection levels can be provided for specific project requirements.
The successful use of this self drilling bolt for civil engineering projects reflects a broader industry shift toward integrated drilling and grouting technologies. As infrastructure development expands into mountainous and urban areas with challenging geology, the demand for efficient geotechnical reinforcement systems is increasing. The European market, in particular, has seen a rise in the adoption of self drilling anchor systems for retaining walls, tunnels, and bridge abutments. This project serves as a case study for how innovation can reduce construction risk, lower costs, and improve safety.
Moreover, the project aligns with global trends in sustainable construction: fewer deliveries of materials, reduced equipment idle time, and less waste from casing extraction. The drill-and-grout bolt technique also allows for real-time monitoring of grout take and drilling resistance, enabling quality control as the anchor is installed. These benefits position the self drilling anchor system as a key tool for modern geotechnical engineering.
SupAnchor is a leading soil nail system manufacturer and ground anchor bolt factory with over a decade of experience in producing high-quality ground anchors. The company holds ISO 9001 and ISO 14001 certifications, and its products have been used in over 40 countries for applications ranging from road cut slopes to deep excavations. SupAnchor’s commitment to innovation is evident in its product development, which includes corrosion-resistant coatings and high-strength steel grades. The company’s technical team works closely with contractors to provide site-specific solutions, embodying the values of “Professional, Innovative, Collaborative.”
For this project, SupAnchor provided not only the materials but also on-site training and installation support, ensuring that the contractor’s crew achieved optimal productivity. The client reported zero installation failures and a 30% reduction in overall project costs compared to traditional anchoring methods. This success reinforces SupAnchor’s reputation as a reliable partner for complex geotechnical challenges.
In conclusion, the use of the self drilling anchor system in this Alpine highway expansion demonstrates its effectiveness in stabilizing slopes in difficult geology. As infrastructure projects continue to push into challenging terrains, the adoption of innovative anchor systems like those from SupAnchor will play a vital role in ensuring safe and efficient construction. For engineers and contractors seeking a proven ground stabilization anchor system, the self drilling anchor bolt offers a reliable solution backed by a dedicated manufacturer.
