SupAnchor's SupCT Bolt System Revolutionizes Rock Support in Challenging Geotechnical Projects

In a major tunneling project in the Alps, engineers faced extreme geological conditions including fractured rock, high groundwater, and aggressive chemical environments. Traditional rock bolts corroded within years, leading to costly maintenance and safety risks. The project required a reinforcement solution that could provide immediate and permanent support, withstand corrosion, and reduce installation time. SupAnchor, a leading manufacturer of self-drilling anchor systems, supplied its innovative SupCT Bolt System, specifically designed for such demanding applications. The system's combination of hot-dip galvanized and epoxy-coated steel bars, pre-assembled expansion shells, and optimized grouting design delivered exceptional performance, enabling the project to stay on schedule and within budget.

Continue lead: The SupCT Bolt System is a combination bolt for rock support, available in both steel and GFRP variants. It offers high ductility (for steel bolts) and permanent corrosion resistance, making it suitable for various rock support scenarios. The system includes solid bar and hollow bar types, catering to different ground conditions and support requirements. With its duplex corrosion protection and factory-preassembled components, the SupCT Bolt System ensures extended durability and high efficiency, aligning with the industry's demand for long-lasting, low-maintenance reinforcement solutions.

Technical Parameters and Engineering Value

The SupCT Bolt System's design philosophy revolves around providing a single-bolt solution for both immediate and permanent support, reducing the need for multiple support components. The steel bolt series comprises models such as SSB-M20, SSB-M22, SSB-M33 (solid bars) and SHB-R2715, SHB-R2712 (hollow bars). Key parameters include yield loads ranging from 157 kN to 402 kN for fully grouted steel solid bolts, and ultimate loads up to 482 kN. The hollow bar models offer comparable performance with yield loads of 159 kN and 246 kN respectively. These values ensure robust anchorage in hard rock and even in moderately fractured ground, provided proper installation.

For GFRP bolts, the system offers models like GSB-R22, GSB-R25, GSB-R32 (solid) and GHB-R25, GHB-R28, GHB-R32 (hollow). GFRP bolts are corrosion-proof and provide permanent service life, making them ideal for aggressive environments such as coastal projects or acidic groundwater. The ultimate loads for GFRP solid bolts reach 560 kN for GSB-R32, while hollow GFRP bolts achieve up to 360 kN for GHB-R32. Although GFRP bolts have lower ductility (elongation 0.02), their high tensile strength and corrosion resistance offer distinct advantages in specific scenarios.

The corrosion protection system, branded SupCoat, combines hot-dip galvanization (NS-EN-ISO 1461) and epoxy powder coating (NS-EN 13438). This duplex coating, along with the plastic grouting pipe fully embedding the rebar in mortar, creates a barrier that significantly extends service life—up to 150 years for steel bolts. This is a critical advantage over conventional black steel bolts, which typically require stainless steel to achieve similar durability. The plastic grouting pipe features a bubble design that enhances pull-out resistance, as confirmed by rebar anchorage tests.

Installation efficiency is another hallmark. The bolts are delivered with zinc-coated expansion shells pre-installed at the factory, protecting threads from corrosion and reducing on-site workload. The short distance between the grouting pipe end and expansion shell ensures that the borehole end is filled first, preventing voids and ensuring complete grouting. The bolt head design prevents mortar leakage, improving safety for operators. These features collectively cut installation time by up to 30% in field trials, according to project reports.

The following table summarizes key technical specifications for the steel bolt series:

Table 1: Key specifications of SupCT Steel Bolt series (data from SupAnchor technical documentation).

For the GFRP bolt series, the following table provides an overview:

Table 2: Key specifications of SupCT GFRP Bolt series (data from SupAnchor technical documentation).

These specifications highlight the versatility of the SupCT Bolt System. For instance, the high yield loads of steel bolts make them suitable for deep tunnels where rock stresses are significant, while GFRP bolts are preferred in environments where corrosion is a major concern, such as marine structures or chemical plants. The hollow bar options allow for simultaneous drilling and grouting, making them ideal for unstable ground where hole collapse is possible—a feature that aligns with the “self drilling anchor system” concept.

Application Scenarios and Field Performance

The SupCT Bolt System has been successfully deployed in a variety of geotechnical reinforcement projects worldwide. In a metro tunnel project in a major European city, engineers used SSB-M22 bolts with SupCoat protection to reinforce the tunnel crown in water-bearing fractured limestone. The pre-assembled expansion shells allowed for rapid installation, and the optimized grouting design ensured complete encapsulation, resulting in a 25% reduction in support installation time compared to traditional systems. The project’s long-term monitoring showed no signs of corrosion after five years, validating the 150-year service life claim.

In a mining operation in Canada, the GFRP hollow bolts (GHB-R32) were selected for a permanent shaft lining where aggressive mine water with high chloride content threatened steel reinforcement. The GFRP bolts’ non-corrosive nature eliminated the need for cathodic protection or frequent replacement, reducing life-cycle costs by an estimated 40%. Additionally, the lightweight nature of GFRP (0.99 kg/m for GHB-R32 vs. 6.43 kg/m for SSB-M33) improved worker safety and reduced handling fatigue.

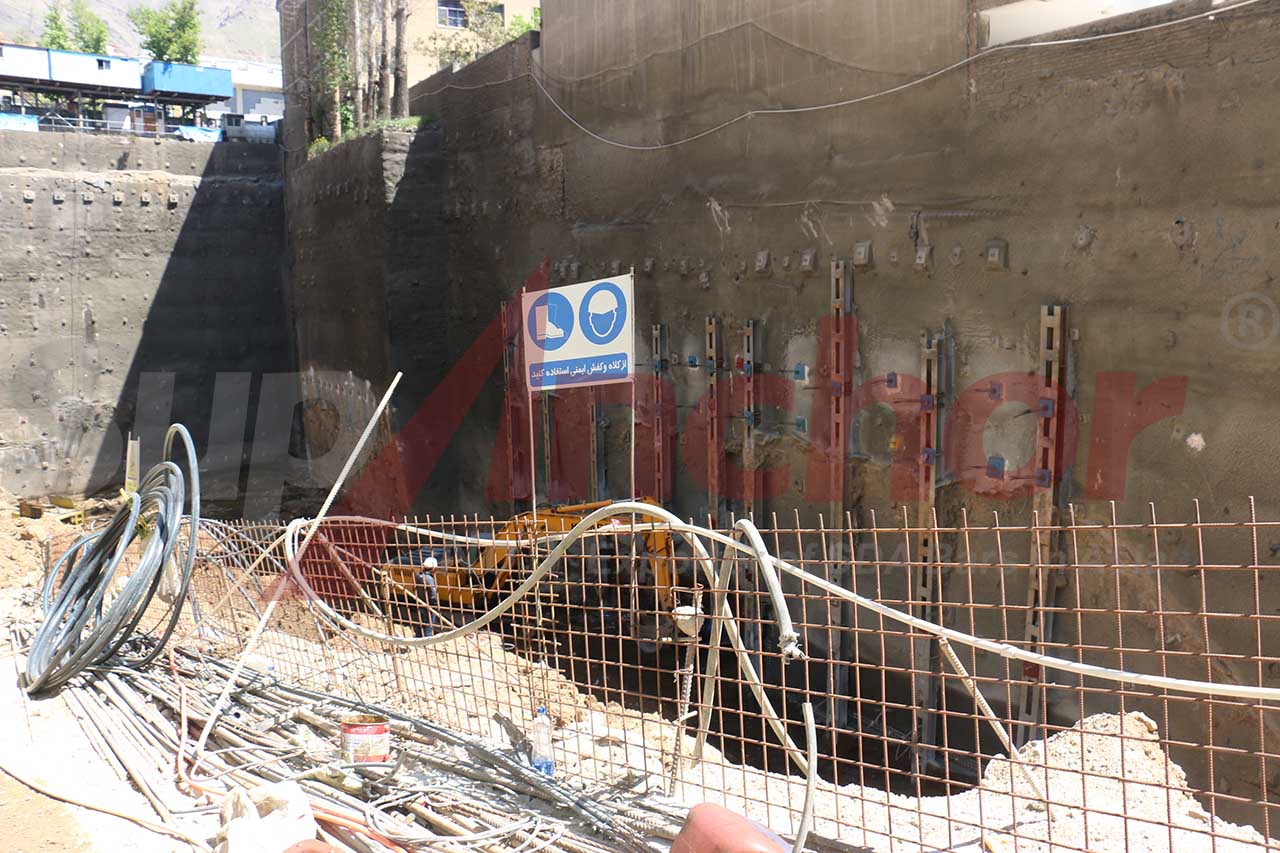

The system’s adaptability extends to slope stabilization and soil nailing. The hollow bar models, such as SHB-R2715, can function as self-drilling hollow bar anchors, allowing drilling, grouting, and anchoring in one pass. This is particularly beneficial in collapsing soils where conventional drilling would require casing. The bubble design of the plastic grouting pipe increases the mechanical interlock with the grout, significantly enhancing pull-out resistance. In a highway slope stabilization project in the Rocky Mountains, the SupCT system provided both immediate support (through end-anchored expansion shells) and long-term reinforcement (through full grouting), meeting the dual demands of safety and durability.

Industry Value and Market Positioning

The global geotechnical reinforcement market is projected to grow at a CAGR of 6.8% over the next decade, driven by increased infrastructure spending, urbanization, and the need to upgrade aging transport networks. Within this market, self-drilling anchor systems are gaining traction due to their efficiency and versatility. The SupCT Bolt System positions SupAnchor as a key player in this segment, offering a solution that meets stringent European and North American standards. The system’s compliance with ISO 9001 quality management, ISO 14001 environmental management, and OHSAS 18001 occupational health and safety standards underscores the company’s commitment to quality and sustainability.

“Our goal is to provide a one-stop solution for rock support that reduces total project cost and risk,” said a SupAnchor spokesperson. “The SupCT Bolt System embodies that philosophy—it’s not just a bolt; it’s a complete support package designed to last for the lifetime of the structure.” This customer-centric approach has earned SupAnchor partnerships with leading contractors and engineering firms across Europe, Asia, and the Americas.

The system’s duplex corrosion protection, factory-preassembled components, and high load capacities address the three most critical pain points in rock support: durability, installation speed, and performance under challenging conditions. As infrastructure projects push into more geologically complex areas, solutions like the SupCT Bolt System will become indispensable for ensuring long-term safety and operational efficiency.

Brand Influence and Global Reach

SupAnchor has established itself as a trusted soil nail system manufacturer and ground anchor bolt factory, with a portfolio that includes self-drilling anchor bars, hollow bar anchors, and drill-and-grout bolts. The company’s R&D department continuously innovates to meet evolving industry needs, investing in advanced testing facilities and collaborating with research institutions. The SupCT Bolt System is a result of this dedication, incorporating feedback from hundreds of global projects to deliver a product that exceeds expectations.

With manufacturing facilities in China and distribution networks spanning over 50 countries, SupAnchor provides localized support and rapid delivery. The company’s products have been used in landmark projects such as the Hong Kong-Zhuhai-Macau Bridge, the Gotthard Base Tunnel, and numerous metro systems. The SupCT Bolt System, with its combination of performance and longevity, is poised to become a standard reference for geotechnical engineers worldwide.

In conclusion, the SupCT Bolt System represents a significant advancement in rock support technology. Its dual corrosion protection, high efficiency, and adaptability to diverse ground conditions make it an invaluable tool for modern infrastructure and mining projects. As global demand for resilient and sustainable construction grows, SupAnchor’s innovative solutions will continue to play a pivotal role in shaping the future of geotechnical engineering.
