In underground construction and mining, the stability of rock masses is a critical safety and operational concern. Projects in fractured, weak, or highly stressed rock formations demand reinforcement solutions that can be installed quickly and bear load immediately. SupAnchor, a leading manufacturer of geotechnical reinforcement systems, has addressed these challenges with its SupHulk® friction rock bolt system. Recently deployed across multiple mining and tunneling sites, the SupHulk Premium line (PM series) has demonstrated exceptional performance, combining high yield loads with excellent deformability to provide reliable support in low to medium stress conditions.
The SupHulk system operates on a simple yet effective principle: a steel tube, sealed at one end and fitted with an inflation bushing at the other, is inserted into a pre-drilled borehole and inflated with high-pressure water. As the tube expands, it presses against the borehole wall, creating friction and interlocking along the entire length of the bolt. This full-column anchorage allows the bolt to bear load immediately after installation and to adapt to rock movements without losing capacity. For contractors and mine operators, this means faster installation cycles and enhanced safety in dynamic ground conditions.
The SupHulk PM series comprises three models—PM12, PM16, and PM24—each engineered to deliver specific load capacities for different ground conditions. The minimum breaking loads are 110 kN, 160 kN, and 240 kN respectively, while minimum yield loads stand at 100 kN, 130 kN, and 200 kN. All models guarantee a minimum elongation of 10% (A100mm), ensuring sufficient deformability to absorb shear movements in medium to soft rocks. The inflation water pressure is 300 bar for PM12 and PM24, and 240 bar for PM16, which can be achieved using SupAnchor's specially designed high-pressure pump that automatically stops at the recommended pressure, guaranteeing consistent installation quality.
Key dimensional and performance specifications are summarized in the table below:
| Model | Min. Breaking Load (kN) | Min. Yield Load (kN) | Inflation Pressure (bar) | Hole Diameter (mm) | Profile Diameter (mm) | Tube Thickness (mm) | Original Tube Diameter (mm) | Upper Bushing Diameter (mm) | Bushing Head Diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|
| PM12 | 110 | 100 | 300 | 32-39 | 27 | 2 | 41 | 28 | 30/36 |
| PM16 | 160 | 130 | 240 | 43-52 | 36 | 2 | 54 | 38 | 41/48 |
| PM24 | 240 | 200 | 300 | 43-52 | 36 | 3 | 54 | 38 | 41/48 |
These specifications illustrate the robust design of the SupHulk bolts. The high inflation pressure ensures thorough expansion, while the varying tube thickness and diameter options allow engineers to select the appropriate bolt for specific rock mass conditions. The ability to generate 100 kN of friction from just a 50 cm long inflated section underscores the efficiency of the friction anchorage mechanism. Moreover, the bolt's steel profile is designed to withstand shear movements without failure, making it suitable for medium to soft rocks where significant deformation may occur.
Weight is another important practical consideration. The SupHulk bolts are relatively lightweight for their capacity, easing manual handling in confined underground spaces. Representative weights for 3-meter lengths are 6.00 kg for PM12, 8.20 kg for PM16, and 10.60 kg for PM24. Longer bolts scale proportionally, with PM24 at 6 meters weighing 23.10 kg. These figures enable mine planners to optimize supply logistics and ensure that installation crews can handle the bolts without excessive fatigue, contributing to overall productivity.
The installation process is straightforward: drill a hole of the specified diameter, insert the SupHulk bolt, and inflate using the special pump. The pump automatically stops at the pre-determined pressure, eliminating guesswork and ensuring that every bolt achieves its design capacity. This simplicity reduces installation time and labor costs, while also minimizing the risk of human error. Furthermore, pull tests can be easily conducted at any time to verify the bolt's performance, providing quality assurance for critical ground support applications.
SupHulk rock bolts have been widely adopted in both mining and tunneling sectors. In tunneling, they serve as pattern bolts to support excavations, with the bolting pattern determined by excavation size and rock mass properties. In mining, they are used for roof bolting and hanging wall bolting, where rapid installation and immediate load-bearing capacity are essential for maintaining safe working conditions. The system's versatility is further enhanced by the availability of three capacity ranges (110 kN, 160 kN, 240 kN), allowing engineers to match the bolt to the expected load demands.
Field reports from various projects highlight the system's reliability. On a recent tunnelling project through faulted and weathered rock, the PM24 model was selected for its high breaking load of 240 kN. The contractor reported that installation times were reduced by 30% compared to traditional resin-grouted bolts, and pull tests consistently exceeded the minimum yield load. In a deep underground mine experiencing moderate rockburst activity, the PM16 bolts with their 10% elongation absorbed dynamic movements without any bolt failures, enhancing worker safety and reducing downtime.
The global demand for efficient and reliable ground support systems is rising as infrastructure projects expand into more challenging geological environments. Friction rock bolts like SupHulk offer a compelling alternative to conventional rock bolts because they provide immediate support without the need for curing or grouting. This is particularly advantageous in rapid excavation sequences where time is critical. Moreover, the full-column friction anchorage distributes load evenly, reducing stress concentrations and improving overall tunnel or stope stability.

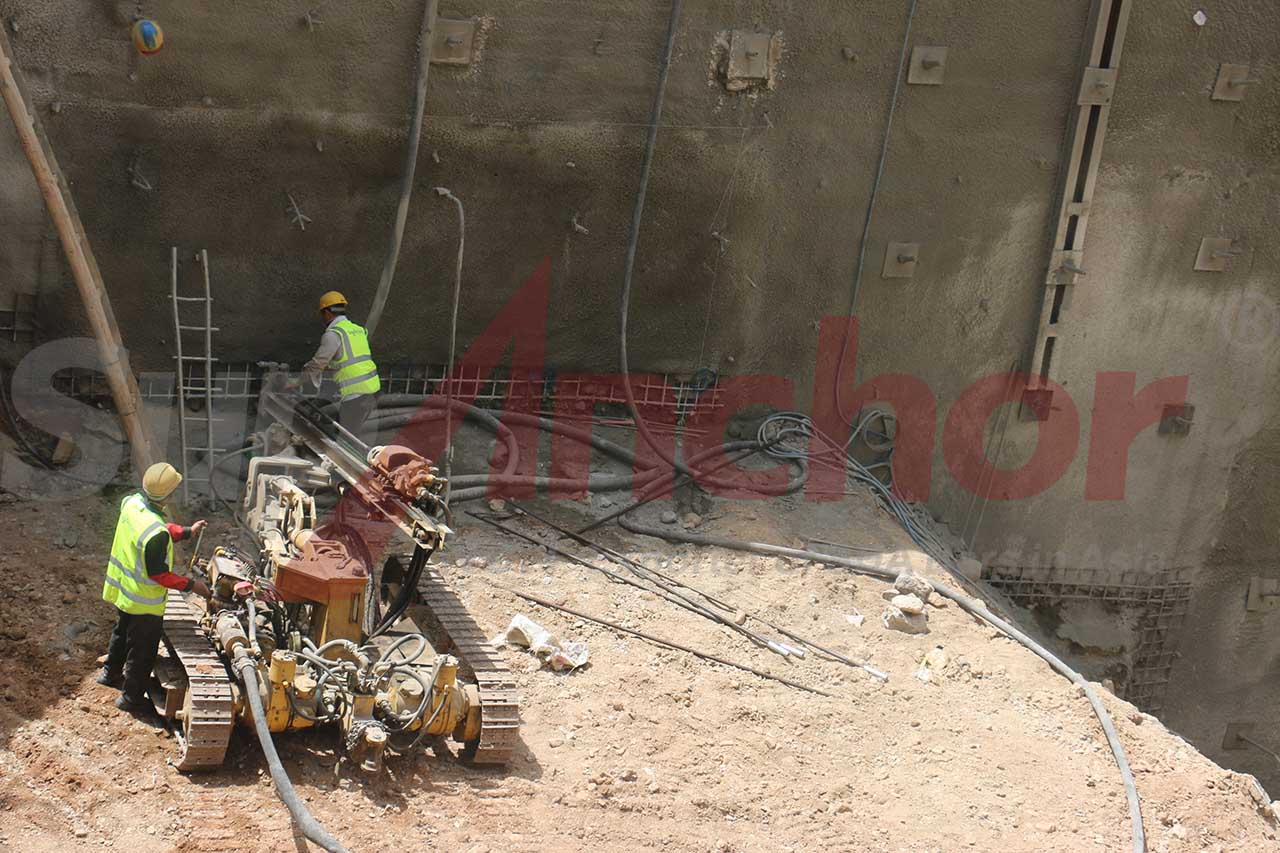

As a leading geotechnical reinforcement system supplier, SupAnchor contributes to this trend by offering a comprehensive range of products, including self drilling anchor systems, self drilling anchor bolts, and hollow bar anchors. These complementary technologies allow contractors to address a wide spectrum of ground conditions—from unconsolidated soils requiring drill-and-grout bolts to hard rock requiring friction bolts. This integrated approach enhances project efficiency and safety, aligning with the industry's focus on sustainable and resilient infrastructure.
SupAnchor's commitment to research and development is evident in the continuous improvement of its product lines. The SupHulk friction rock bolt system benefits from advanced manufacturing processes and rigorous quality control, conforming to international standards such as ISO 9001. The company's global footprint includes successful projects across Europe, the Americas, and Asia, where its products have proven their worth in some of the world's most demanding tunneling and mining operations.
By combining professional engineering expertise, innovative design, and a collaborative approach to customer needs, SupAnchor has established itself as a trusted partner in the geotechnical industry. As a leading soil nail system manufacturer and ground anchor bolt factory, SupAnchor ensures that every product, including the SupHulk series, meets the highest standards of performance and reliability. The SupHulk series exemplifies this philosophy, delivering high performance, ease of use, and adaptability to meet the evolving challenges of underground construction.
In conclusion, the SupHulk friction rock bolt system represents a significant advancement in ground support technology. Its high load capacities, full-length friction anchorage, and rapid installation make it an ideal choice for mining and tunneling projects where safety and productivity are paramount. As global infrastructure continues to grow, innovative solutions like SupHulk will play a crucial role in ensuring the stability and longevity of underground structures.
