As global infrastructure projects increasingly face aggressive environmental conditions—from salt-laden coastal zones to chemical processing plants—the demand for long-lasting, maintenance-free anchoring solutions has never been higher. SupAnchor, recognized as the No.1 manufacturer and exporter of self-drilling anchors in Asia, has addressed this need with its stainless steel self-drilling hollow anchor, a specialized variant within its renowned self drilling anchor system. This product combines the efficiency of a drill-and-grout bolt with the inherent corrosion resistance of stainless steel, offering a permanent geotechnical reinforcement system for demanding applications.
Traditional anchoring methods often require separate drilling, casing, and grouting operations, which can be time-consuming and risky in unstable ground conditions. SupAnchor’s stainless steel self-drilling hollow anchor integrates three functions into a single component: sacrificial drilling rod, injection tube, and reinforcing bar. This 3-in-1 design enables simultaneous drilling and grouting, eliminating the need for temporary casing and significantly improving installation efficiency in unconsolidated or cohesive soils.
The anchor is manufactured from high-grade stainless steel, which inherently resists rust, pitting, and degradation caused by moisture, saltwater, chemicals, and harsh weather. Unlike carbon steel anchors that rely on external coatings—which can be damaged during installation—the stainless steel material provides uniform corrosion protection throughout the entire cross-section. This makes it ideal for permanent applications where long-term structural integrity is non-negotiable.
The ribbed profile of the hollow bar is optimized with a relative rib area (fR) of 0.21–0.33, maximizing bond strength with grouting materials. The 45° angled rib surfaces reduce splitting forces on the surrounding soil or rock, keeping crack widths below 0.1 mm at maximum load. These features ensure reliable load transfer and minimal disturbance to the host ground, even in sensitive geologies.

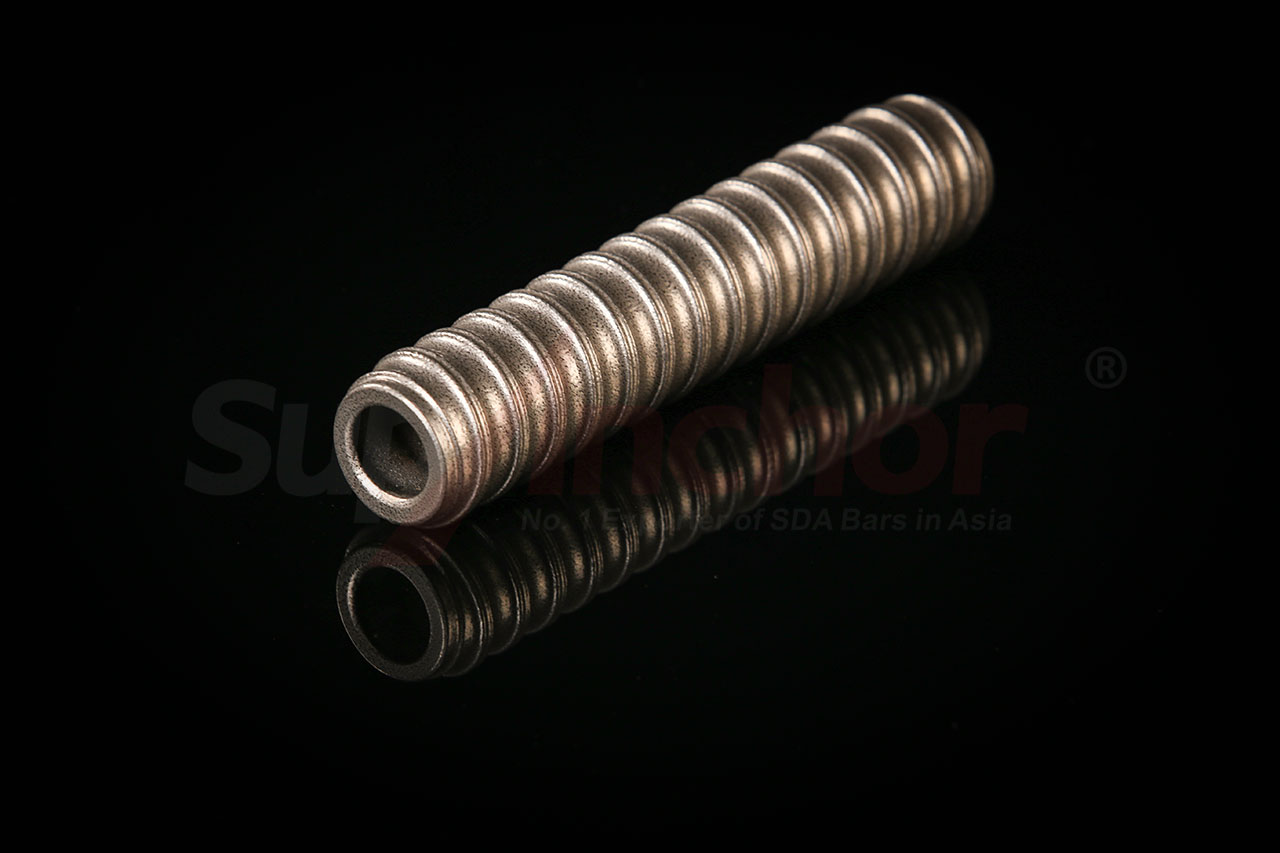

SupAnchor’s stainless steel self-drilling anchor is available in multiple diameters (25 mm, 32 mm, 38 mm, 51 mm) to match project requirements. The representative model R32SS/15, part of the R thread series, delivers impressive mechanical performance:
| Parameter | Value |
|---|---|
| Outside Diameter | 32 mm |
| Internal Diameter | 14 mm |
| Cross Sectional Area | 509 mm² |
| Ultimate Load | ≥405 kN |
| Yield Load | ≥300 kN |
| Weight | 4.00 kg/m |
| Thread Type | ISO 10208 - R32 (Left or Right) |
| Steel Type | Stainless steel (EN standards) |
| Elongation | A100mm ≥6% / Agt ≥5% / A200mm ≥6% |
| Length Options | x2, x3, x4, x5, x6 m |
These specifications demonstrate that the stainless steel variant does not compromise on load-bearing capacity. The R32SS/15 offers ultimate and yield loads comparable to or exceeding standard carbon steel models of the same diameter, ensuring reliable anchoring in permanent structures. The hollow bar anchor is compatible with SupAnchor’s standard accessory range, including SW46 nuts, D42 couplers, and 200×200×12 mm plates, simplifying logistics and reducing on-site complexity.
The corrosion resistance of SupAnchor’s stainless steel self-drilling anchor bolt makes it the preferred choice for a wide range of challenging environments:
In each scenario, the self drilling anchor system eliminates the risk of corrosion-induced strength loss, which is a primary cause of failure in traditional carbon steel anchors. By combining drilling, grouting, and reinforcement in one operation, SupAnchor’s stainless steel anchor reduces installation time and cost while ensuring a durable, high-strength bond.
Global infrastructure investment is increasingly focused on resilience and sustainability. Aging structures in coastal and industrial regions require retrofitting with materials that can withstand harsh conditions without frequent maintenance. The stainless steel hollow bar anchor addresses these needs by providing a long service life and reducing life-cycle costs. Its use in geotechnical reinforcement systems aligns with international standards for durability and safety.
Moreover, the drill-and-grout bolt technology embodied by SupAnchor’s product supports faster project delivery. In tunneling and mining, where ground conditions can be unpredictable, the ability to drill and grout simultaneously minimizes the risk of borehole collapse and ensures immediate support. This adaptability is critical for urban infrastructure projects in Europe and North America, where space constraints and environmental regulations demand efficient, low-impact construction methods.
As a leading soil nail system manufacturer and ground anchor bolt factory, SupAnchor has supplied self-drilling anchors to over 60 countries. Its products are used in major infrastructure projects ranging from alpine tunnels in Switzerland to coastal wind farms in the North Sea. The stainless steel variant extends this proven technology to the most corrosive environments, reinforcing SupAnchor’s position as a one-stop provider of anchoring solutions.
SupAnchor’s reputation is built on continuous R&D and adherence to international standards. The company holds ISO 9001, ISO 14001, and ISO 45001 certifications for quality, environmental management, and occupational health & safety. Its self-drilling anchors comply with EN 14490 and other relevant European standards, ensuring compatibility with global engineering practices.
The stainless steel self-drilling hollow anchor exemplifies SupAnchor’s collaborative approach to product development. Working closely with engineers and contractors, the company identified the need for a corrosion-resistant variant that maintains the ease of installation of its standard anchors. By leveraging advanced stainless steel metallurgy and optimized rib design, SupAnchor delivers a solution that meets both technical performance and long-term economic value.
For project owners and contractors seeking a reliable, maintenance-free anchoring system, SupAnchor’s stainless steel self-drilling anchor offers a compelling combination of innovation, durability, and proven performance. As the demand for resilient infrastructure grows, this product is poised to become a standard choice for geotechnical engineers worldwide.
