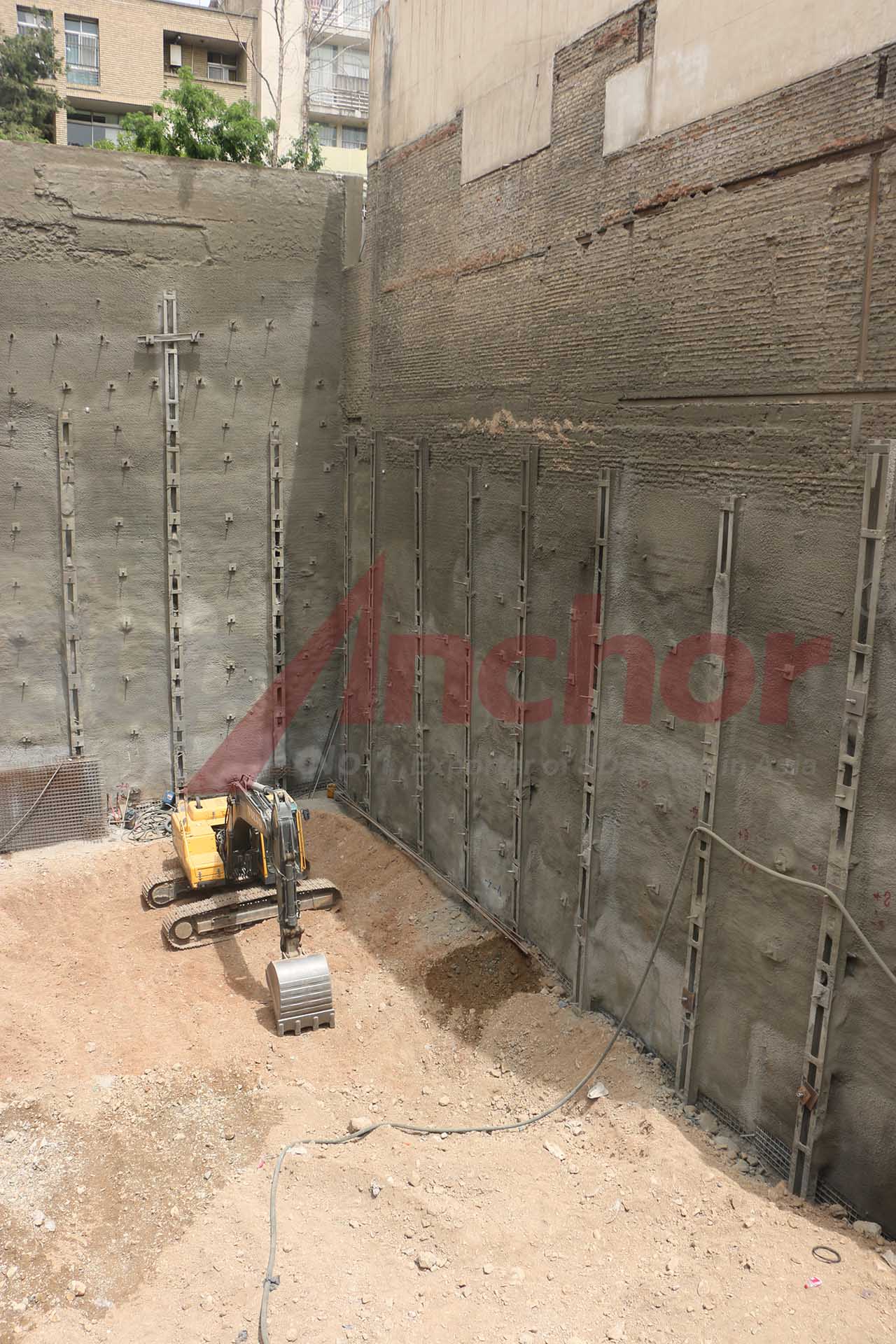

Across tunneling, slope stabilization, and foundation projects in Europe and North America, engineers are increasingly turning to integrated ground support systems that reduce construction time and improve safety. The T thread self-drilling hollow anchor from SupAnchor is a geotechnical reinforcement system that combines drilling, grouting, and reinforcing in a single operation. On a recent highway slope remediation project in the Austrian Alps, crews faced highly fractured rock and cohesive soil that made traditional cased drilling slow and risky. By switching to SupAnchor’s T thread hollow bar anchor, the contractor eliminated casing installation entirely, completing anchor installation 40% faster than originally planned.

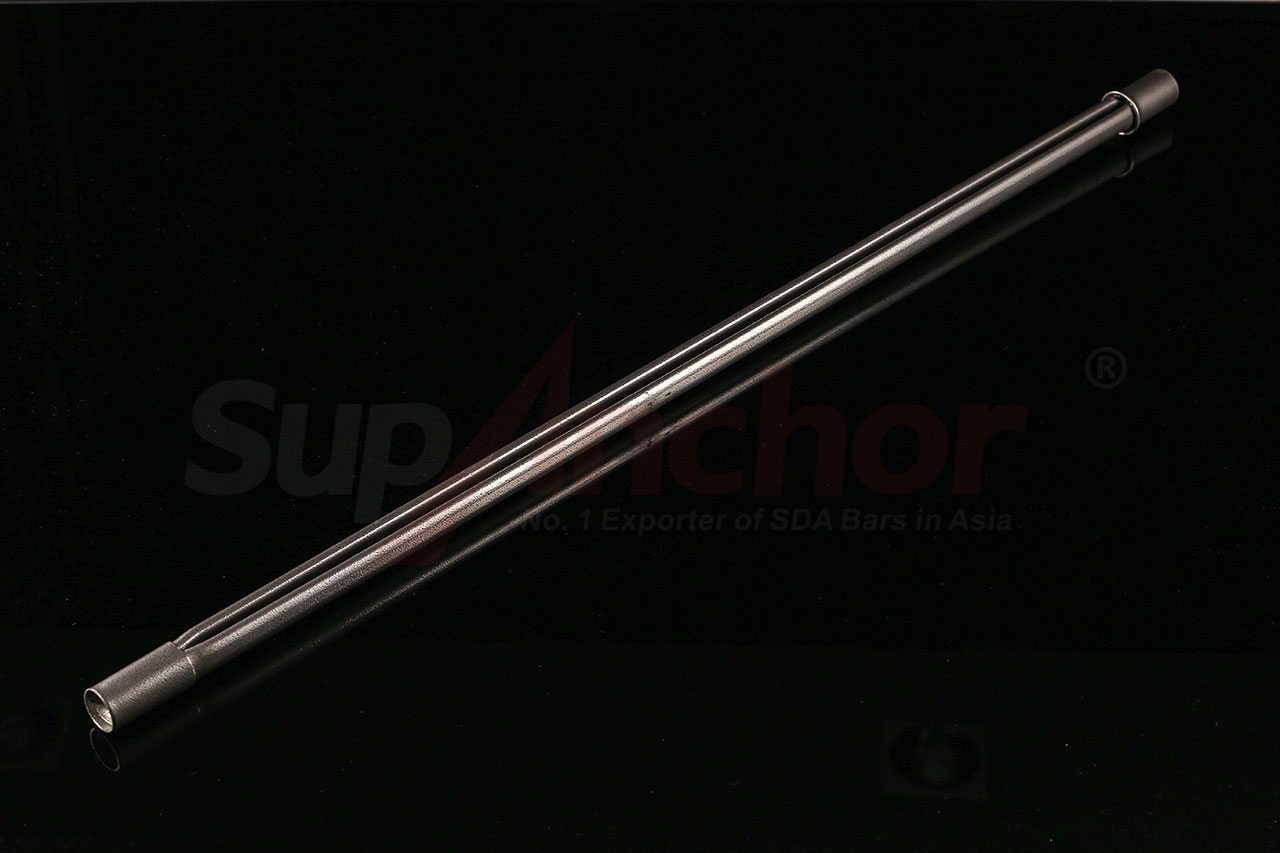

The T thread self-drilling hollow anchor is designed and manufactured in compliance with the T International Standard, ensuring consistent thread specifications and compatibility with standard rotary percussive drilling rigs. The product follows the '3-in-1 principle': a ribbed hollow steel bar acts simultaneously as a sacrificial drilling rod, an injection tube, and a reinforcing bar. This design eliminates the need for separate casing systems, allowing drilling and grouting to occur in one pass. For contractors working in unconsolidated or cohesive soils, this can reduce installation time by 30–50% compared to conventional methods, while also improving safety by reducing the handling of heavy steel components.
Key design parameters of the T thread hollow bar anchor include a left-hand or right-hand T thread and an optimized relative rib area (fR) ranging from 0.21 to 0.33. The rib surfaces are angled at 45°, which significantly reduces splitting forces on the surrounding soil or rock; at maximum load, crack widths remain below 0.1 mm according to laboratory pull-out tests. This rib geometry maximizes bonding performance with grouting materials, ensuring that the anchor transfers load efficiently from the ground to the steel bar.
The table below summarizes technical data for three representative T thread models. These values demonstrate the product’s wide load range, from lighter soil nailing to heavy-duty tunnel support:
| Model | Outside Diameter (mm) | Internal Diameter (mm) | Ultimate Load (kN) | Yield Load (kN) | Weight (kg/m) |
|---|---|---|---|---|---|
| T30/16 | 30 | 16 | ≥220 | ≥180 | 2.70 |
| T30/11 | 30 | 11 | ≥260 | Not specified | ~3.2–3.4 |
| T40/16 | 40 | 16 | ≥660 | ≥525 | 7.17 |
In addition to the models listed, the T thread series includes larger specifications such as T76/1400, T76/1800, T103/3034, and TR variants. These models follow the same T International Standard, ensuring thread compatibility across the entire range. For projects requiring ultimate loads above 1,000 kN, SupAnchor offers the T40/660 and T76/1780 models, which are used in heavy tunnel support and large slope stabilization works. The relative rib area optimization remains consistent across the range, meaning that the bonding performance is predictable regardless of bar diameter.
Corrosion protection is a critical factor for service life. SupAnchor offers three anti-corrosion options for the T thread self-drilling hollow anchor: hot-dip galvanizing for general dry environments, SupCoating (hot-dip galvanizing plus epoxy) for moderately corrosive industrial or semi-coastal conditions, and stainless steel for highly aggressive marine or chemical environments. This range allows project owners to match the anchor grade to the project’s design life and environmental exposure, avoiding unnecessary cost while ensuring durability.
The T thread self-drilling hollow anchor is deployed across multiple ground engineering niches:
Because the system meets the T International Standard, thread compatibility is assured across couplings, nuts, and plates, simplifying on-site logistics and reducing assembly errors. In a metro tunnel project in Scandinavia, engineers used T30/16 anchors for face stabilization in glacial till, achieving installation rates of 120 meters per shift while maintaining strict settlement control. The product line extends from the T30/16 model to large T103 and T114 models with ultimate loads exceeding 2,000 kN, making it suitable for both light soil nailing and heavy-duty tunnel support. This adaptability positions the T thread hollow bar anchor as a versatile drill-and-grout bolt for modern geotechnical engineering.
Global infrastructure spending is driving demand for faster, safer ground support. According to industry estimates, drill-and-grout bolt systems like the T thread self-drilling hollow anchor reduce installation time by 30–50% compared to cased methods, directly lowering project costs and carbon footprint. In mining and tunnel boring, the elimination of separate casing also reduces waste and improves worker safety by minimizing handling of heavy steel. As a leading soil nail system manufacturer and ground anchor bolt factory, SupAnchor has built its reputation on rigorous quality control, continuous R&D, and adherence to international standards including ISO certifications.
SupAnchor, recognized as the No.1 manufacturer and exporter of self drilling anchor systems in Asia, supplies its self drilling anchor bolt products to over 40 countries, supporting metro projects, hydroelectric caverns, and major highway networks. The T thread series, with its optimized rib geometry and multiple corrosion protection grades, is a prime example of the company’s engineering excellence. With a focus on innovation and collaboration, SupAnchor continues to advance the self drilling anchor system technology that underpins safe and efficient underground construction worldwide.
For geotechnical engineers seeking a reliable, high-performance anchor, the T thread self-drilling hollow anchor offers measurable advantages in load capacity, installation speed, and longevity. As underground construction becomes deeper and more complex, integrated self drilling anchor system solutions like this will play an increasingly vital role in securing the world’s infrastructure.
