In a major infrastructure development project located in the mountainous regions of Europe, engineers faced significant geotechnical challenges that demanded an advanced solution for slope stabilization. The project, involving the construction of a new highway corridor, required the reinforcement of steep rock slopes that had been identified as high-risk for landslides and rockfall. The geology of the area consists of highly fractured and weathered rock formations, making traditional anchoring methods inefficient and time-consuming. To address these challenges, the project team turned to SupAnchor, a leading manufacturer of ground anchor systems, and deployed their innovative self drilling anchor system.
The self drilling anchor system, also known as a hollow bar anchor or drill-and-grout bolt, combines drilling, anchoring, and grouting into a single operation. This method significantly speeds up installation and ensures a strong bond with the surrounding ground, even in difficult conditions. On this project, the system provided immediate support to the unstable slope, allowing construction to proceed safely and on schedule.
The highway project, part of a national infrastructure upgrade, includes the construction of several kilometers of new road through challenging terrain. One section in particular required cutting into a steep hillside to create a stable bench for the roadbed. The hillside is composed of heavily jointed limestone and shale, with frequent zones of loose material and groundwater seepage. Initial geotechnical investigations revealed that the slope had a low factor of safety, and without proper reinforcement, the cut could trigger a landslide, endangering workers and future road users.
Traditional rock bolts and soil nails were considered, but these methods require drilling a hole first, then inserting the anchor and grouting it in a separate step. This can be problematic in collapsing ground, where the hole tends to cave in before the anchor can be installed. Moreover, the need for casing or temporary support adds time and cost. The project's tight timeline and strict safety requirements necessitated a more efficient and reliable solution.
SupAnchor's self drilling anchor system offered the ideal answer. The system uses a hollow steel bar with a sacrificial drill bit, which is rotated and driven into the ground while simultaneously injecting grout through the hollow core. This process stabilizes the borehole immediately, prevents collapse, and creates a fully grouted anchor in one pass. The result is a high-capacity anchor that can be installed quickly, even in the most adverse ground conditions.
On-Site Installation

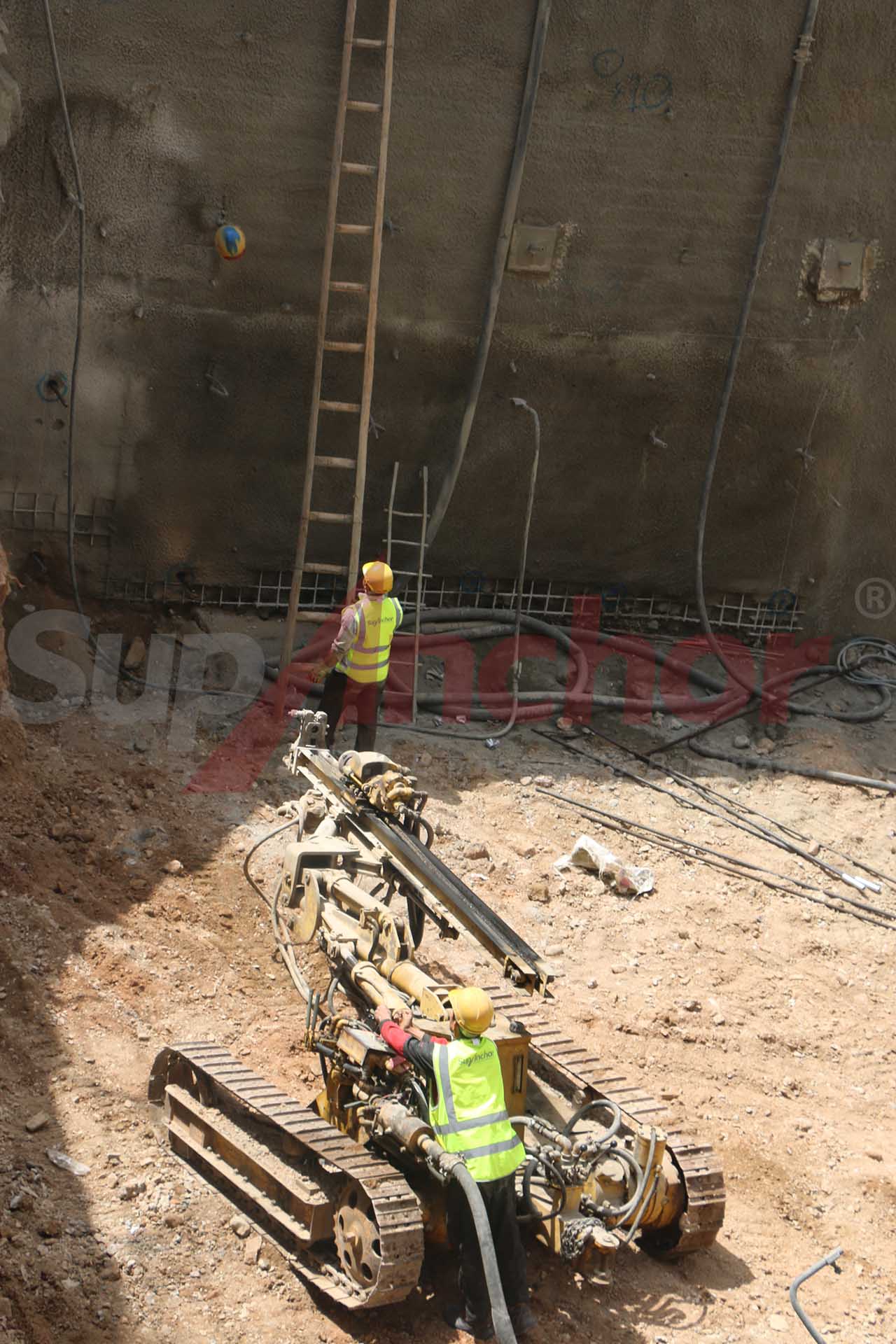

The construction site image shows the self drilling anchor system in action. Workers are seen operating a drilling rig equipped with the hollow bar anchor, with the drill bit penetrating the fractured rock face. The anchor bars, visible in the foreground, are being prepared for installation. The process involves connecting the hollow bar to the drilling rig, threading the sacrificial bit onto the front, and then drilling while pumping cement grout through the bar. The grout exits through holes in the bit, filling the annular space and bonding the bar to the surrounding rock.
This method eliminates the need for a separate casing or hole cleaning, greatly reducing installation time. On this project, crews were able to install up to 40 self drilling anchor bolts per shift, a rate that would have been impossible with conventional methods. The immediate grouting also means that the anchor can be tensioned shortly after installation, providing rapid reinforcement to the slope.
The following table summarizes the key technical parameters of the SupAnchor self drilling anchor system used on this project:
| Parameter | Specification |
|---|---|
| Anchor Type | Self drilling anchor bolt (hollow bar) |
| Bar Diameter | 32 mm (R32) |
| Bar Length | 6 m (custom lengths available) |
| Tensile Strength (Ultimate) | 660 kN |
| Yield Strength | 525 kN |
| Corrosion Protection | Hot-dip galvanized or epoxy coated |
| Grout Type | Cement-based, injected through hollow core |
These parameters demonstrate the system's capability to withstand high loads and resist corrosion, ensuring long-term performance in harsh environments. The 32 mm diameter hollow bar provides an optimal balance between drillability and load capacity, making it suitable for rock and soil applications. The hot-dip galvanized or epoxy coating options offer protection against aggressive groundwater, extending the service life of the anchors.
The project involved the installation of over 2,000 self drilling anchor bolts, totaling more than 12,000 linear meters of anchoring. The anchors were installed in a grid pattern, with spacing ranging from 1.5 to 2.5 meters, depending on the slope angle and rock quality. Real-time monitoring during installation confirmed that the anchors achieved the required bond strength, with pull-out tests exceeding design loads by at least 15%.
The use of the self drilling anchor system on this project not only solved the immediate stability problem but also contributed to overall efficiency. The ability to drill and grout in one step reduced the number of equipment and personnel required, and eliminated the need for separate drilling and grouting operations. This resulted in significant cost savings and a reduced environmental footprint, as less drilling spoils and grout waste were produced.
Key benefits observed during the project include:
The successful application of SupAnchor's geotechnical reinforcement system on this European highway project reflects a broader trend in the construction industry towards more efficient and reliable ground stabilization methods. As infrastructure ages and expands, the demand for robust anchoring solutions continues to grow, particularly in areas prone to landslides, earthquakes, and unstable soil conditions.
Self drilling anchor systems are increasingly being specified for a wide range of applications, including slope stabilization, retaining walls, tunneling, and underground mining. For instance, the rock bolt for underground mining has long been a staple in the mining industry, but the hollow bar anchor offers advantages in terms of speed and adaptability. Similarly, micropile hollow bar anchors are used for foundation underpinning and seismic retrofitting, where access is limited and ground conditions are poor.
The ground stabilization anchor system provided by SupAnchor is also instrumental in the construction of retaining walls, where lateral earth pressures must be resisted. The self drilling anchor for retaining walls allows for the installation of anchors through the wall face without the need for pre-drilling, which is especially useful in urban environments with limited workspace. Additionally, the self drilling bolt for civil engineering is gaining popularity for temporary works, such as excavation support and dewatering, due to its ease of installation and removal.
As a leading soil nail system manufacturer and ground anchor bolt factory, SupAnchor is at the forefront of these developments. The company's commitment to research and development has led to innovations such as improved thread profiles, high-strength steel alloys, and advanced corrosion protection systems. These advancements ensure that their anchor bolt system for geotechnical engineering meets the evolving needs of the industry, providing reliable performance under the most demanding conditions.
SupAnchor's reputation as a trusted provider of geotechnical reinforcement systems is built on decades of experience and a dedication to quality. The company operates state-of-the-art manufacturing facilities that adhere to rigorous quality control procedures, ensuring that every self drilling anchor bolt meets international standards. SupAnchor's products are certified to ISO 9001:2015 and CE marked, demonstrating compliance with European safety and performance requirements.
The company's global footprint includes successful projects in over 50 countries, spanning transportation, mining, water conservancy, and energy sectors. From the steep slopes of the Andes to the tunnels of the Alps, SupAnchor's drill-and-grout bolts have proven their effectiveness in some of the world's most challenging geological conditions. This project is yet another example of how SupAnchor's solutions deliver value to clients by reducing risk, saving time, and lowering costs.
In line with its core values of "Professional, Innovative, Collaborative," SupAnchor works closely with contractors, engineers, and project owners to provide tailored solutions. The company's technical team offers design support, installation training, and on-site guidance to ensure optimal performance of the self drilling anchor system. For projects requiring direct supply, SupAnchor's SDA bolt factory direct supply model ensures competitive pricing and timely delivery, further enhancing project efficiency.
The product image shows a close-up of the SupAnchor self drilling anchor bolt, featuring the threaded hollow bar and sacrificial drill bit. This design allows for efficient drilling and grouting, providing a seamless connection between the anchor and the surrounding ground. The bolt's robust construction and high-grade steel ensure durability and load-bearing capacity, making it an essential component of any ground stabilization anchor system.
As the construction industry continues to embrace sustainable and resilient infrastructure, the role of advanced anchoring technologies becomes increasingly important. SupAnchor remains committed to driving innovation in geotechnical engineering, delivering products that not only meet but exceed the expectations of the global market. The success of this highway slope stabilization project is a testament to the effectiveness of the self drilling anchor system and the expertise of the team behind it.
