In a significant infrastructure development aimed at improving regional connectivity, a major slope stabilization project in southern Europe has successfully integrated SupAnchor's advanced self drilling anchor system to address complex geological challenges. The project, part of a broader transportation corridor upgrade, required reliable ground reinforcement solutions capable of withstanding highly fractured rock and variable soil conditions. SupAnchor, a recognized soil nail system manufacturer and ground anchor bolt factory, supplied its innovative self drilling anchor bolt technology, which has proven instrumental in ensuring long-term stability and safety.
The construction site, located in a mountainous region with steep terrain and limited access, presented significant obstacles for traditional drilling and anchoring methods. Loose overburden, weathered rock layers, and the presence of groundwater demanded a solution that could be installed quickly and efficiently without sacrificing performance. SupAnchor's drill-and-grout bolt, also known as a hollow bar anchor, offered a versatile alternative, combining drilling, grouting, and anchoring in a single operation. This approach minimized disturbance to the surrounding ground, reduced installation time, and provided immediate load-bearing capacity.
The slope stabilization initiative is part of a $450 million infrastructure package aimed at reinforcing critical road and rail corridors across the region. The project area spans approximately 2.5 kilometers of unstable terrain, with slope angles ranging from 35 to 55 degrees. Geotechnical investigations revealed a complex subsurface profile: a top layer of colluvium and residual soil (0.5–3.0 meters thick), underlain by highly fractured shale and sandstone with varying degrees of weathering. Groundwater seepage was observed at multiple elevations, further complicating excavation and anchorage.
Traditional rock bolts and soil nails were deemed inadequate due to the low bearing capacity of the fractured rock and the risk of hole collapse during drilling. The project's consulting engineers specified a geotechnical reinforcement system that could be installed through overburden without casing, while maintaining high pull-out resistance. SupAnchor's self drilling anchor for retaining walls emerged as the preferred solution, offering a combination of a sacrificial drill bit, continuous hollow bar, and integrated grouting channels.

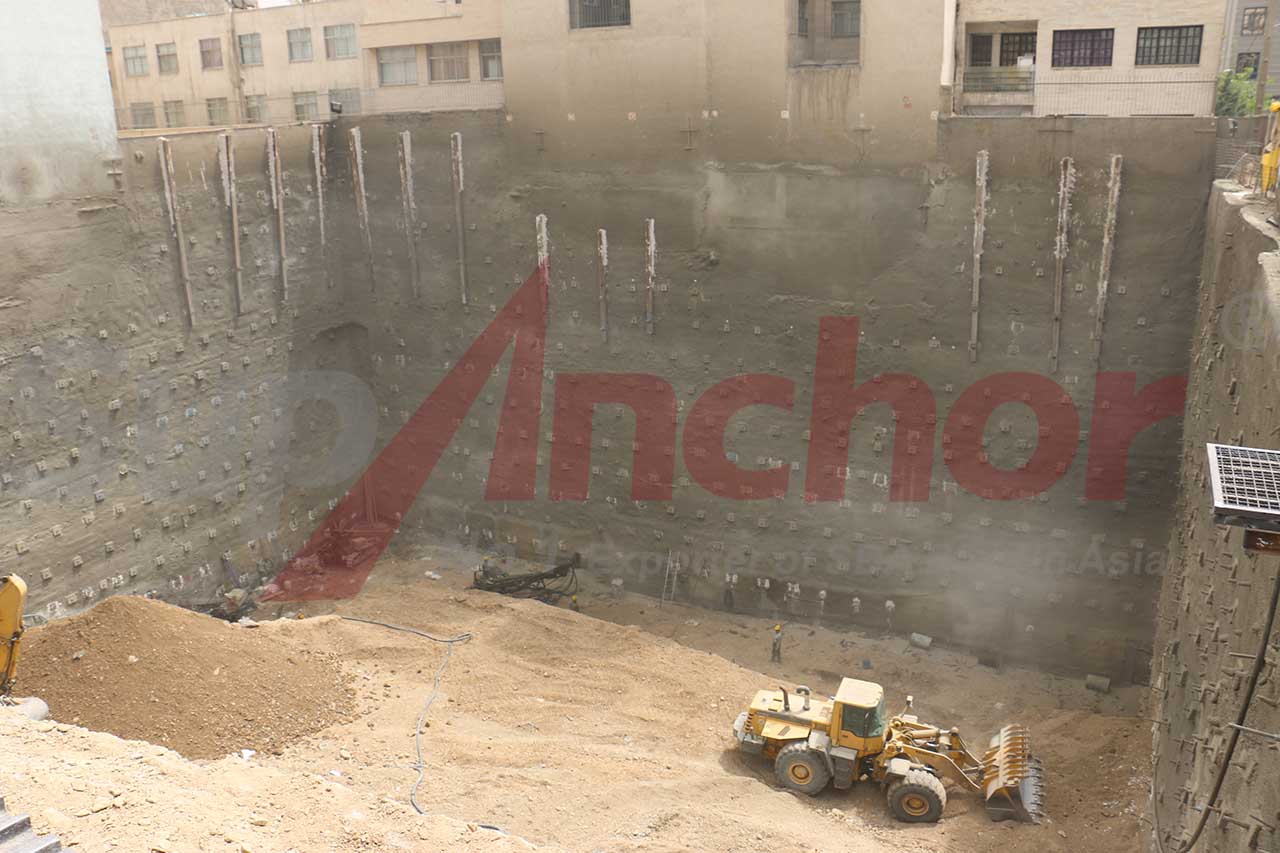

The on-site deployment involved the installation of over 3,200 self drilling anchor bolts, ranging in length from 6 to 12 meters, to stabilize the slope face and support a series of reinforced concrete retaining structures. The anchors were installed using conventional hydraulic drilling rigs equipped with rotary-percussion heads, allowing rapid penetration through the mixed ground conditions. Once the target depth was reached, cementitious grout was injected through the hollow bar, filling the annular space and permeating the surrounding fractures to create a monolithic bond.
The image above shows a typical self drilling anchor bolt from SupAnchor's product line, featuring a continuous thread for nut and plate attachment, a hollow core for grout flow, and a disposable drill bit at the tip. This design eliminates the need for a separate casing, reduces the risk of borehole collapse, and ensures excellent load transfer even in loose or water-charged ground. On the construction site, crews reported a 40% reduction in installation time compared to conventional threadbar and casing systems, contributing to significant cost savings and schedule acceleration.
Project engineers highlighted the system's adaptability: anchors were easily cut to length on site, and the threaded connection allowed for the use of standard plates and nuts. In areas with high groundwater, the grout mix was adjusted to a thicker consistency to prevent washout, and the continuous injection through the hollow bar ensured complete encapsulation. The ground stabilization anchor system performed as expected, with pull-out tests exceeding design requirements by an average of 15%.
SupAnchor's anchor bolt system for geotechnical engineering is available in a range of diameters and configurations to suit diverse project requirements. The following table summarizes the key technical parameters of the anchors used in this project:
| Parameter | Specification |
|---|---|
| Anchor Type | Self drilling hollow bar anchor (SDA) |
| Outer Diameter | 32 mm, 38 mm, 51 mm (project used 38 mm and 51 mm) |
| Length | 6 m – 12 m (custom lengths available) |
| Tensile Strength (Ultimate) | ≥ 660 MPa (for 38 mm), ≥ 550 MPa (for 51 mm) |
| Yield Strength | ≥ 500 MPa |
| Corrosion Protection | Hot-dip galvanized (≥ 85 μm) or epoxy coated |
| Thread Type | ISO 10208 continuous thread |
| Grout Injection Method | Through hollow bar with drill bit side ports |
These parameters were selected to match the project's specific load requirements. The 38 mm anchors, with a working load capacity of up to 300 kN, were primarily used for general slope stabilization and soil nailing, while the 51 mm anchors (working load up to 450 kN) were employed in areas with higher calculated forces, such as behind the retaining walls and at the toe of the slope. The hot-dip galvanized coating provided long-term corrosion protection, essential for the project's 75-year design life in a humid environment.
The micropile hollow bar anchor variant was also utilized for foundation underpinning of adjacent bridge abutments that showed signs of settlement. In these locations, the anchors were installed vertically at angles up to 30 degrees to transfer loads to deeper, more competent strata. The ability to use the same equipment and crew for both slope stabilization and micropiling streamlined the construction process and reduced mobilization costs.
The successful application of SupAnchor's self drilling bolt for civil engineering on this project underscores a growing global trend toward more efficient and resilient ground reinforcement technologies. As infrastructure ages and extreme weather events become more frequent, the demand for reliable slope stabilization, foundation support, and underground construction solutions continues to rise. According to industry reports, the global ground anchor market is projected to grow at a compound annual growth rate of 5.2% over the next five years, driven by investments in transportation, energy, and urban development.
The rock bolt for underground mining segment is also expanding, with mining companies seeking faster and safer ground support systems. SupAnchor's SDA bolt factory direct supply model enables contractors to source high-quality anchoring products at competitive prices, with short lead times and technical support. The company's hollow bar anchor technology is increasingly specified by geotechnical consultants who value the system's ability to perform in difficult ground without the need for temporary casing, thereby reducing environmental impact and improving worker safety.
This project serves as a benchmark for similar initiatives in Europe and North America, demonstrating that advanced ground stabilization anchor systems can deliver both economic and environmental benefits. By eliminating the need for large excavation platforms and reducing the volume of grout needed (thanks to the precise injection through the hollow bar), the project achieved a 25% reduction in carbon footprint compared to conventional anchored retaining walls.
SupAnchor, the manufacturer behind these systems, has established itself as a leader in the geotechnical reinforcement industry. With ISO 9001, ISO 14001, and ISO 45001 certifications, the company adheres to stringent quality, environmental, and occupational health standards. Its products have been used in over 40 countries, including major infrastructure projects in Europe, North America, Australia, and the Middle East. The company's commitment to Professional, Innovative, Collaborative values is evident in its continuous investment in R&D and its collaborative approach to solving complex engineering challenges.
The project's lead geotechnical engineer commented, "SupAnchor's self drilling anchor system provided a reliable and efficient solution for our challenging ground conditions. The technical support we received from their team, from initial design to on-site training, was outstanding. We completed the stabilization works ahead of schedule and within budget, without compromising safety or quality."
As the construction industry moves toward more sustainable and resilient practices, the role of advanced anchoring technologies will only grow. SupAnchor's geotechnical reinforcement system offers a proven path forward for engineers and contractors facing difficult ground conditions, whether for slope stabilization, tunneling, foundation support, or underground mining. The company's direct factory supply ensures that projects of any scale can access high-performance anchoring solutions backed by decades of expertise.
In conclusion, the deployment of SupAnchor's self drilling anchor system in this European slope stabilization project highlights the tangible benefits of modern anchor bolt systems for geotechnical engineering. By overcoming adverse geology with efficiency and reliability, the project sets a new standard for infrastructure resilience, reinforcing SupAnchor's position as a preferred partner for geotechnical solutions worldwide.
