A major infrastructure undertaking in a region characterized by highly fractured rock and unconsolidated overburden has turned to SupAnchor's advanced self drilling anchor system to overcome severe ground stabilization challenges. The project, which includes deep excavations, slope retention, and foundation support, demanded a robust geotechnical reinforcement solution capable of performing under high groundwater pressure and variable strata. SupAnchor, recognized as a leading soil nail system manufacturer, supplied its proven self drilling anchor bolt technology to ensure structural integrity and construction safety.
The site presented classic difficulties for conventional anchoring methods: loose colluvium overlying weathered bedrock, frequent cobbles and boulders, and a high water table. Traditional drilling and casing methods proved slow and prone to hole collapse. The project engineers required a fast, reliable, and cost-effective alternative. SupAnchor's drill-and-grout bolt offered a single-pass installation that eliminated the need for temporary casing, dramatically reducing installation time and material waste.

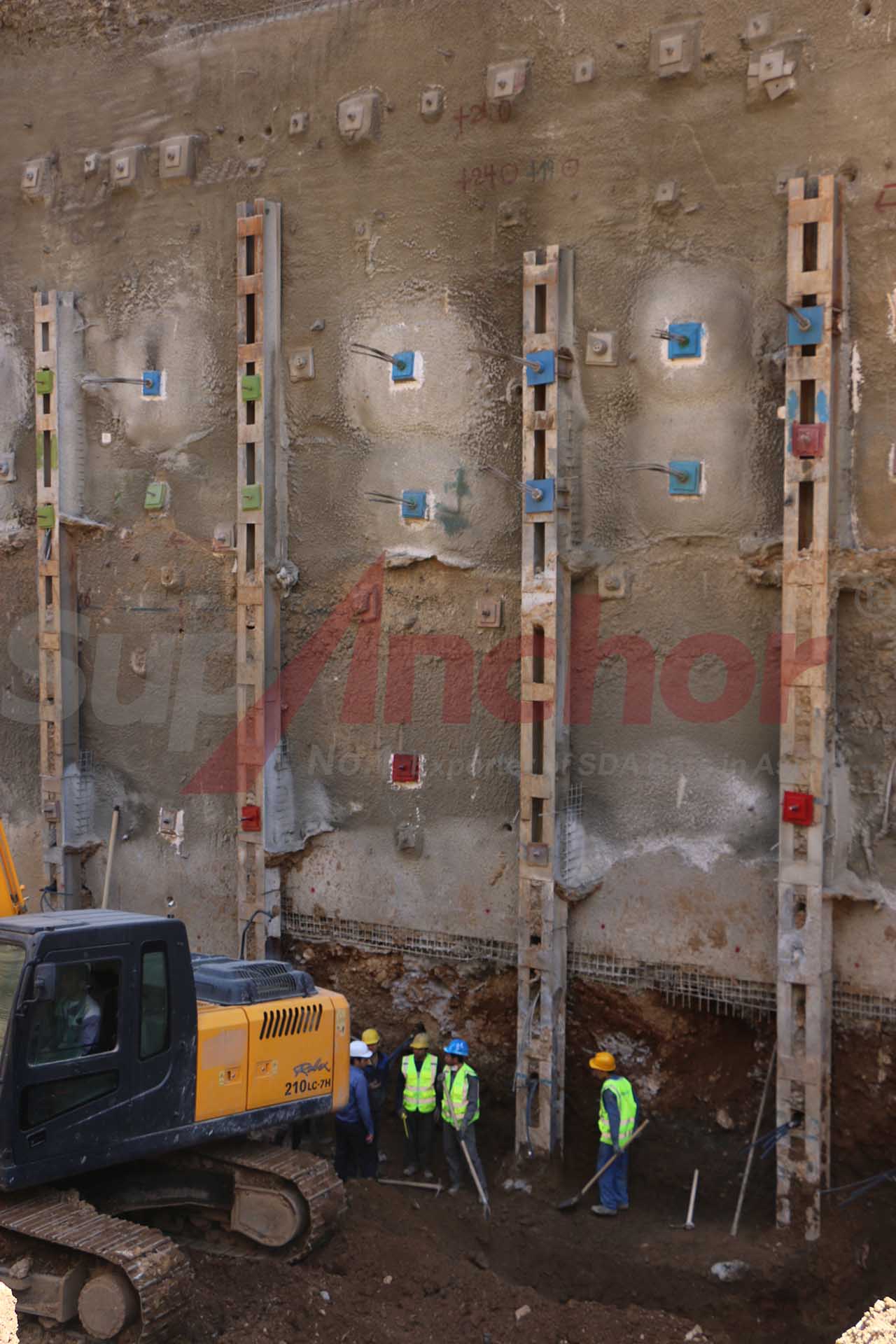

At the construction site, crews utilized SupAnchor's hollow bar anchor as both the drill rod and the permanent reinforcement element. The hollow core allowed continuous grout injection during drilling, which stabilized the borehole and produced a high-capacity bond with the surrounding ground. Field engineers reported exceptional performance in mixed ground conditions, where the anchor's high torque capacity and aggressive thread profile enabled penetration through dense gravel and fractured rock.
The following table summarizes the key technical parameters of the anchor bolt system for geotechnical engineering deployed on the project:
| Parameter | Specification | Site Benefit |
|---|---|---|
| Tensile Strength | ≥ 600 MPa (Grade 75/80) | High load capacity for deep excavation support |
| Yield Strength | ≥ 500 MPa | Permanent deformation resistance under working loads |
| Diameter | 25 mm, 32 mm, 38 mm, 51 mm | Flexibility to match anchor design capacity and ground conditions |
| Length | 2 m to 12 m (custom lengths available) | Adaptable to variable depth to competent stratum |
| Corrosion Protection | Hot-dip galvanized (≥ 85 µm) or epoxy coated | Long-term durability in aggressive groundwater |
| Thread Type | Rope thread (ISO 10208 compliant) | Efficient load transfer and coupler compatibility |
The technical specifications above were carefully selected to address the site's specific challenges. The high tensile strength of the self drilling anchor bolt provided the necessary safety margin for retaining wall support, while the corrosion protection ensured a design life exceeding 50 years even in the presence of sulphates. The wide range of available diameters allowed the geotechnical engineer to optimize the anchor density, balancing cost and performance.
During installation, the drill-and-grout bolt was advanced using a rotary-percussive drill rig. Grout was pumped through the hollow bar at a controlled pressure, filling the annular space and permeating the surrounding soil and rock fractures. This process created a composite anchor body with a rough surface, significantly enhancing the frictional resistance. The result was a geotechnical reinforcement system that exceeded the design pull-out capacity in all test anchors performed on site.
The successful deployment of SupAnchor's self drilling anchor system on this project underscores the growing global demand for efficient and reliable ground stabilization methods. According to industry analysts, the geotechnical engineering market is projected to grow at a CAGR of over 6% through 2030, driven by infrastructure expansion, urbanization, and the need to repair aging transportation networks. SupAnchor's technology directly addresses these needs by offering a solution that reduces construction time, minimizes environmental disturbance, and improves worker safety.
The project also highlighted the critical role of a reliable ground anchor bolt factory in delivering consistent quality. SupAnchor's ISO 9001-certified manufacturing facilities ensure that every self drilling bolt for civil engineering meets stringent international standards. The company's direct supply model, often referred to as SDA bolt factory direct supply, eliminates intermediaries, reducing costs and lead times for contractors.
As infrastructure investment accelerates worldwide, particularly in transportation and energy sectors, the demand for advanced anchoring systems is expected to surge. The trend toward larger tunnel projects, deeper excavations, and more complex urban developments requires innovative solutions like the micropile hollow bar anchor. SupAnchor has been at the forefront of this evolution, continuously refining its products to meet the evolving needs of geotechnical engineers.
One notable application is in underground mining, where the rock bolt for underground mining plays a vital role in ground support. SupAnchor's self drilling anchors are increasingly being adopted in mining operations due to their ability to install rapidly in fractured rock masses, improving cycle times and miner safety. Similarly, the ground stabilization anchor system is finding new uses in renewable energy projects, such as wind turbine foundations and solar farm installations on sloping terrain.
In the realm of retaining wall construction, the self drilling anchor for retaining walls has become a preferred choice for engineers seeking a cost-effective alternative to traditional tiebacks. The ability to install the anchor without pre-drilling a hole greatly simplifies the construction sequence and allows work to proceed in confined spaces. This was evident on the current project, where limited access between existing structures made conventional drilling equipment impractical.
SupAnchor's reputation as a leader in the geotechnical industry is built on three core values: professionalism, innovation, and collaboration. The company invests heavily in research and development, resulting in products that incorporate the latest materials science and manufacturing techniques. Its technical support team works closely with project engineers from design through installation, ensuring that each anchor bolt system for geotechnical engineering is tailored to the specific ground conditions.
All SupAnchor products are manufactured under ISO 9001 and CE certifications, and the company has completed numerous international projects across Europe, North America, and Asia. This global experience provides a deep understanding of diverse geological challenges and regulatory requirements. Clients benefit from a partner that not only supplies high-quality hollow bar anchor products but also offers comprehensive training and on-site support.
The current project stands as a testament to the effectiveness of SupAnchor's self drilling anchor system. By overcoming difficult ground conditions with innovative technology, the project team achieved significant cost savings and accelerated the construction schedule. As infrastructure demands continue to grow, SupAnchor remains committed to delivering reliable, safe, and sustainable solutions for the global construction industry.
In conclusion, the deployment of the self drilling anchor bolt in this infrastructure project demonstrates the critical importance of advanced geotechnical reinforcement systems in modern civil engineering. With its proven performance, robust design, and commitment to quality, SupAnchor continues to set the standard for ground stabilization technology worldwide.
