In the demanding world of underground construction and geotechnical engineering, reliable ground support is paramount. Addressing the need for a rapid, secure, and cost-effective anchoring solution, SupAnchor—a recognized manufacturer of advanced ground reinforcement technologies—has unveiled the SupShell Expansion Rock Bolt System. This innovative system combines the benefits of a self drilling anchor system with the immediate mechanical anchorage of an expansion shell, followed by efficient grouting for long-term stability. Designed for challenging geological conditions, the SupShell bolt is poised to enhance safety and productivity in tunneling, mining, and slope stabilization projects across Europe and North America.
The SupShell system is specifically engineered to overcome the limitations of conventional rock bolts, which often require separate drilling and anchoring steps. By integrating the expansion shell with a hollow bar anchor, SupAnchor delivers a solution that can be installed quickly, provides immediate load-bearing capacity, and allows subsequent grouting without the need for removal or re-drilling. This dual-action mechanism—mechanical and chemical—ensures robust strata control in fractured rock, loose ground, and high-stress environments. Contractors benefit from a streamlined process: drill the hole, insert the bolt, expand the shell for immediate anchorage, and then grout through the hollow core. This sequence reduces cycle times and enhances overall project efficiency.
The SupShell Expansion Rock Bolt System is available in five standard configurations, tailored to different drilling hole diameters and load requirements. The system features expansion shell models R25, R28, and R32, with corresponding outside diameters ranging from 36 mm to 48 mm. All models are manufactured from CK45 steel, which offers a balanced combination of strength and ductility, and feature ISO 10208 thread profiles (R25, R28, R32) for compatibility with standard drilling equipment. The table below summarizes the key technical data for each variant.
| Expansion Shell Model | Specification | Outside Diameter (mm) | Drilling Hole Diameter (mm) | Length (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| R25 | R25/EX36 | 36 | Φ40-Φ42 | 132 | 0.62 |
| R28 | R28/EX40 | 40 | Φ44-Φ46 | 136 | 0.84 |
| R32 | R32/EX44 | 44 | Φ48-Φ50 | 135 | 0.82 |
| R32 | R32/EX46 | 46 | Φ50-Φ52 | 176 | 1.2 |
| R32 | R32/EX48 | 48 | Φ52-Φ54 | 165 | 1.45 |
The range of drilling hole diameters accommodates various drill bits and ground conditions, while the varying lengths and weights allow engineers to select the optimal bolt for specific load and support requirements. The CK45 steel provides excellent yield and tensile strength, ensuring the bolt can withstand high axial and shear forces. Additionally, the option for galvanization under ISO 1461 ensures corrosion resistance in aggressive environments, extending the service life of the geotechnical reinforcement system.
A key advantage of the SupShell system is its integrated injection mechanism. Grout is pumped through the hollow core of the bolt, filling the annular space from the bottom up. A plastic sealing element prevents grout leakage from the drill hole, ensuring complete encapsulation and creating a strong chemical bond between the steel and the surrounding rock mass. This dual mechanical and chemical anchorage significantly enhances the long-term stability of the excavation, making the system suitable for both temporary and permanent support applications. Whether used as a pre-grouted anchor in water-bearing ground or as a post-grouted reinforcement in fractured rock, the SupShell bolt delivers consistent performance. All models feature the robust construction of a self drilling anchor bolt, with the hollow core enabling efficient grout injection.
The SupShell Expansion Rock Bolt System is ideally suited for a variety of underground and surface applications where rapid ground support is critical. In tunneling, it can be used for systematic rock bolting immediately after excavation, reducing the time the face is unsupported and improving overall advance rates. In mining, it provides reliable roof and rib support in development headings and stopes, contributing to improved fortification cycles and enhanced safety. For slope stabilization and foundation works, the system offers a versatile drill-and-grout bolt solution that can be installed in difficult access areas, even with limited headroom.
Key features that enhance its adaptability include:
The system's adaptability extends to various rock types, from soft ground to hard rock. The expansion shell can be adjusted to fit different borehole sizes within the specified range, and the hollow bar anchor design allows for continuous grouting without interruption. This makes it a preferred choice for contractors seeking a reliable geotechnical reinforcement system that minimizes downtime and maximizes safety. Furthermore, the SupShell bolt can be used in conjunction with mesh, straps, or shotcrete to create a comprehensive ground support system.
As global investment in underground infrastructure continues to grow—driven by urbanization, renewable energy storage, and efficient transportation networks—the demand for high-performance ground support solutions is escalating. The SupShell system addresses this demand by offering a cost-effective alternative to traditional rock bolts and cable bolts, with reduced installation time and lower total cost of ownership. Its immediate anchorage capability reduces the need for temporary support, accelerating project schedules and improving cash flow for contractors.
For mining operations, where ground control is a critical safety factor, the combination of mechanical and chemical anchorage provides redundancy and reliability. The ability to post-grout after installation allows for enhanced reinforcement in fractured or faulted zones, reducing the risk of rock falls and improving worker safety. Furthermore, the galvanized option ensures long-term durability in corrosive underground environments, lowering maintenance costs and extending the life of the excavation.
From a sustainability perspective, the SupShell system contributes to reduced material waste and energy consumption by optimizing bolt lengths and minimizing over-drilling. The hollow bar anchor design also allows for re-grouting at a later stage if ground conditions change, providing long-term adaptability. These benefits align with the industry's increasing focus on environmental responsibility and lifecycle cost analysis.
SupAnchor has established itself as a leading soil nail system manufacturer and ground anchor bolt factory, delivering engineered anchoring solutions for projects in over 50 countries. The company's commitment to innovation is reflected in its continuous R&D efforts, which have produced a comprehensive range of self drilling anchor systems, including hollow bar anchors and drill-and-grout bolts. All products are manufactured under strict quality control, complying with international standards such as EN 10083 and ISO 1461, and are backed by technical support and on-site training.
With the SupShell Expansion Rock Bolt System, SupAnchor reinforces its position as a professional, innovative, and collaborative partner for geotechnical engineers and contractors worldwide. The system not only meets the technical demands of modern construction but also contributes to safer, faster, and more sustainable project delivery. As infrastructure projects become more complex and ground conditions more challenging, SupAnchor remains dedicated to providing advanced anchoring solutions that push the boundaries of performance and reliability.

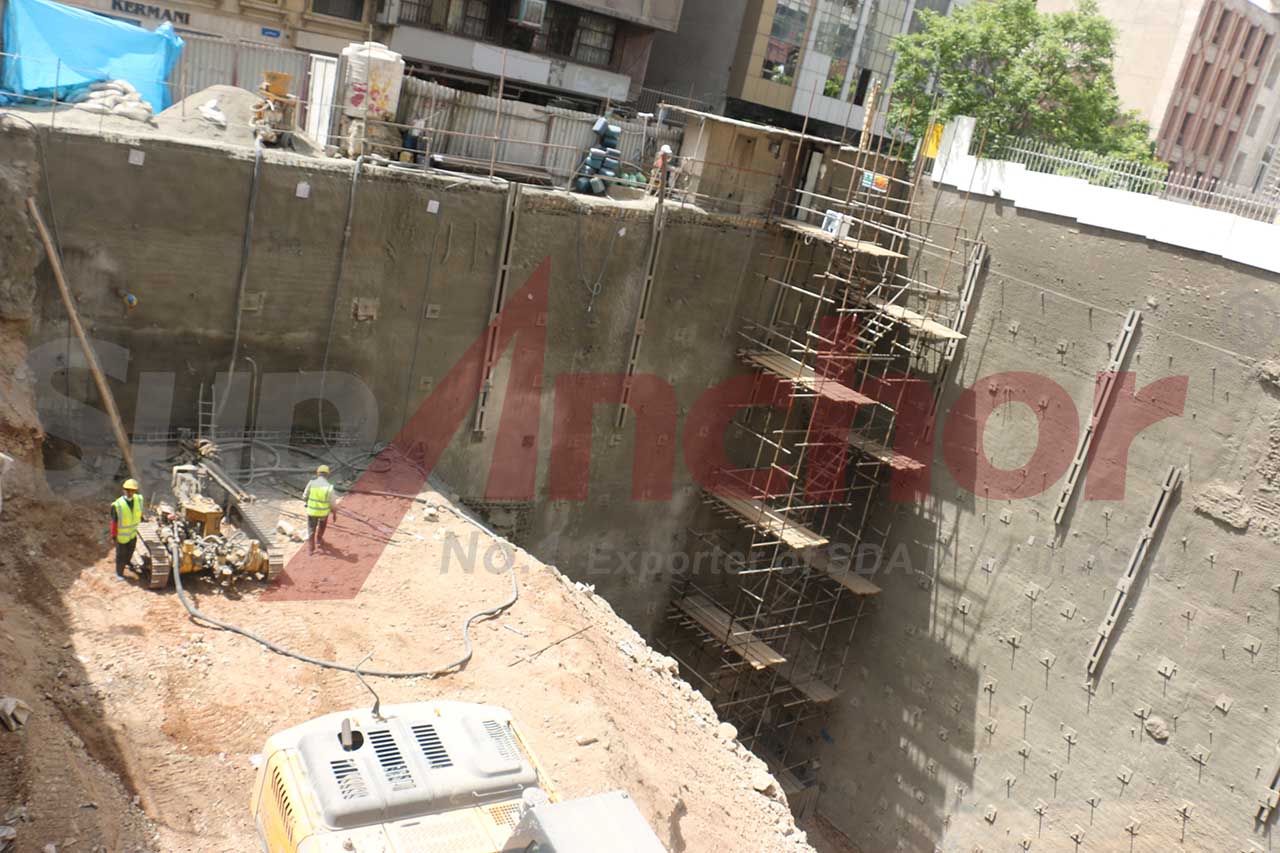

SupAnchor's self drilling anchor system provides reliable ground stabilization in a large-scale infrastructure project, overcoming difficult geology and ensuring safety.
