In the evolving landscape of civil infrastructure, the demands on concrete pavement joints have never been higher. From freeze-thaw cycles in northern climates to the relentless thermal expansion of desert highways, engineers require load transfer solutions that combine longevity, corrosion resistance, and mechanical precision. SupAnchor®, a global leader in geotechnical reinforcement systems, has addressed these challenges with its advanced GFRP Dowel Bar line, now available to infrastructure projects worldwide.
The SupFRP® GFRP Dowel Bar, crafted from premium glass fiber reinforced polymer, delivers a 100+ year service life and zero corrosion, making it an ideal choice for modern jointed rigid pavement and other critical construction joints. As part of SupAnchor’s broader portfolio—which includes self drilling anchor systems, hollow bar anchors, and drill-and-grout bolts—the GFRP dowel bar represents a strategic expansion into high-durability load transfer devices.
Concrete slabs in pavements, industrial floors, and bridge approaches are subject to repeated thermal cycling, moisture ingress, and heavy traffic loads. Traditional steel dowel bars, while common, are vulnerable to corrosion—especially in environments exposed to de-icing salts, marine air, or aggressive soils. Corrosion not only reduces the effective cross-section of the dowel, leading to premature joint failure, but also causes concrete spalling and costly maintenance. Engineers increasingly seek non-metallic alternatives that maintain load transfer efficiency over the entire design life of the structure.
SupAnchor’s GFRP dowel bars are engineered to meet these exacting requirements. Made from high-strength glass fibers embedded in a corrosion-resistant polymer matrix, they provide a mechanical link between adjacent slabs while allowing horizontal movements to accommodate thermal expansion and contraction. This ensures structural stability during temperature fluctuations without the risk of rust or degradation.
The SupFRP® GFRP Dowel Bar is available in six standard diameters, ranging from 16 mm to 45 mm, with corresponding transverse shear loads from 35 kN to 255 kN. The table below summarizes the key technical data for each model.
| Model | Outside Diameter (mm) | Transverse Shear Load (kN) | Nominal Cross Sectional Area (mm²) | Coefficient of Thermal Expansion (x10⁻⁶/℃) | Weight (kg/m) |
|---|---|---|---|---|---|
| DB16 | 16 | 35 | 200 | 9-11 | 0.43 |
| DB20 | 20 | 55 | 310 | 9-11 | 0.67 |
| DB25 | 25 | 85 | 490 | 9-11 | 1.05 |
| DB32 | 32 | 130 | 800 | 9-11 | 1.71 |
| DB38 | 38 | 180 | 1130 | 9-11 | 2.41 |
| DB45 | 45 | 255 | 1590 | 9-11 | 3.37 |
The coefficient of thermal expansion (CTE) of 9–11 x10⁻⁶/℃ closely matches that of concrete (typically 10 x10⁻⁶/℃), minimizing internal stresses at the joint interface. This compatibility reduces the risk of cracking or spalling, especially in regions with large temperature swings. The non-conductive and non-magnetic properties make the dowel bars particularly suitable for work areas with electromagnetic sensitivities, such as MRI facilities, railway signaling zones, and laboratories.
The SupFRP® GFRP Dowel Bar is engineered for a wide range of applications. In jointed rigid pavement—such as highways, airport runways, and container yards—the bars provide reliable load transfer while resisting corrosion from de-icing chemicals and moisture. In electromagnetic-sensitive areas, their non-metallic nature prevents interference with sensitive equipment. For construction joints in slabs, embankments, and MSE walls, they offer a durable, maintenance-free solution that extends the service life of the entire structure.
Globally, infrastructure owners are increasingly prioritizing long-term durability and sustainability. The use of GFRP dowel bars aligns with these goals by reducing maintenance frequency, minimizing material waste, and enhancing the resilience of transportation networks. As a leading soil nail system manufacturer and ground anchor bolt factory, SupAnchor’s expansion into GFRP products reinforces its commitment to providing comprehensive geotechnical and structural reinforcement solutions.
SupAnchor® has built a reputation for professional, innovative, and collaborative engineering solutions. With ISO-certified manufacturing facilities and a portfolio that spans self drilling anchor systems, hollow bar anchors, drill-and-grout bolts, and now GFRP dowel bars, the company supports projects in tunneling, mining, slope stabilization, and infrastructure construction across the globe. Its products have been deployed in some of the most challenging geological conditions, from high-alpine tunnels to deep-sea ports.
The introduction of the GFRP Dowel Bar underscores SupAnchor’s dedication to research and development, addressing the evolving needs of civil engineers who demand materials that perform flawlessly for a century or more. By combining advanced polymer science with precision manufacturing, SupAnchor delivers a product that not only meets but exceeds the rigorous standards of modern construction.
As infrastructure investments surge worldwide, the demand for reliable, corrosion-free load transfer devices will only grow. SupAnchor’s GFRP Dowel Bar is poised to become a standard specification for durable concrete pavements and critical construction joints, ensuring that tomorrow’s infrastructure stands strong for generations.

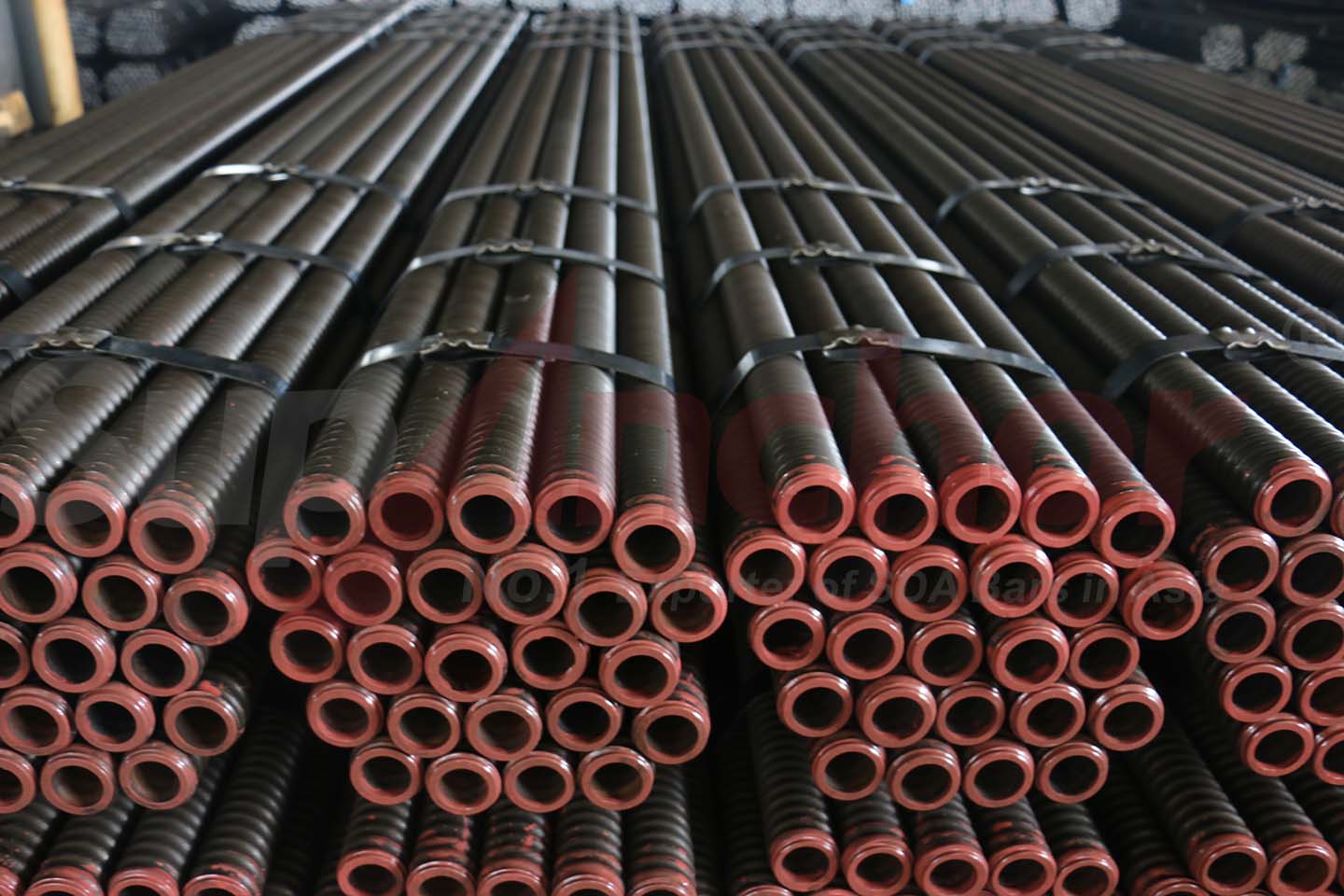

A major infrastructure project in mountainous terrain uses SupAnchor's self drilling anchor system to stabilize a critical slope, combining drilling and grouting in one pass for rapid, reliable geotechnical reinforcement.
