A major infrastructure project in the European Alps has successfully deployed SupAnchor's self drilling anchor system to address severe geotechnical challenges during the widening of a critical mountain highway. The project, located in a region known for its fractured rock formations and unstable slopes, required a robust ground stabilization anchor system capable of withstanding high loads while adapting to difficult drilling conditions. SupAnchor, a leading manufacturer of geotechnical reinforcement systems, supplied its innovative hollow bar anchor technology to ensure the long-term stability of retaining walls and cut slopes along the new alignment.
The highway expansion, part of a broader effort to improve transportation connectivity across the mountainous region, involved cutting through steep terrain with highly variable geology. Engineers encountered alternating layers of weathered rock, loose overburden, and flowing groundwater, which made conventional anchoring methods inefficient and risky. The project team turned to SupAnchor's self drilling anchor bolt solution, which combines drilling, grouting, and anchoring in a single operation, significantly reducing installation time and improving bond quality in difficult ground conditions.
"The site conditions were among the most challenging we have faced in recent years," said the project's geotechnical lead. "We needed a system that could handle both the tough drilling environment and provide reliable long-term support. SupAnchor's hollow bar anchor proved to be the ideal choice."
The self drilling anchor system supplied by SupAnchor for this project featured a range of configurations tailored to the specific rock mass conditions. Key parameters included anchor bars with diameters of 32 mm and 38 mm, tensile load capacities of 280 kN and 500 kN respectively, and installation lengths up to 12 meters. For sections with high groundwater and potential corrosion risk, double corrosion protection (DCP) was applied using a corrugated sheath and cement grout, ensuring a service life exceeding 100 years.
| Parameter | Specification |
|---|---|
| Anchor bar diameter | 32 mm / 38 mm |
| Tensile load capacity | 280 kN (32 mm) / 500 kN (38 mm) |
| Typical installation length | 6 m – 12 m |
| Corrosion protection | Double corrosion protection (DCP) with corrugated sheath and cement grout |
| Thread type | R32 / R38 continuous thread |

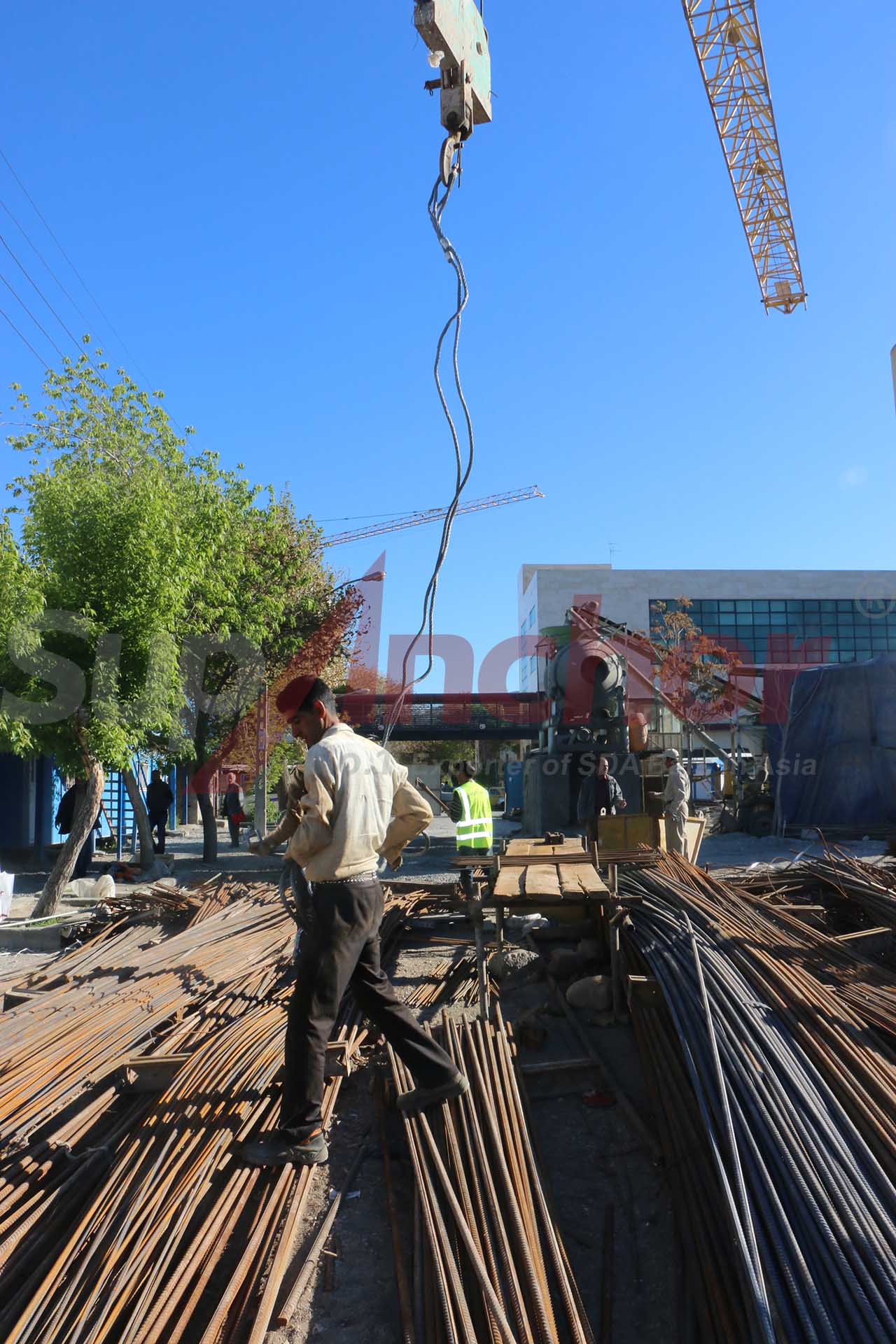

The on-site installation utilized SupAnchor's drill-and-grout bolt technology, which employs a sacrificial drill bit attached to the hollow bar. As the bar is drilled into the ground, grout is simultaneously injected through the hollow core, filling the annular space and creating a strong mechanical interlock with the surrounding soil or rock. This method eliminates the need for casing in collapsing soils and ensures that the full length of the anchor is bonded, even in fractured rock conditions.
According to the site supervisor, the self drilling bolt for civil engineering applications provided exceptional adaptability. "We could adjust drilling parameters on the fly to cope with sudden changes from soft clay to hard rock without changing equipment," he noted. "This flexibility saved us weeks of schedule and reduced the need for multiple anchoring systems."
The successful application of SupAnchor's ground stabilization anchor system on this highway project underscores the growing importance of advanced geotechnical solutions in modern infrastructure development. With increasing urbanization and the need to upgrade aging transportation networks, projects in mountainous and geologically complex areas are becoming more common. Self drilling anchor systems are increasingly specified because they offer a combination of speed, reliability, and adaptability that traditional rock bolts or soil nails cannot match.
In the mining sector, rock bolt for underground mining applications also benefit from the same hollow bar technology, where quick installation and high load capacity are critical for safety and productivity. Similarly, the use of micropile hollow bar anchor systems is expanding in foundation engineering, particularly for underpinning and slope stabilization in constrained urban environments.
The global market for geotechnical reinforcement systems is projected to grow steadily, driven by investments in transportation, energy, and water infrastructure. Projects such as this highway expansion demonstrate how innovative anchoring technologies can mitigate geological risks and extend the service life of critical assets.
SupAnchor, headquartered in China with a global distribution network, has established itself as a leading soil nail system manufacturer and ground anchor bolt factory. The company's products are manufactured under ISO 9001 and ISO 14001 certified quality management systems, ensuring consistent performance and compliance with international standards. With a portfolio of projects spanning Europe, North America, Asia, and Australia, SupAnchor has built a reputation for delivering reliable anchoring solutions for the most demanding applications.
"Our mission is to provide professional, innovative, and collaborative solutions to geotechnical challenges," said a SupAnchor spokesperson. "This project is another example of how our SDA bolt factory direct supply model allows us to deliver custom-engineered anchoring systems quickly and cost-effectively to any site worldwide."
As an anchor bolt system for geotechnical engineering, SupAnchor's self drilling anchors are designed for ease of use, with continuous threads that allow for couplers and accessories to be added without machining. This modularity reduces inventory complexity and enables contractors to adapt to changing site conditions with minimal downtime.
The highway expansion project is now nearing completion, with the installed self drilling anchor for retaining walls providing robust support to the new structures. The successful deployment highlights the critical role of advanced geotechnical reinforcement in delivering safe and sustainable infrastructure, and underscores SupAnchor's position as a trusted partner for complex ground engineering projects.
