In a demanding infrastructure project located in a region characterized by highly fractured rock and unstable soil conditions, the deployment of SupAnchor's innovative self drilling anchor system has proven instrumental in ensuring ground stability and project continuity. The project, which involves the construction of a critical retaining wall and foundation support for a transportation corridor, faced significant geotechnical challenges including variable strata, groundwater ingress, and the need for rapid installation with minimal environmental disturbance. SupAnchor, a leading soil nail system manufacturer and ground anchor bolt factory, provided a comprehensive geotechnical reinforcement system tailored to the site's specific requirements.

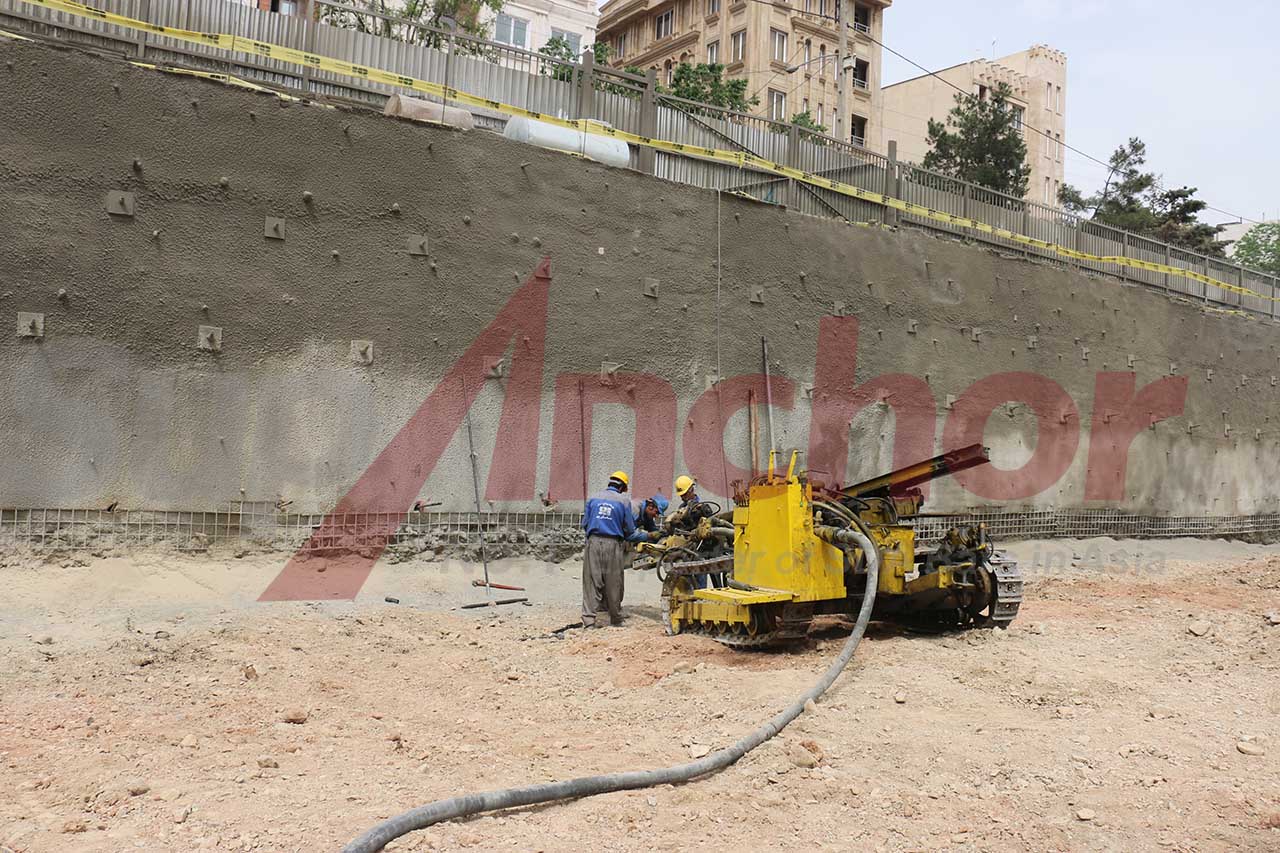

The construction site, as captured in the on-site image, illustrates the harsh conditions where conventional drilling and anchoring methods would have been inefficient or even impossible. The self drilling anchor bolt, a type of hollow bar anchor, combines drilling, grouting, and anchoring in one operation, eliminating the need for casing and reducing the risk of borehole collapse. This drill-and-grout bolt technology significantly speeds up installation while ensuring superior load-bearing capacity. The project's success underscores the growing reliance on advanced ground stabilization anchor systems for complex civil engineering works.
The project site is situated in a mountainous area with a history of slope instability, where the existing ground comprises loose overburden, weathered rock, and frequent boulders. The design called for a permanent retaining structure capable of withstanding both static and dynamic loads, including seismic considerations. Initial geotechnical investigations revealed that the use of traditional driven piles or cast-in-place anchors would be problematic due to the difficulty of drilling through boulders and maintaining hole stability in loose zones. Furthermore, the presence of groundwater under pressure posed a risk of soil piping and reduced grout quality.
To address these issues, the engineering team selected SupAnchor's self drilling anchor for retaining walls, which is specifically engineered for difficult ground conditions. The system uses a continuously threaded hollow bar that serves as both the drill rod and the tendon. During installation, a sacrificial drill bit attached to the bar advances through the ground while grout is simultaneously pumped through the hollow core. This process results in a fully grouted anchor with high skin friction along the entire bond length, even in fractured rock and cohesionless soils. The ability to drill and grout in one pass minimizes disturbance and ensures immediate load transfer.
SupAnchor's role extended beyond product supply; the company's technical team collaborated closely with the contractor to optimize anchor lengths, spacing, and inclination based on real-time drilling data. This collaborative approach reflects SupAnchor's commitment to delivering tailored solutions and reinforces its reputation as a reliable anchor bolt system for geotechnical engineering.
The self drilling anchor system deployed on this project featured several key technical parameters that addressed the site-specific challenges. The following table summarizes the primary specifications:
| Parameter | Specification |
|---|---|
| Anchor Bar Diameter | 32 mm, 40 mm, 52 mm (as per design) |
| Anchor Length | 6 m to 18 m, customized |
| Tensile Strength (Ultimate) | >= 660 kN for 32 mm; >= 1000 kN for 40 mm; >= 1600 kN for 52 mm |
| Yield Strength | >= 550 MPa |
| Corrosion Protection | Hot-dip galvanized (>=85 µm) with optional epoxy coating or double corrosion protection (DCP) |
| Thread Type | Rope thread (continuous) |
| Drill Bit | Carbide cross-cut or button bit, replaceable |
| Grout | Cement-based with W/C ratio 0.4–0.5, compressive strength >= 30 MPa |
These parameters were critical in overcoming the site's challenges. The high tensile strength allowed the anchors to carry the required design loads with an adequate safety factor, while the continuous thread provided flexibility in coupling and length adjustment. The hot-dip galvanized corrosion protection ensured long-term durability in the aggressive environment, particularly where groundwater contained sulfates. The use of a replaceable drill bit enabled efficient penetration through boulders and hard rock, reducing downtime.
During installation, the self drilling anchor bolt performed exceptionally well. The simultaneous drilling and grouting process created a rough grout-rock interface that enhanced bond strength, and the ability to inject grout under pressure filled voids and fractures, improving the overall ground mass. The contractor reported installation rates up to 50% faster than conventional methods, with minimal spoil and no requirement for temporary casing. This efficiency directly contributed to the project staying on schedule. Additionally, the hollow bar anchor's continuous thread allowed for easy coupling of multiple sections, enabling the anchors to reach depths of up to 18 meters without compromising integrity.
The on-site image attests to the orderly and safe working environment enabled by the system. Workers are seen operating compact drilling rigs, which are ideal for slope work, while the absence of heavy casing equipment reduces the risk of accidents. The self drilling anchor for retaining walls proved equally effective in both vertical and inclined installations, accommodating the design's varying anchor orientations.
The installation process for the self drilling anchor system follows a streamlined sequence that maximizes efficiency and quality. First, the anchor position is surveyed and the drilling rig is aligned according to design inclination. The hollow bar anchor, fitted with the appropriate drill bit, is then rotated and advanced into the ground while grout is pumped through the hollow core at a controlled pressure. The grout acts as a drilling fluid, cooling the bit and carrying cuttings to the surface, while also filling the annular space around the bar. Once the design depth is reached, the rotation is stopped and grout injection continues for a short period to ensure complete filling. The bar remains in place as the permanent tendon, and after the grout cures, a bearing plate and nut are installed to lock off the anchor at the required load.
SupAnchor's commitment to quality is evident in every stage of manufacturing and application. Each self drilling anchor bolt undergoes rigorous testing for tensile strength, elongation, and thread dimensional accuracy before leaving the factory. The company's ISO 9001 quality management system ensures traceability and consistency, while independent third-party inspections provide additional assurance. On this project, pull-out tests were conducted on sacrificial anchors to verify bond strength, and all results exceeded the design requirements, confirming the reliability of the geotechnical reinforcement system.
The successful application of SupAnchor's self drilling anchor system in this project reflects broader global trends in geotechnical engineering and infrastructure development. As urbanization accelerates and transportation networks expand into challenging terrains, the demand for reliable ground stabilization anchor systems continues to grow. Projects such as highway cuttings, bridge abutments, and slope remediation increasingly require solutions that are not only technically robust but also environmentally friendly and cost-effective.
The self drilling anchor bolt, as a type of micropile hollow bar anchor, offers distinct advantages over traditional methods. Its ability to be installed in restricted access areas, such as on steep slopes or near existing structures, makes it a preferred choice for retrofitting and repair works. Moreover, the drill-and-grout technique minimizes vibration and noise, which is particularly important in urban environments. These attributes align with the industry's push toward sustainable construction practices and reduced carbon footprint. The self drilling bolt for civil engineering is increasingly specified in projects ranging from railway electrification to foundation underpinning, highlighting its versatility.
SupAnchor, as a recognized soil nail system manufacturer and ground anchor bolt factory, is at the forefront of this evolution. The company's products, including the self drilling anchor for retaining walls and rock bolt for underground mining, are utilized in projects across Europe, North America, and Asia. The consistent performance of these systems in diverse geological conditions has established SupAnchor as a trusted partner for contractors and consultants worldwide. The deployment described here is just one example of how advanced geotechnical reinforcement systems are enabling safer and more efficient infrastructure development.
SupAnchor's success in this project can be attributed to its core values of professionalism, innovation, and collaboration. The company's commitment to quality is evidenced by its ISO 9001 quality management system certification and compliance with international standards such as EN 14490 and ASTM. Every self drilling anchor bolt produced in SupAnchor's manufacturing facility undergoes rigorous testing to ensure mechanical properties, thread accuracy, and corrosion resistance meet the highest benchmarks.
Innovation is deeply embedded in SupAnchor's product development. The engineering team continuously refines the design of the hollow bar anchor and drill-and-grout bolt to enhance performance in difficult soils. Recent advancements include the introduction of high-strength steel grades and improved thread geometries that increase load transfer efficiency. Furthermore, SupAnchor's SDA bolt factory direct supply model allows clients to benefit from competitive pricing without compromising on quality, making advanced anchoring technology more accessible.
Collaboration with project stakeholders is another pillar of SupAnchor's approach. From initial design consultation to on-site technical support, the company's experts work side-by-side with engineers and contractors to optimize anchor solutions. This hands-on involvement ensures that the self drilling anchor system is applied correctly, maximizing both safety and cost-effectiveness. The project highlighted in this article exemplifies how SupAnchor's collaborative ethos translates into tangible results: a stable structure, a satisfied client, and a safer community.
Furthermore, SupAnchor is actively engaged in research and development to address future challenges in geotechnical engineering. The company's ongoing investments in new materials, such as corrosion-resistant alloys and high-performance grouts, aim to extend the service life of anchor systems in aggressive environments. As infrastructure ages and climate change intensifies geohazards, the need for durable and adaptable ground stabilization anchor systems will only increase. SupAnchor is well-positioned to meet these demands, offering a full range of solutions from micropile hollow bar anchor to complex anchor bolt system for geotechnical engineering.
In conclusion, the successful deployment of SupAnchor's self drilling anchor system in this challenging project underscores the company's technical expertise and product reliability. The combination of innovative design, stringent quality control, and collaborative project management delivered a solution that not only overcame the site's difficulties but also contributed to the overall success of the infrastructure development. As the construction industry continues to evolve, SupAnchor remains dedicated to advancing geotechnical reinforcement systems that build a safer and more resilient world.
