A large-scale infrastructure project, currently underway in a region known for its complex geological formations, has achieved significant milestones by utilizing SupAnchor's advanced self drilling anchor system. The project, which involves the construction of a new transportation corridor through mountainous terrain, faced severe geotechnical challenges including fractured rock masses, high groundwater pressure, and the presence of loose overburden. SupAnchor's innovative hollow bar anchor technology provided a reliable and efficient ground reinforcement solution, ensuring the safety and progress of the works.

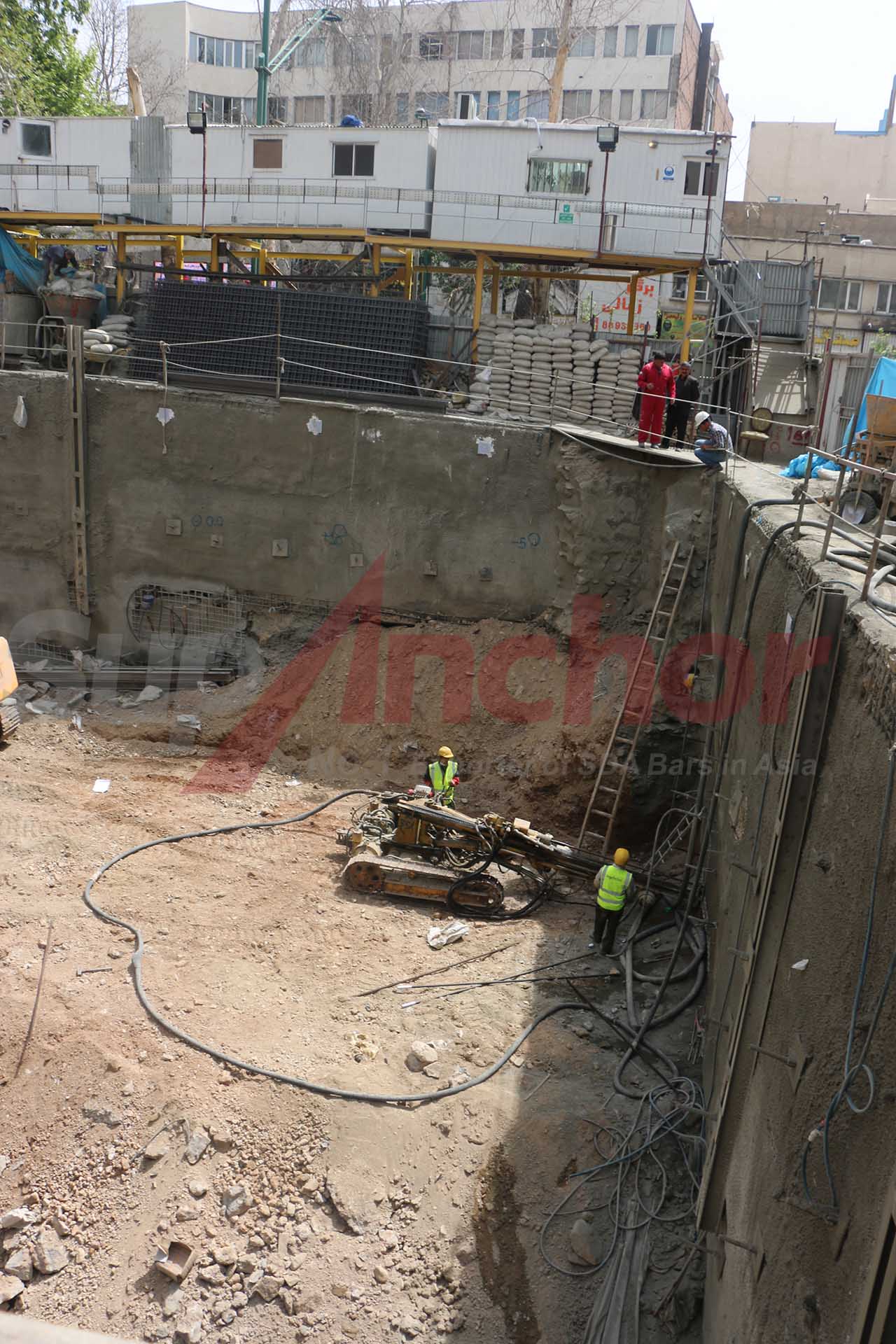

The construction site image captures the dynamic environment where SupAnchor's self drilling anchor bolts are being installed. Workers are seen operating drilling equipment to advance the hollow bars into the ground, followed by simultaneous grouting under pressure. This drill-and-grout bolt method eliminates the need for pre-drilling and casing, significantly reducing installation time and ensuring excellent load transfer to the surrounding soil or rock.
The infrastructure project, part of a national initiative to improve regional connectivity, includes the construction of tunnels, retaining walls, and slope stabilization measures along a 15-kilometer stretch of mountainous highway. The geology along the alignment is highly variable, comprising weathered schist, fractured granite, and alluvial deposits with high water tables. Traditional anchoring methods posed risks of borehole collapse and inadequate grout coverage, necessitating a robust geotechnical reinforcement system capable of adapting to unpredictable ground conditions.
SupAnchor was selected as the ground stabilization anchor system supplier based on its proven track record in similar challenging environments. The company's self drilling anchor system, also known as a hollow bar anchor, was deployed for temporary and permanent support works, including soil nailing, micropiles, and rock bolts. The system's ability to drill and grout in a single pass minimized disturbance to the ground and accelerated the construction schedule.
The on-site application of SupAnchor's self drilling anchor system highlights its versatility and performance. The system consists of a hollow steel bar with a sacrificial drill bit, which is rotated and advanced into the ground using a standard drill rig. As the bar is installed, cement grout is pumped through the hollow core, filling the annular space and bonding the bar to the surrounding strata. This continuous process ensures that the anchor achieves full load capacity immediately after installation, even in loose or collapsing soils.
| Parameter | Typical Specification |
|---|---|
| Diameter | 25 – 200 mm |
| Length | Up to 12 m (customizable) |
| Tensile Strength | Up to 1000 kN |
| Corrosion Protection | Hot-dip galvanizing, epoxy coating, double corrosion protection (DCP) |
The high tensile strength of up to 1000 kN allows these anchors to serve as micropile hollow bar anchors for deep foundations or as self drilling anchor for retaining walls where large lateral earth pressures must be resisted. The availability of various corrosion protection options, including hot-dip galvanizing and double corrosion protection (DCP), ensures long-term durability in aggressive environments, such as those with high chloride or sulfate content.
Prior to full-scale installation, pull-out tests were conducted to verify the load capacity of the self drilling anchor bolts. The results confirmed that the anchors achieved the required design load with minimal displacement, demonstrating the effectiveness of the drill-and-grout method. The single-pass installation method also reduces spoil generation and grout wastage, aligning with sustainable construction practices.
SupAnchor's self drilling anchor bolt technology represents a significant advancement in geotechnical engineering. Unlike conventional rock bolts or soil nails, the hollow bar design permits simultaneous drilling and grouting, which is particularly advantageous in unstable ground where boreholes would otherwise collapse. The system is suitable for a wide range of applications, including rock bolt for underground mining, slope stabilization, and tunnel support. The self drilling bolt for civil engineering projects reduces the need for multiple equipment setups, lowers labor costs, and enhances safety by minimizing open borehole time.
Key advantages of the SupAnchor self drilling anchor system include:
These features make the system ideal for projects with tight schedules and demanding geotechnical conditions, such as tunneling, deep excavations, and landslide remediation.
The successful deployment of SupAnchor's self drilling anchor system on this infrastructure project reflects broader global trends in geotechnical engineering. As urbanization accelerates and transportation networks expand into challenging terrains, the demand for reliable anchor bolt system for geotechnical engineering has surged. Governments and private developers are increasingly prioritizing ground stabilization to ensure the safety and longevity of structures. SupAnchor, as a leading soil nail system manufacturer and ground anchor bolt factory, is well-positioned to meet this demand with its high-quality products and technical expertise.
The use of hollow bar anchors and drill-and-grout bolts is becoming standard practice in Europe and North America for slope stabilization, retaining wall construction, and tunnel support. These systems offer superior performance in difficult ground conditions, reduce environmental impact, and lower overall project costs. SupAnchor's products have been used in numerous international projects, earning a reputation for reliability and innovation.
SupAnchor has established itself as a leader in the geotechnical reinforcement industry through a commitment to innovation, quality, and collaboration. The company's manufacturing facilities are ISO 9001 and ISO 14001 certified, ensuring consistent product quality and environmental responsibility. As an SDA bolt factory direct supply, SupAnchor offers competitive pricing and rapid delivery to project sites worldwide. The company's engineering team works closely with contractors and consultants to provide customized solutions that address specific project challenges.
The product image showcases the precision engineering of SupAnchor's self drilling anchor bolt. The threaded hollow bar, sacrificial drill bit, and coupling system are designed for seamless integration, allowing for extension of anchor length as needed. This modular design enhances the system's adaptability to varying ground conditions and design requirements.
SupAnchor's philosophy of "Professional, Innovative, Collaborative" is embodied in every project. By delivering high-performance self drilling anchor systems and comprehensive technical support, the company continues to drive advancements in geotechnical engineering, ensuring safer and more efficient infrastructure development worldwide.
