In the demanding world of underground construction and mining, every minute saved in ground support installation can translate into significant cost reductions and enhanced safety. When a roadheader or drill jumbo advances through variable rock mass, the ability to secure the newly exposed roof and walls immediately is paramount. Traditional grouted rock bolts, while reliable, require a curing period before they can carry load—a delay that can expose workers and equipment to the risk of rock falls. SupAnchor, a top-tier Chinese manufacturer of self drilling anchor systems, has engineered the SupHulk® friction rock bolt to eliminate this waiting time. As part of its broader line of self drilling anchor bolts and geotechnical reinforcement systems, the SupHulk® Premium line (PM) offers a unique combination of high yield load, excellent deformability, and instant load-bearing capacity.
The SupHulk® bolt is a swell friction bolt that uses high-pressure water to expand a folded steel tube against the borehole wall. This full-length contact generates tremendous frictional resistance, locking the bolt in place and providing column support from the collar to the toe. Unlike point-anchored systems, the SupHulk® distributes the load evenly along the entire bolt, which significantly improves the stability of fractured rock masses. Because the bolt can be loaded immediately after inflation, it is ideally suited for high-advance mining operations and tunneling projects where cycle times are critical.
Geological surprises are the norm in underground works. Weak, sheared, or swelling ground can exert significant deformations on support systems, and slow-reacting bolts may fail before they ever become effective. The SupHulk® PM series addresses this by offering a minimum elongation of 10% (A100mm) across all models, allowing the bolt to yield under high stress without fracturing. This ductility, combined with immediate load-bearing, means that rock movements are absorbed as they occur, preserving the integrity of the support system.
Installation is streamlined: a borehole is drilled with standard rock drilling equipment, the folded bolt is inserted, and a specially designed inflation adapter applies high-pressure water until the preset pressure is reached (300 bar for PM12 and PM24, 240 bar for PM16). The pump’s automatic shutoff guarantees uniform installation quality, and because no grout or resin is needed, the process is clean and instantaneous. Pull tests can be performed immediately to verify the bolt’s capacity, giving engineers confidence in the support design.
Engineers selecting ground reinforcement systems must balance load capacity, deformability, installation speed, and adaptability to borehole irregularities. The SupHulk® PM series comes in three models—PM12, PM16, and PM24—each engineered for specific rock conditions and stress levels. The table below summarizes key technical parameters:
| Parameter | PM12 | PM16 | PM24 |
|---|---|---|---|
| Minimum Breaking Load (kN) | 110 | 160 | 240 |
| Minimum Yield Load (kN) | 100 | 130 | 200 |
| Minimum Elongation (A100mm) (%) | 10 | 10 | 10 |
| Inflation Water Pressure (bar) | 300 | 240 | 300 |
| Required Hole Diameter (mm) | 32–39 | 43–52 | 43–52 |
| Profile Diameter (mm) | 27 | 36 | 36 |
| Weight at 2.4 m Length (kg) | 4.90 | 6.70 | 9.50 |
The PM12, with a minimal breaking load of 110 kN, is ideal for low-stress mining environments and smaller-diameter boreholes (32–39 mm). The PM16 and PM24, designed for 43–52 mm holes, offer higher capacities of 160 kN and 240 kN respectively, making them suitable for more challenging conditions such as deep tunnels and caverns. The PM24’s 200 kN yield load is particularly valuable in squeezing ground where high static loads are expected.
Weights range from 4.90 kg for a 2.4 m PM12 bolt to 9.50 kg for the same length in PM24, allowing for manual handling where required. The tube thickness (2 mm for PM12/PM16, 3 mm for PM24) is optimized to provide the necessary expansion pressure without adding unnecessary weight. The upper bushing diameters (28–38 mm) ensure a tight fit with the inflation adapter and a secure bearing surface against the rock face.
Key advantages of the SupHulk® friction bolt include:
The versatility of the SupHulk® bolt is one of its strongest selling points. In underground mining, it is deployed as systematic roof bolting and hanging wall support. Its instant load-bearing means that mining crews can advance faster, with the bolt immediately controlling rock strata separation. In tunnels excavated by drill-and-blast or mechanized methods, the SupHulk® serves as a primary pattern bolt, providing radial support that adapts to the excavation contour. The bolt's ability to bridge small gaps and adapt to borehole irregularities is especially beneficial in blocky ground, where the full-length friction ensures that even a partially inflated length contributes significant holding force—a 50 cm inflated section can generate 100 kN of friction.
For civil engineering projects such as hydropower underground powerhouses or caverns, the SupHulk® PM24 offers the high capacity needed to stabilize large spans. In metropolitan metro tunnels, the PM16 strikes a balance between strength and easy handling, reducing installation time in the confined space of a TBM backup system. The system also excels in water-bearing formations because the inflation water does not adversely affect the rock mass, unlike grouting which may wash out or require water control.
As infrastructure investment grows worldwide, the demand for reliable geotechnical reinforcement systems continues to rise. Major megaprojects such as high-speed rail tunnels through the Alps, urban metro expansions in crowded cities, and deep-level mines in South Africa all require support solutions that are fast to install and robust in operation. The SupHulk® friction rock bolt aligns perfectly with these requirements, offering a cost-effective alternative to traditional grouted bolts and cable bolts in a wide range of ground conditions. Its immediate load-bearing capability translates into faster construction cycles, lower labor costs, and reduced equipment downtime—all key metrics for project profitability. Mining operations benefit from higher advance rates, while tunneling contractors appreciate the elimination of grouting steps and the associated logistical complexities.
Beyond immediate gains, the SupHulk® system contributes to long-term safety. The full-length anchorage provides continuous support even if local rock spalling occurs, and the bolt’s deformability prevents sudden brittle failure. This reliability reduces the frequency of rehabilitation work, lowering the life-cycle cost of underground infrastructures.

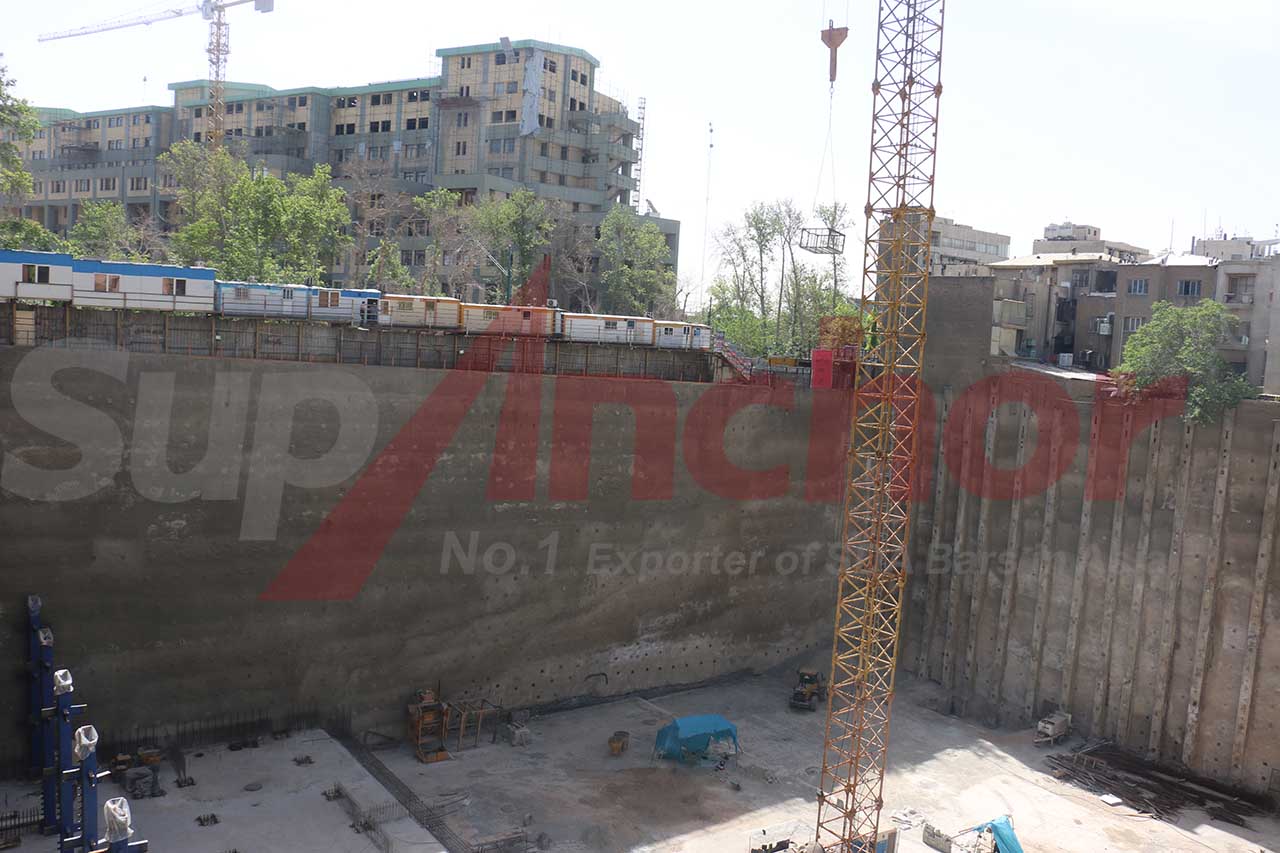

SupAnchor’s expertise extends across the full spectrum of ground anchoring technologies. In addition to the SupHulk® friction bolt, the company manufactures hollow bar anchors, drill-and-grout bolts, and soil nail systems, making it a comprehensive provider of geotechnical reinforcement systems. As a recognized soil nail system manufacturer and ground anchor bolt factory, SupAnchor has supplied products to over 50 countries, meeting the strict standards of EN, ASTM, and other codes. With ISO-certified facilities and a dedicated R&D team, SupAnchor continuously refines its products to meet the evolving demands of the global market.
The SupHulk® PM series is backed by rigorous testing and a proven track record in projects from Asian mines to European tunnels. SupAnchor’s collaborative approach means that engineers and contractors receive not just a product, but a partner in developing optimized support designs. By choosing SupAnchor, project stakeholders invest in a professional, innovative, and safety-driven solution that upholds the highest standards of quality and performance.
