A critical highway expansion project through the Alpine region has adopted an innovative self drilling anchor system from SupAnchor to address challenging geological conditions. The project, spanning 12 kilometers of mountainous terrain, involves widening a two-lane road to four lanes while traversing steep slopes composed of fractured rock and loose colluvial soils. Following a series of rainfall-induced slope failures in the area, engineers specified a robust geotechnical reinforcement system to ensure long-term stability and safety.

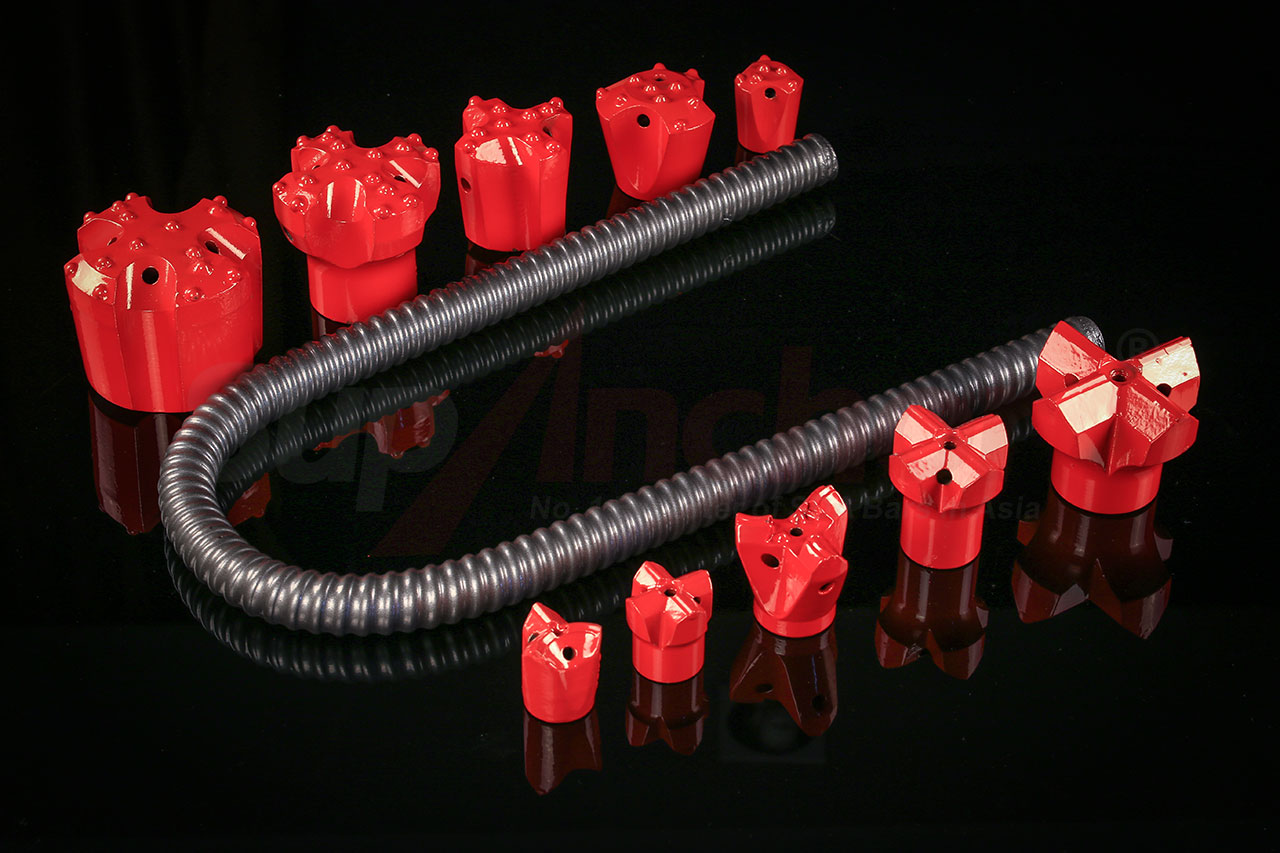

The solution chosen was SupAnchor's self drilling anchor bolt, a combined drill-and-grout system that eliminates the need for casing and simplifies installation in difficult ground. The anchors were designed as permanent ground stabilization anchor system elements, capable of resisting tensile loads up to 500 kN while accommodating ground movements. Project manager Robert Klein notes, “The speed of installation and the ability to drill through varying soil and rock layers without changing equipment have been crucial to keeping the project on schedule.”
At the construction site, crews are installing anchors at 1.5-meter spacing along the slope face, with lengths ranging from 9 to 15 meters depending on the depth of unstable material. The hollow bar anchor design allows drilling fluid or grout to be pumped through the bar simultaneously, ensuring continuous support. Key specifications include:
| Parameter | Value |
|---|---|
| Tensile Strength | 550 MPa (yield), 650 MPa (ultimate) |
| Bar Diameter | R32, R38, R51 (depending on load requirements) |
| Anchor Length | Up to 18 meters |
| Corrosion Protection | Hot-dip galvanized, epoxy coating, or double corrosion protection per EN 1537 |
| Drill Bit Type | Cross, button, or eccentric bits for various ground conditions |
The drill-and-grout bolt methodology has proven especially effective in the colluvial zones, where conventional casing systems often become stuck. By using a continuous thread bar, the micropile hollow bar anchor serves dual purposes: as a drill string during installation and as the final anchor tendon. This reduces equipment needs and allows for precise grouting under low pressure to avoid fracturing the soil.
In a recent test section, pull-out tests exceeded design requirements by 15%, validating the system's performance. The soil nail system manufacturer SupAnchor provided on-site technical support, ensuring proper installation procedures and quality control.
This project is emblematic of a global trend toward robust ground stabilization anchor system solutions in infrastructure development. With increasing extreme weather events and urbanization in mountainous regions, self drilling anchor for retaining walls and slopes are becoming standard. The use of a rock bolt for underground mining applications has also evolved to surface civil engineering, where the same technology provides immediate support in unstable excavations.
The highway project's successful application of the self drilling bolt for civil engineering demonstrates the versatility of these systems. According to industry analysts, the global anchor bolt market is projected to grow at 6% CAGR through 2030, driven by transportation infrastructure and geohazard mitigation. SupAnchor's SDA bolt factory direct supply model reduces lead times and costs, making advanced geotechnical solutions accessible to more projects.
Furthermore, the anchor bolt system for geotechnical engineering proved its value in environmentally sensitive areas: the method minimizes waste and disturbance compared to traditional cut-and-cover methods. Engineers appreciate that the ground stabilization anchor system can be installed with lighter drilling rigs, reducing the carbon footprint.
SupAnchor, recognized as a leading soil nail system manufacturer and ground anchor bolt factory, brings decades of experience in geotechnical equipment. The company holds ISO 9001 and ISO 14001 certifications, and its products have been deployed in over 30 countries for tunneling, slope stabilization, and foundation works. The Alpine highway project is one of many where SupAnchor's hollow bar anchor technology has been selected over conventional alternatives due to reliability and technical support.
“Our philosophy is ‘Professional, Innovative, Collaborative,’” said a SupAnchor spokesperson. “We work closely with engineers to customize solutions—whether it's the thread type, corrosion protection, or drill bit design. This project shows how self drilling anchor system can solve complex geotechnical challenges efficiently.”
The project team praised SupAnchor's technical documentation and training, which enabled local contractors to quickly adapt to the system. As the highway nears completion, the slope remains stable even after heavy spring rains, proving the long-term effectiveness of the geotechnical reinforcement system.
With infrastructure demands rising worldwide, the adoption of such advanced anchoring solutions is set to expand. SupAnchor continues to innovate, offering new bar diameters and corrosion-resistant coatings for the most demanding environments. The Alpine highway project stands as a testament to the value of investing in proven, high-performance ground support systems.
