Self Drilling Anchor System Stabilizes Challenging Slope for Major Infrastructure Project in Norway
Industry News
2026-04-26
864

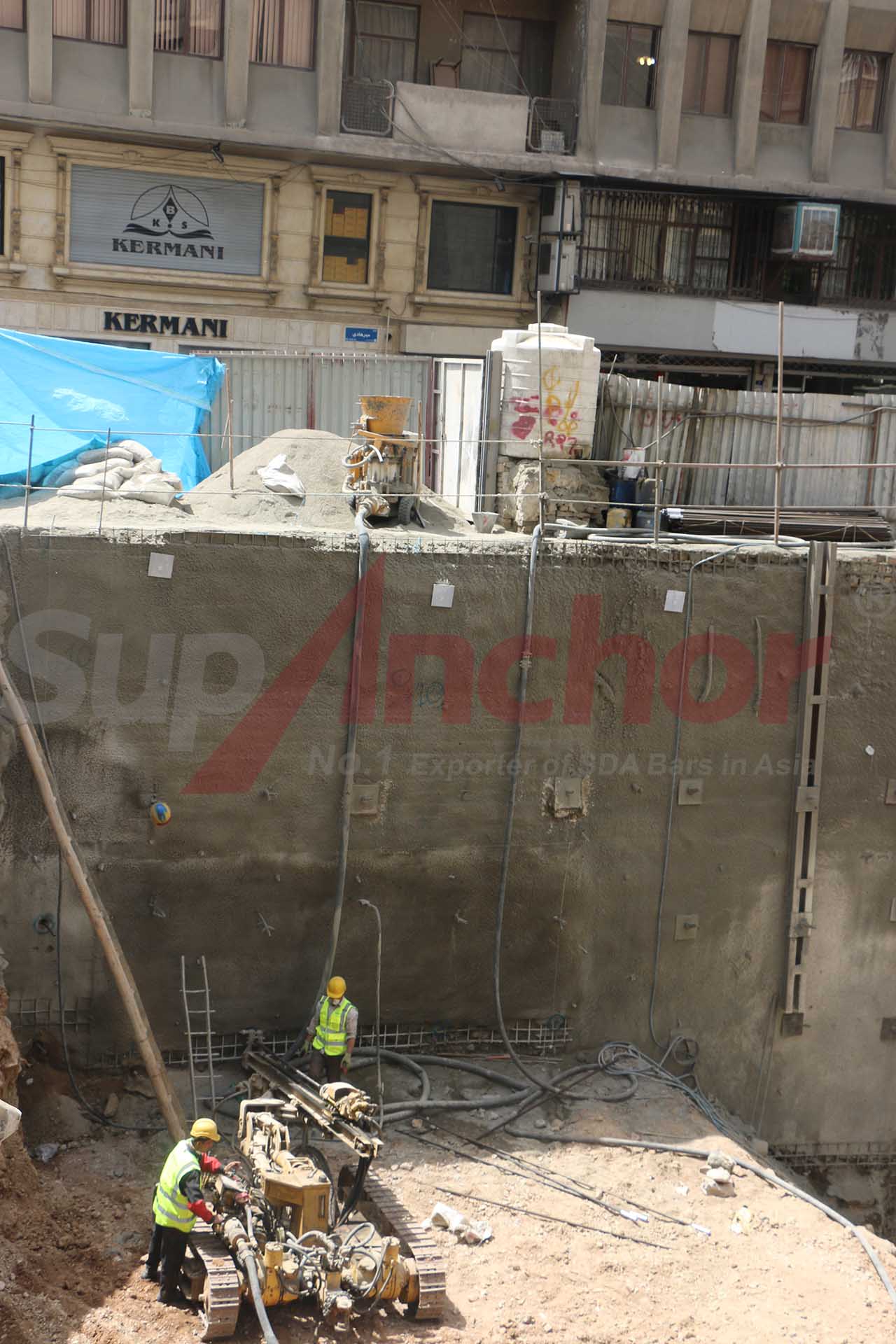

Construction site using SupAnchor self drilling anchor system

Self Drilling Anchor System Tackles Unstable Terrain in Norwegian Infrastructure Project

In a major infrastructure development project in western Norway, engineers faced daunting geological conditions characterized by fractured rock and steep slopes prone to instability. The project, which involves the expansion of a critical transportation corridor, required a reliable ground stabilization solution capable of withstanding high loads and aggressive environmental factors. After extensive evaluation, the contractor selected the self drilling anchor system from SupAnchor, a leading soil nail system manufacturer known for innovative geotechnical products.

Project Background and Challenges

The site lies in a region with a history of rockfalls and landslides, posing significant risks to both construction workers and future infrastructure. The slope, consisting of weathered gneiss with numerous fissures, required immediate reinforcement to prevent collapse during excavation. Traditional anchoring methods were deemed too slow and unreliable due to the inconsistent ground conditions. The self drilling anchor bolt technology offered a solution by combining drilling, grouting, and anchoring into a single operation, enabling efficient installation even in collapsing ground.

Technical Parameters and On-Site Application

The installation utilized SupAnchor's hollow bar anchor system, which acts as both a drill rod and a grout conduit. This dual function eliminates the need for casing, speeding up installation and reducing equipment needs. Key parameters of the anchors used include:

ParameterSpecification
Tensile Strength550 kN (yield)
Anchor Diameter30 mm (bar), 75 mm (drill bit)
Length6 to 12 m (custom per zone)
Corrosion ProtectionHot-dip galvanized + epoxy coating
Grout MixCement-based, w/c ratio 0.4

The drill-and-grout bolt system allowed the contractor to achieve high production rates, installing up to 30 anchors per day despite difficult access. The anchors were placed in a grid pattern with 2.5 m spacing, reaching depths of 10 m to penetrate stable bedrock. The ground stabilization anchor system proved effective in holding the slope during subsequent excavation works, with real-time monitoring showing minimal displacement.

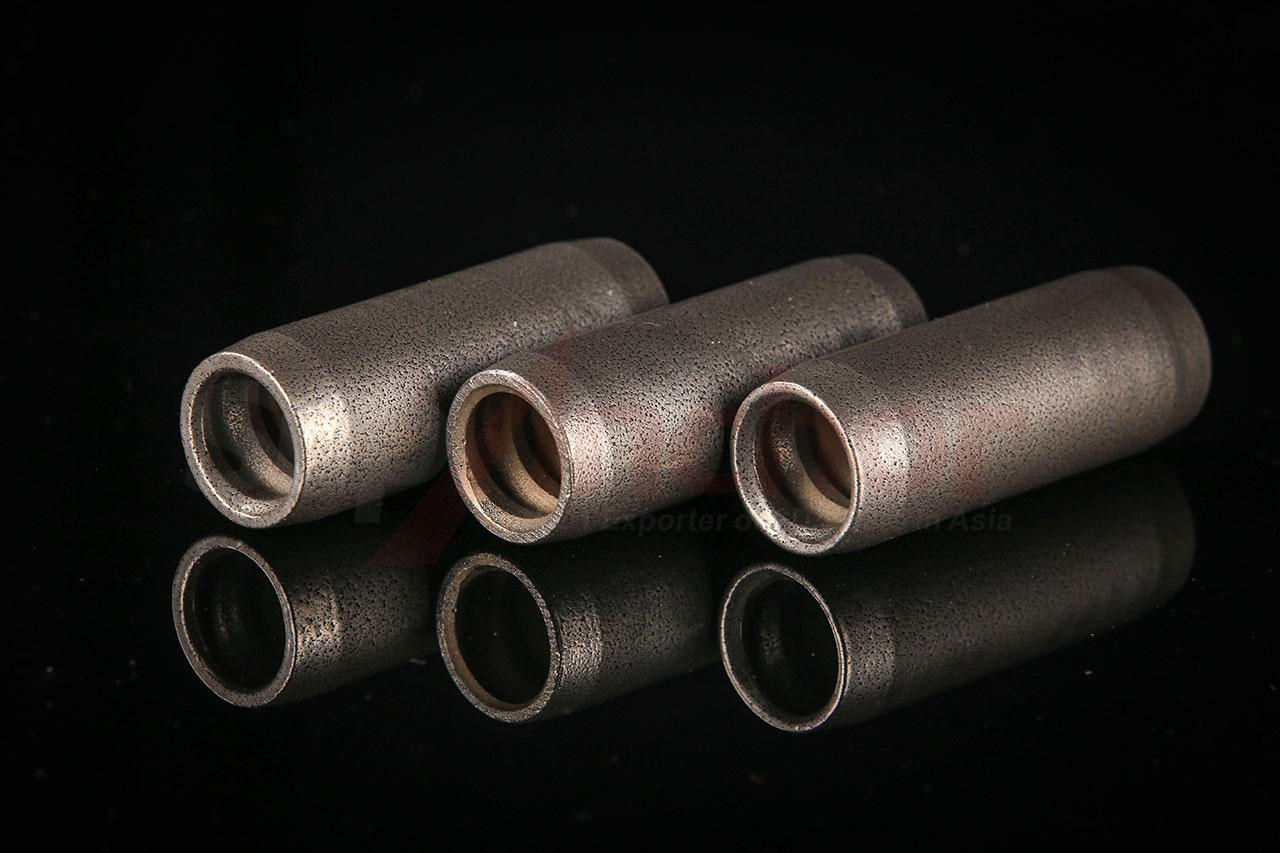

SupAnchor self drilling anchor bolt

Industry Value and Global Trends

This project exemplifies the growing demand for efficient geotechnical solutions in infrastructure development. With the rise of urbanization and the need for resilient transportation networks, self drilling anchor for retaining walls and similar systems are becoming standard in challenging terrains. The micropile hollow bar anchor technology, in particular, offers advantages in restricted spaces and environmentally sensitive areas by minimizing excavation and waste. The success of this Norwegian project reinforces the value of advanced rock bolt for underground mining and civil engineering applications.

Brand Value and Expertise

SupAnchor has established itself as a trusted ground anchor bolt factory with ISO 9001 and ISO 14001 certifications. Their SDA bolt factory direct supply model ensures quality control and competitive pricing for international projects. The company’s commitment to innovation is reflected in their continuous research into corrosion resistance and load capacity optimization. For contractors and engineers seeking a reliable anchor bolt system for geotechnical engineering, SupAnchor represents a partner that combines technical know-how with global project experience.

Conclusion

The successful implementation of the self drilling anchor system in this Norwegian infrastructure project serves as a benchmark for future works in similar geological settings. As the industry moves toward faster, safer, and more sustainable construction methods, technologies like SupAnchor’s geotechnical reinforcement system will play an increasingly vital role.
