In the rugged terrains of a recent European tunnel project, engineers faced daunting challenges: corrosive soil conditions and the need for long-term structural stability in a humid environment. SupAnchor stepped in with its innovative SupFRP® GFRP Solid Bolt, a solid-structured anchoring solution designed to replace traditional steel bolts. This product, crafted from Glassfiber Reinforced Polymer (GFRP), addresses critical issues in geotechnical engineering by providing reliable load-bearing and enhanced durability, making it a game-changer for projects requiring minimal maintenance and high safety standards.

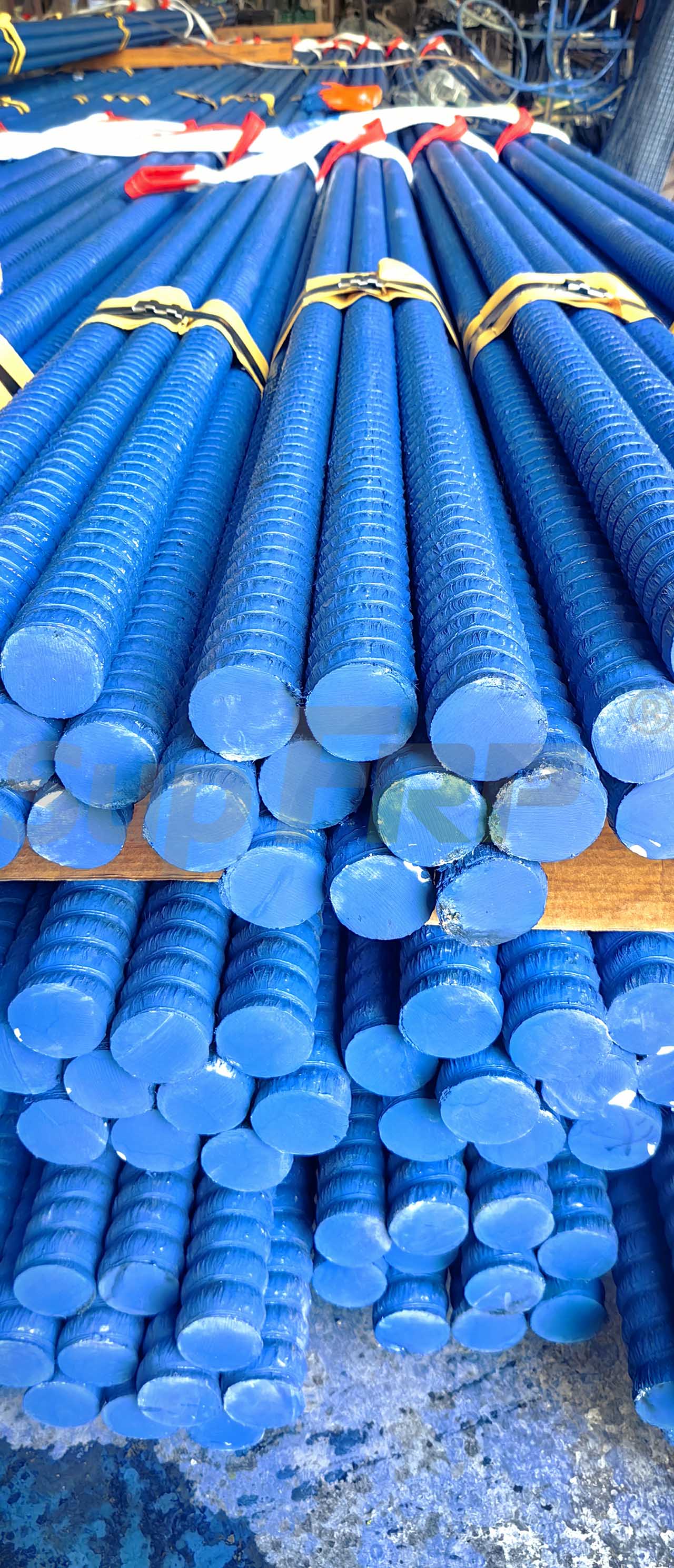

The installation process for the GFRP Solid Bolt involves straightforward on-site handling, thanks to its lightweight design and easy cuttability with common tools. This reduces labor intensity and prevents damage during operations in confined spaces like mines or tunnels. Key parameters from the product data highlight its adaptability: for instance, the guaranteed tensile load ranges from 200 kN to 500 kN across models, ensuring stable support in rock mass reinforcement. The bolt's corrosion resistance makes it suitable for saline-alkali environments, while its non-conductive properties enhance safety near power facilities. Below is a technical data table summarizing core specifications:
| Model | Outside Diameter (mm) | Guaranteed Tensile Load (kN) | Weight (kg/m) | Length Options (m) |
|---|---|---|---|---|
| S20/200 | 20 | 200 | 0.52 | 2 to 11 |
| S22/240 | 22 | 240 | 0.62 | 2 to 11 |
| S25/320 | 25 | 320 | 0.83 | 2 to 11 |
| S28/400 | 28 | 400 | 1.04 | 2 to 11 |
| S32/500 | 32 | 500 | 1.30 | 2 to 11 |
These specs directly tackle engineering challenges: the high tensile strength ensures load-bearing stability in slope stabilization, while the lightweight nature, with a density about one-fourth of steel, simplifies transportation and reduces installation costs. The waved thread structure enhances bonding with grouting materials, crucial for effective rock mass anchoring in underground tunnel projects. As part of a broader geotechnical reinforcement system, this bolt complements other solutions like the self drilling anchor system, offering a versatile approach to ground anchor bolt applications.
The GFRP Solid Bolt is engineered for diverse geotechnical scenarios, including:
This product serves as a durable alternative in both temporary and permanent support structures, enhancing the reliability of drill-and-grout bolt techniques. Its ease of use and adaptability make it a key component in modern soil nail system designs, catering to the growing demand for sustainable infrastructure solutions.
In the context of global infrastructure development, the GFRP Solid Bolt addresses critical safety and efficiency needs. The tunneling and mining industries, in particular, benefit from its corrosion resistance, which reduces maintenance frequency and extends project lifespans. According to industry reports, the adoption of advanced geotechnical reinforcement systems like this can lower operational risks and costs by up to 30% in corrosive environments. SupAnchor's innovation aligns with international safety standards, promoting geotechnical safety in projects from Europe to the Americas. As infrastructure ages and environmental challenges intensify, such products are pivotal for ensuring structural integrity in urban development and resource extraction.
SupAnchor has established itself as a leader in geotechnical solutions through continuous research and development. The company holds ISO certifications for quality management, underscoring its commitment to professional standards. Recent global projects, such as collaborations on transcontinental rail tunnels and coastal defense systems, showcase the GFRP Solid Bolt's effectiveness in real-world applications. SupAnchor's R&D efforts focus on enhancing product performance, with this bolt representing a step forward in material science for anchoring systems. The brand's message of being professional, innovative, and collaborative is embodied in its customer-centric approach, providing tailored solutions for complex engineering needs. By integrating feedback from field trials, SupAnchor ensures that its products, including the hollow bar anchor variants, meet the evolving demands of the geotechnical sector.
