As global infrastructure demands surge, particularly in challenging environments like unconsolidated or cohesive soils, the tunneling and ground engineering sectors face persistent safety and efficiency hurdles. SupAnchor® has responded with its innovative R thread self-drilling hollow anchor, a cornerstone of the self drilling anchor system that integrates drilling and grouting into a single operation. This advancement not only accelerates project timelines but also enhances stability in critical applications, from urban tunneling to slope stabilization. The system's deployment in over 39,000,000 meters of self drilling anchor bars worldwide underscores its reliability and market acceptance.
The R thread self-drilling hollow anchor operates on a "3-in-1 principle," where a ribbed hollow steel bar serves as a sacrificial drilling rod, injection tube, and reinforcing bar simultaneously. This design eliminates the need for separate casing systems, reducing labor intensity and construction time by up to 30% in comparative studies. Standardized in accordance with ISO 10208 and ISO 1720, the R thread ensures quick on-site connections, facilitating seamless integration into diverse geotechnical projects. Key technical features include multiple anti-corrosion options—hot-dip galvanizing for general use, SupCoating (HDG + Epoxy) for moderate corrosion resistance, and stainless steel for highly corrosive environments—extending service life in varied conditions from industrial areas to coastal zones.
To illustrate the product's capabilities, the following table summarizes select models from the R thread series, highlighting parameters critical for engineering adaptability:
| Model | Outside Diameter (mm) | Internal Diameter (mm) | Ultimate Load (kN) | Yield Load (kN) |
|---|---|---|---|---|
| R25N/12 | 25 | 12 | ≥200 | ≥150 |
| R32L/22 | 32 | 22 | ≥250 | ≥200 |
| R32N/20 | 32 | 20 | ≥280 | ≥230 |
| R32S/15 | 32 | 15 | ≥360 | ≥280 |
These specifications enable the hollow bar anchor to withstand high tensile forces, making it ideal for demanding scenarios such as tunnel face support or foundation reinforcement. The product's modular design allows for lengths ranging from 2 to 8 meters, with additional models like R38 and R51 series offering expanded options for heavier loads and larger diameters, catering to projects from mining to emergency geotechnical interventions.

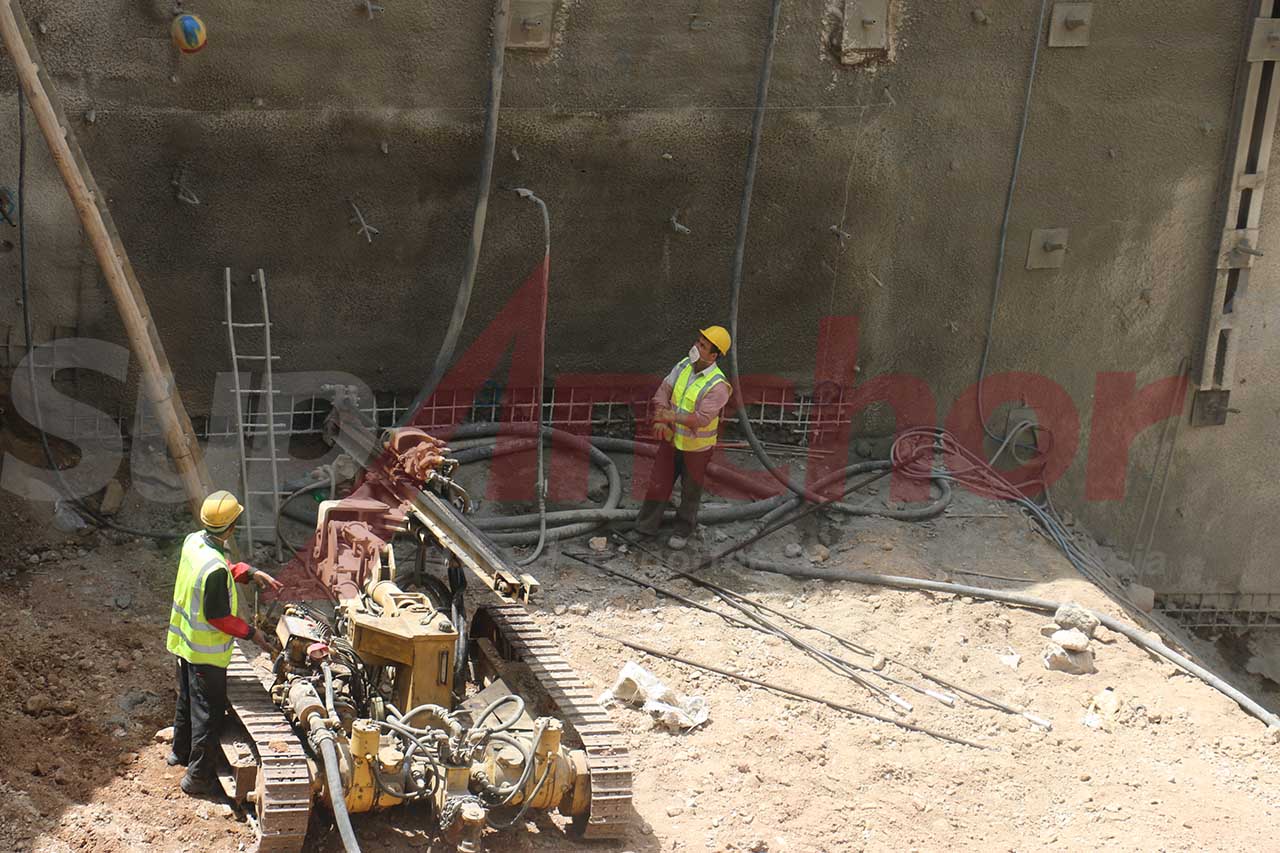

The R thread self-drilling hollow anchor is pivotal in various high-stakes environments due to its efficiency and adaptability. In tunneling engineering, it provides critical support for tunnel faces, forepoling, and surrounding rock stabilization, reducing the risk of collapses during excavation. For ground engineering, applications include slope stabilization to prevent landslides, foundation reinforcement in unstable soils, and retaining wall support in urban developments. Other geotechnical projects benefit from its rapid deployment in soft ground or temporary support scenarios, where traditional methods fall short. This versatility positions SupAnchor as a leading soil nail system manufacturer, offering solutions that prioritize safety without compromising on speed.
The adoption of SupAnchor's self drilling anchor system translates into significant economic and safety benefits for the global infrastructure sector. By streamlining construction processes, it reduces project costs and minimizes downtime, essential for large-scale initiatives like highway expansions or underground rail networks. In regions prone to geological instability, such as earthquake zones or areas with loose soil, the geotechnical reinforcement system enhances resilience, protecting communities and assets. SupAnchor's commitment to innovation is evident in its R&D efforts, which have led to ISO-certified products trusted in over 50 countries. The brand's collaborative approach with engineers and contractors ensures that solutions are tailored to specific site challenges, reinforcing its reputation as a professional and innovative ground anchor bolt factory.
Looking ahead, as urbanization and climate change intensify demand for robust infrastructure, technologies like the R thread self-drilling hollow anchor will play a crucial role in sustainable development. SupAnchor's focus on continuous improvement and customer feedback drives advancements that set new standards in the industry.
