In the face of complex geological challenges such as unconsolidated or cohesive soils, tunneling and ground engineering projects often grapple with time-consuming drilling processes and safety risks. SupAnchor, a leader in geotechnical reinforcement systems, addresses these issues with its R Thread Self-Drilling Hollow Anchor. This innovative self drilling anchor system combines drilling and grouting in one operation, significantly enhancing construction efficiency and safety on a global scale.

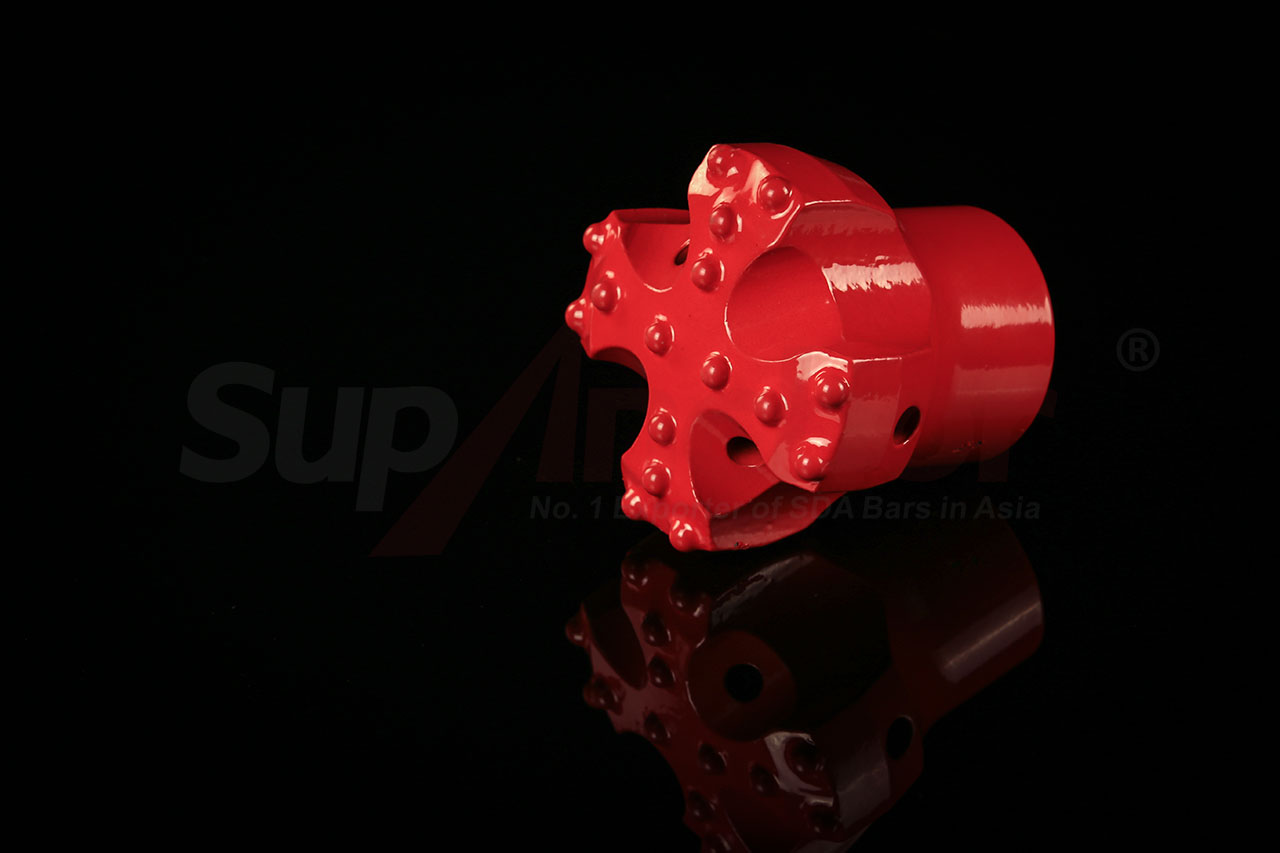

The self drilling anchor bolt from SupAnchor is designed with a ribbed hollow steel bar that functions as a sacrificial drilling rod, injection tube, and reinforcing bar, adhering to the "3-in-1 principle." This design reduces labor intensity and construction time, especially in applications requiring quick installation. The R thread is standardized according to ISO 10208 and ISO 1720, ensuring reliable connections and compatibility across projects. Key technical parameters highlight the product's adaptability and strength.
| Model | Outside Diameter (mm) | Ultimate Load (kN) | Yield Load (kN) | Anti-Corrosion Options |
|---|---|---|---|---|
| R25N/12 | 25 | ≥200 | ≥150 | Hot-dip galvanizing |
| R32S/15 | 32 | ≥360 | ≥280 | SupCoating or stainless steel |
| R38/600 | 38 | High capacity | Enhanced yield | Various options |
These specifications enable the hollow bar anchor to withstand high loads and corrosive environments, solving challenges in unstable soil conditions. For instance, the ultimate load of up to 405 kN in models like R32SS/15 ensures robust support in demanding applications, while anti-corrosion treatments like hot-dip galvanizing, SupCoating (HDG + epoxy), or stainless steel extend service life in diverse settings from dry soils to coastal areas.

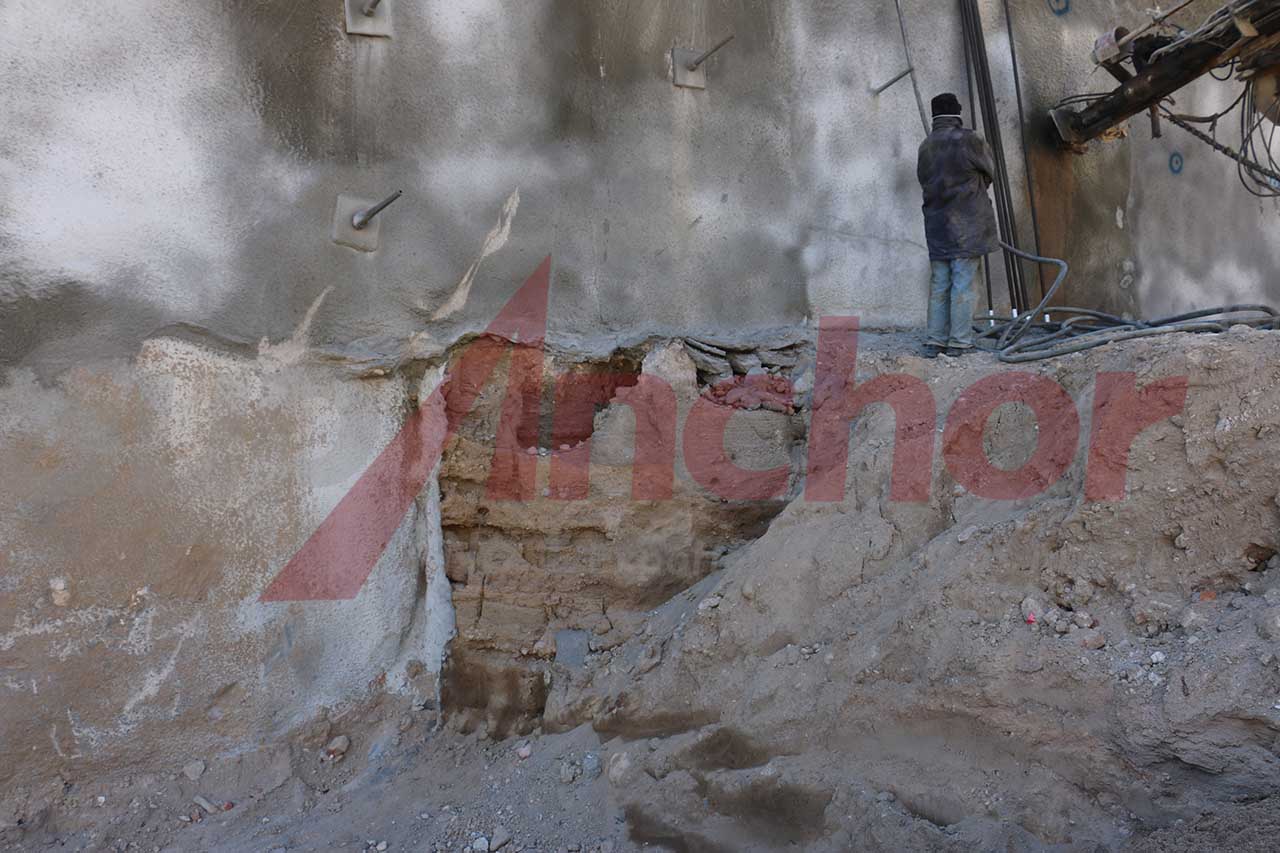

The self drilling anchor system is widely applied in critical infrastructure projects. Key scenarios include:
This versatility contributes to global infrastructure growth, reducing project timelines and enhancing safety standards in industries reliant on precise anchoring.
SupAnchor has established itself as a professional and innovative player in the geotechnical sector, with over 39,000,000 meters of self drilling anchor bars installed worldwide. This track record underscores the reliability of the R thread product, backed by ISO certifications and continuous R&D efforts. The company's collaborative approach ensures tailored solutions for diverse project needs, from small-scale reinforcements to large tunneling ventures. By focusing on innovation, such as the integration of drilling and grouting, SupAnchor drives advancements in soil nail systems and ground anchor bolt manufacturing.
In conclusion, the SupAnchor® R Thread Self-Drilling Hollow Anchor represents a significant leap in engineering technology, offering a professional, innovative, and collaborative solution for modern construction challenges. Its ability to streamline operations while ensuring durability positions it as a key asset in the evolution of safer and more efficient geotechnical projects.
